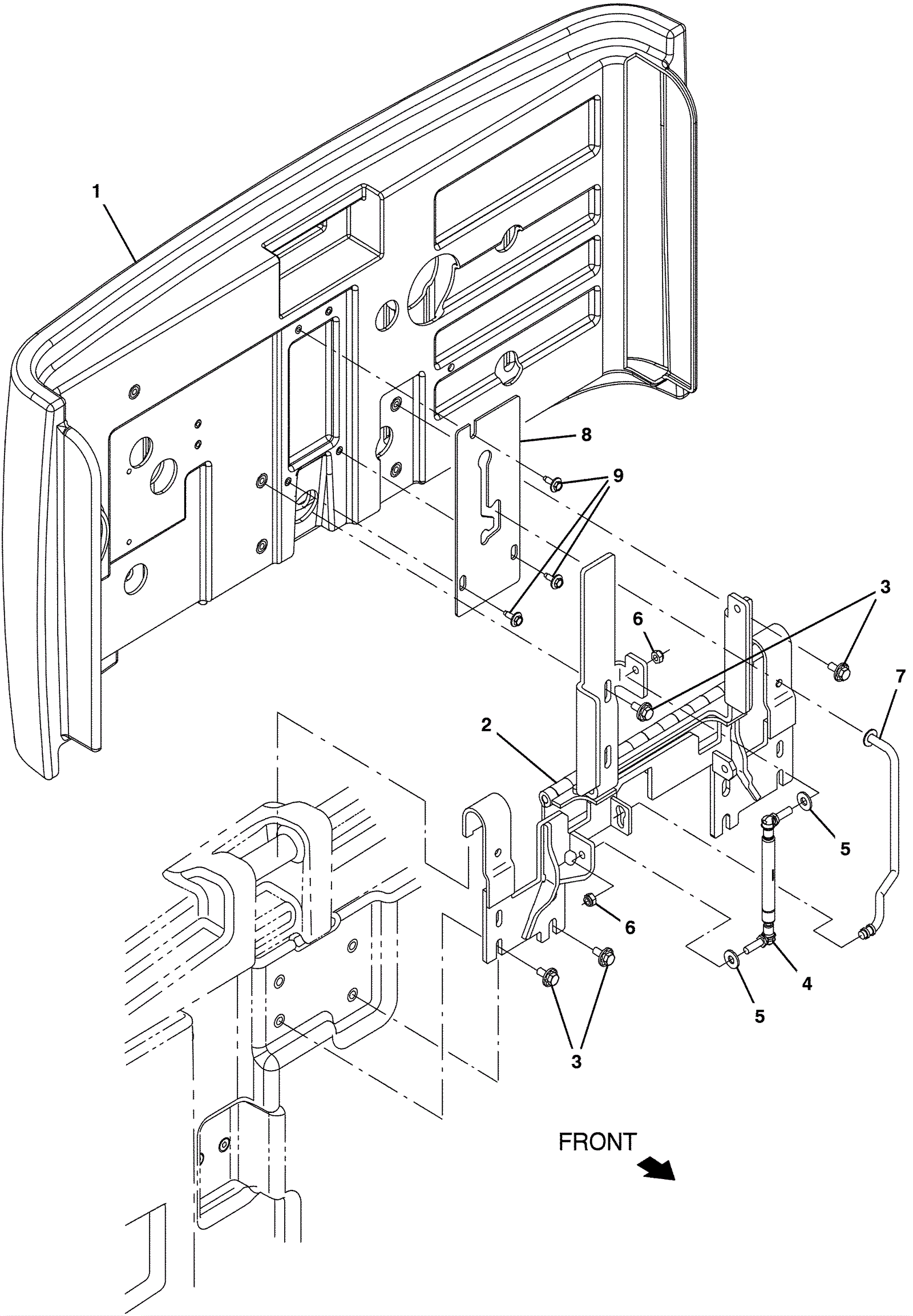

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
12 |
|
|
4 |
675-9631
|
STUD, BALL, 10MM BALL, M8X1.25 (Tennant Industrial) |
1 |
|
|
5 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
7 |
575-8697
|
ROD WLDT, SEAT, BATTERY COVER [T17] (Tennant Industrial) |
1 |
|
|
8 |
675-9632
|
PLATE, MTG, COVER (Tennant Industrial) |
1 |
|
|
9 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
3 |
|
|
