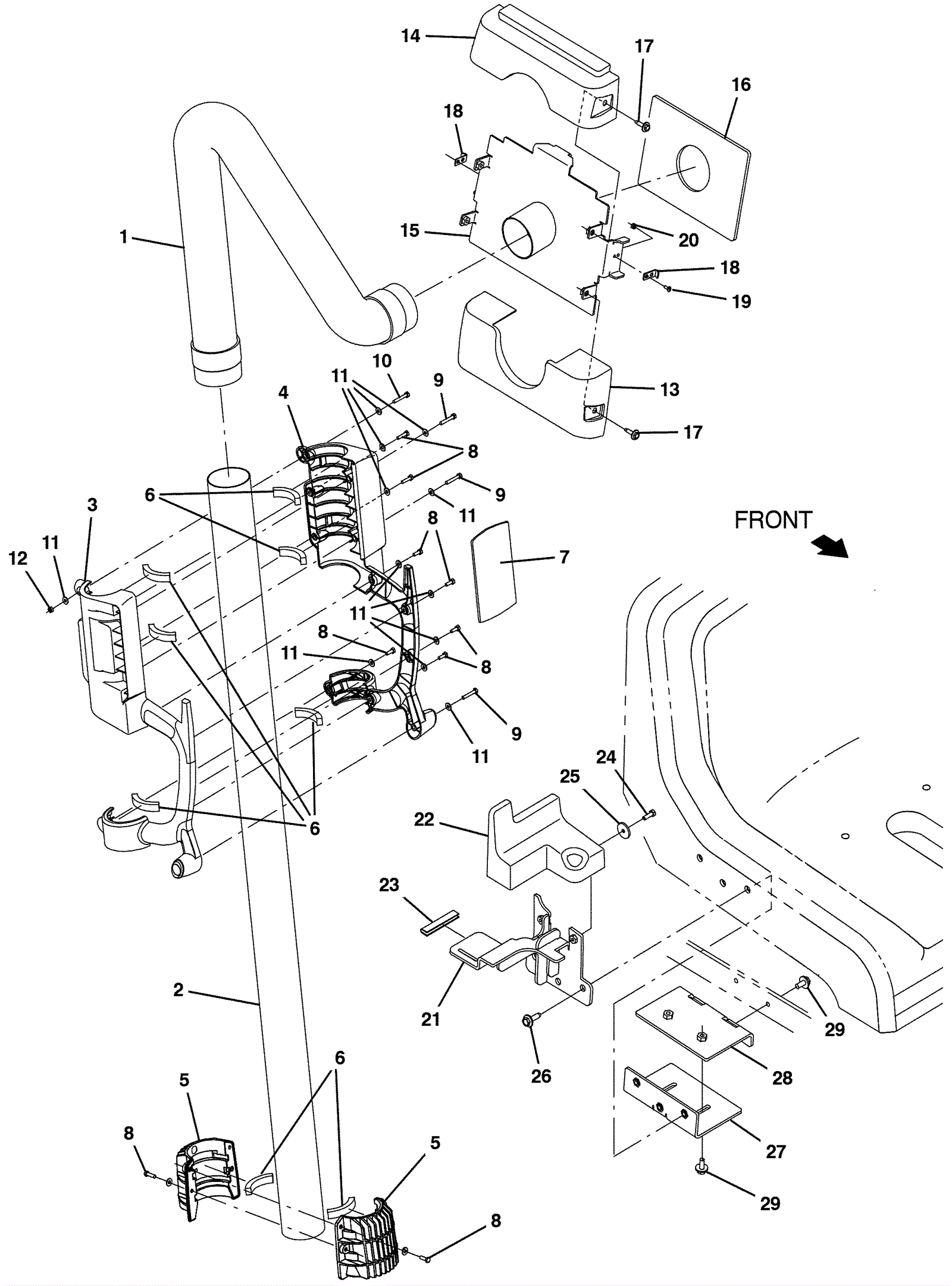

Dry Vacuum Wand Assembly After SN 013999

#PartDescription ReqNotesAvailability
1 675-9699 HOSE, VACUUM, 3.00ID X 89.5L, 2 CUFF (Tennant Industrial) 1
2 675-9701 TUBE, 3.0D, 2.9B, 56.3L (Tennant Industrial) 1
3 675-9702 HANDLE, WAND, DRY VAC, RH (Tennant Industrial) 1
4 675-9703 HANDLE, WAND, DRY VAC, LH (Tennant Industrial) 1
5 675-9704 NOZZLE, WAND, INLET (Tennant Industrial) 2
6 675-9705 SEAL, EPDM, .38, .50W 2.65L, ADH 8
7 675-9706 PAD, REST (Tennant Industrial) 1
8 675-9707 SCREW, HEX, M5 X 0.80 X 16, NL, SS (Tennant Industrial) 11
9 675-9708 SCREW, HEX, M5 X 0.80 X 30, NL, SS (Tennant Industrial) 3
10 275-0923 Screw M5 - 7/8 hex lock 1
11 999-0998 Washer #10 flat stainless steel 16
12 999-0740 Nut M5-.8 hex stainless steel 1
13 N/A Not available 1 (Vacuum wand cover)
14 675-9709 COVER, INLET, WAND, VAC [M17,TRIMMED] (Tennant Industrial) 1
15 675-9710 TUBE WLDT, WAND, VACUUM (Tennant Industrial) 1
16 675-9711 GASKET, HOSE (Tennant Industrial) 1
17 999-0779 Screw M6-1 x 25mm hex head plain finish 2
18 575-1324 BRACKET, MTG, LATCH, KEEPER (Tennant Industrial) 2
19 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
20 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
21 675-9712 BRACKET WLDT, SPPT, WAND, VACUUM (Tennant Industrial) 1
22 675-9713 BRACKET, SPPT, WAND, VAC (Tennant Industrial) 1
23 575-3325 MOLDING, AFMKT, TRIM, PVC, .18 .31, 02FT (Tennant Industrial 1
24 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
25 275-1464 WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) 2
26 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 3
27 N/A Not available 1 (Mounting plate weldment)
28 675-9714 BRACKET WLDT, ADJMT (Tennant Industrial) 1
29 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
KIT1 675-9715 WAND ASSY KIT, VACUUM, HOSE (Tennant Industrial) 1 (includes 1-12)
KIT2 675-9700 WAND ASSY, VACUUM, DRY (Tennant Industrial) 1 (includes 2-12)
