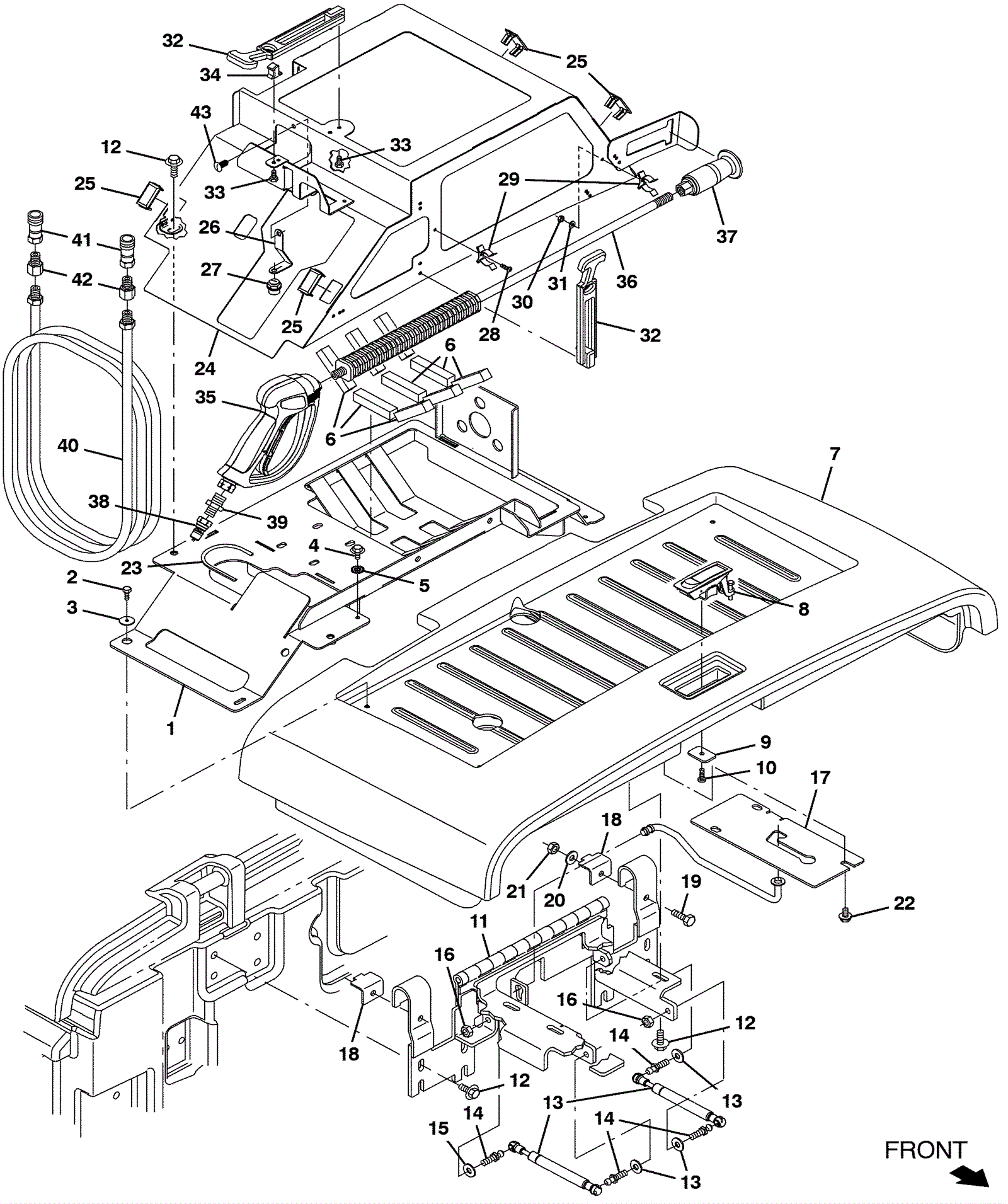

Pressure Washer Wand and Cover Assembly After SN 012999

#PartDescription ReqNotesAvailability
1 675-9626 BRKT KIT, PRESS WASH, AFMKT [T/M17] (Tennant Industrial) 1
2 175-0852 Bolt 5mm-.8 x 12 hex head 4
3 999-0892 Washer 1/4 x 1 zinc plated fender 1
4 999-0778 Screw M6-1 x 10mm hex head 1
5 275-0288 Washer 1/4 internal-external lock 1
6 N/A Not available 1
7 675-9627 COVER, BATTERY, PW, DV [T/M17] (Tennant Industrial) 1
8 275-0047 Latch 1
9 475-8758 PLATE, LATCH [T17] (Tennant Industrial) 1
10 175-5139 SCREW, PAN, PHL, M5 X 0.80 X 25, 4.8 (Tennant Industrial) 1
11 675-9629 HINGE WLDT, COVER, BATTERY (Tennant Industrial) 12
12 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
13 675-9630 GASSPRING, 90LB, 3.15STRK (Tennant Industrial) 4
14 675-9631 STUD, BALL, 10MM BALL, M8X1.25 (Tennant Industrial) 4
15 999-0024 Washer 5/16 flat stainless steel 4
16 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
17 675-9632 PLATE, MTG, COVER (Tennant Industrial) 2
18 475-9987 BRACKET, RETAIN, HINGE, COVER (Tennant Industrial) 2
19 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
20 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
23 275-8203 Molding 1
24 675-9633 COVER KIT, PRESS WASH, AFMKT [T/M17] (Tennant Industrial) 4
25 175-9947 Cover plate 1
26 675-9635 STRAP, PLUG (Tennant Industrial) 1
27 N/A Not available 1 (Oil plug)
28 175-5310 Screw 4 x 45/64 x 16 pan head 2
29 275-5545 Finger grip clip (Tennant Industrial) 2
30 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
31 999-0266 Washer #8 SAE flat stainless steel 1
32 675-9636 LATCH, DRAW (Tennant Industrial) 3
33 175-0837 Bolt M5-.8 x 16mm hex head 1
34 675-9637 KEEPER, LATCH, DRAW (Tennant Inudstrial) 1
35 375-1068 Gun trigger handle (Tennant Industrial) 1
36 375-1069 Stainless steel wand (Tennant Industrial) 1
37 675-9639 NOZZLE, PRESS WASHER (Tennant Industrial) 1
38 375-1071 Stainless steel fitting (Tennant Industrial) 1
39 375-1070 Brass fitting (Tennant Industrial) 1
40 375-1066 25 foot rubber hose (Tennant Industrial) 2
41 375-1067 Stainless steel fitting (Tennant Industrial) 2
42 375-0463 Brass fitting (Tennant Industrial) 1
43 175-5943 CLIP, SNAP-IN, 0.25H 0.80L, BLK NYL (Tennant Industrial) 1
KIT1 675-9634 PLUG KIT, PRESS WASH, PUMP, AFMKT[T/M17] (Tennant Industrial 1 (includes 26 and 27)
KIT2 675-9638 WAND KIT, PRESS WASH, AFMKT [T/M17] (Tennant Industrial) 1 (includes 35-39)
KIT3 675-9640 HOSE KIT, PRESS WASH, AFMKT [T/M17] (Tennant Industrial) 1 (includes 40-42)
