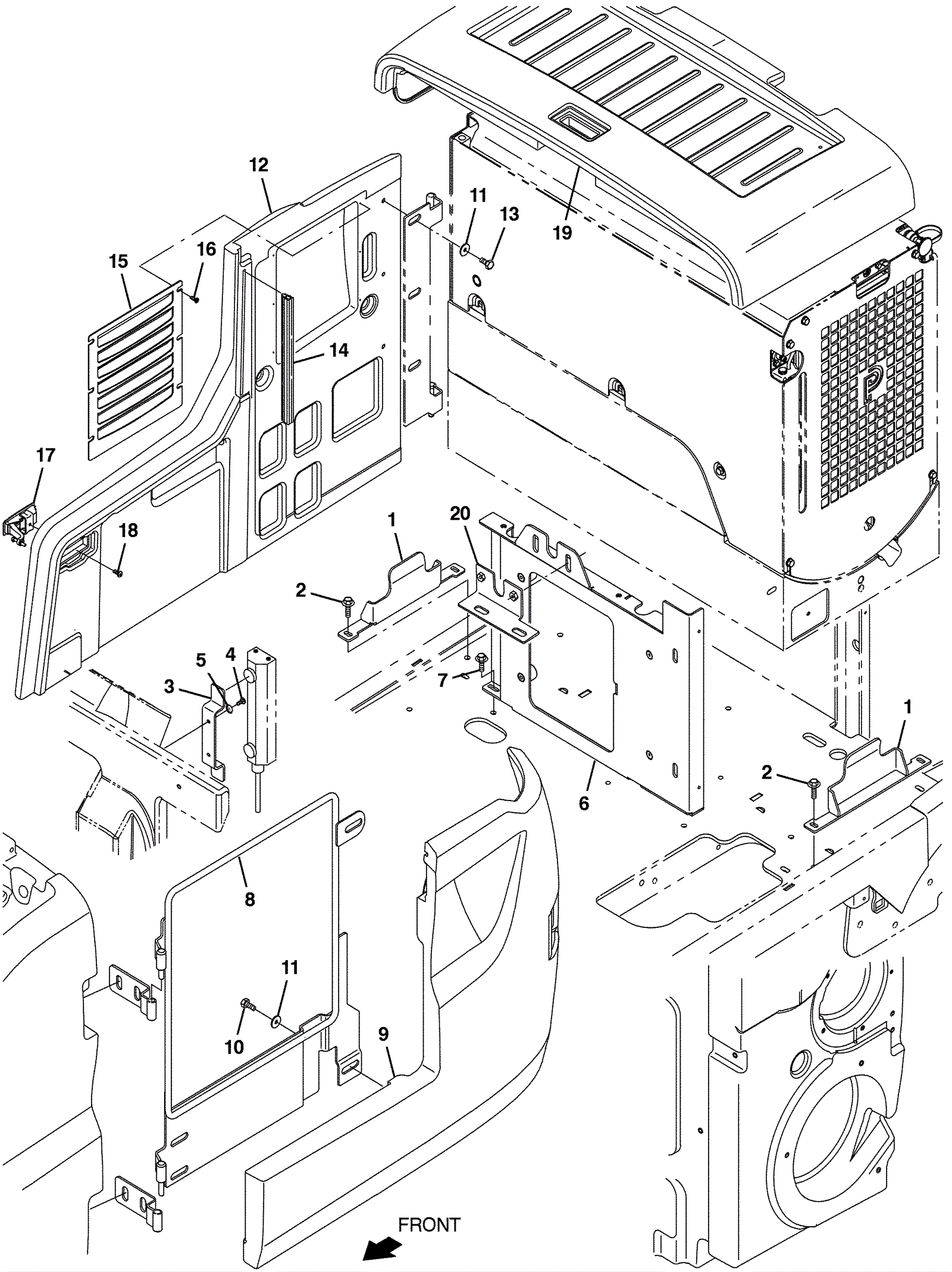

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-9616
|
BRACKET, CELL, FUEL (Tennant Industrial) |
2 |
|
|
2 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
4 |
|
|
3 |
675-9617
|
BRACKET, CONTROLLER [PENDANT] (Tennant Industrial) |
1 |
|
|
4 |
175-5918
|
SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial |
2 |
|
|
5 |
275-7063
|
Washer 1/4 SAE flat black (Tennant Industrial) |
2 |
|
|
6 |
675-9618
|
BRACKET WLDT, SPPT, SEAT (Tennant Industrial) |
1 |
|
|
7 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
8 |
675-9619
|
DOOR, FRAME (Tennant Industrial) |
1 |
|
|
9 |
675-9620
|
COVER, SIDE, LH, FUEL CELL, AFMKT[T/M17] (Tennant Industrial |
1 |
|
|
10 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
11 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
12 |
675-9621
|
COVER, SIDE, RH, FUEL CELL,AFMKT [T/M17] (Tennant Industrial |
1 |
|
|
13 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
3 |
|
|
14 |
275-1361
|
Snap-in lid gasket |
1 |
|
|
15 |
675-9622
|
PANEL, LOUVERED, RH (Tennant Industrial) |
1 |
|
|
16 |
175-3223
|
Screw 12-16 x 1/2 pan head plastic |
6 |
|
|
17 |
275-0047
|
Latch |
1 |
|
|
18 |
175-2895
|
Screw M5-0.8 x 20mm pan head |
1 |
|
|
19a |
675-9623
|
COVER, BATTERY, FUEL CELL, AFMKT [T/M17] (Tennant Industrial |
1 |
|
|
19b |
675-9624
|
COVER, BATTERY, FUEL CELL, OHG [T/M17] (Tennant Industrial) |
1 |
|
|
20 |
675-9625
|
BRACKET WLDT, MTG, OHG (Tennant Industrial) |
1 |
|
|
