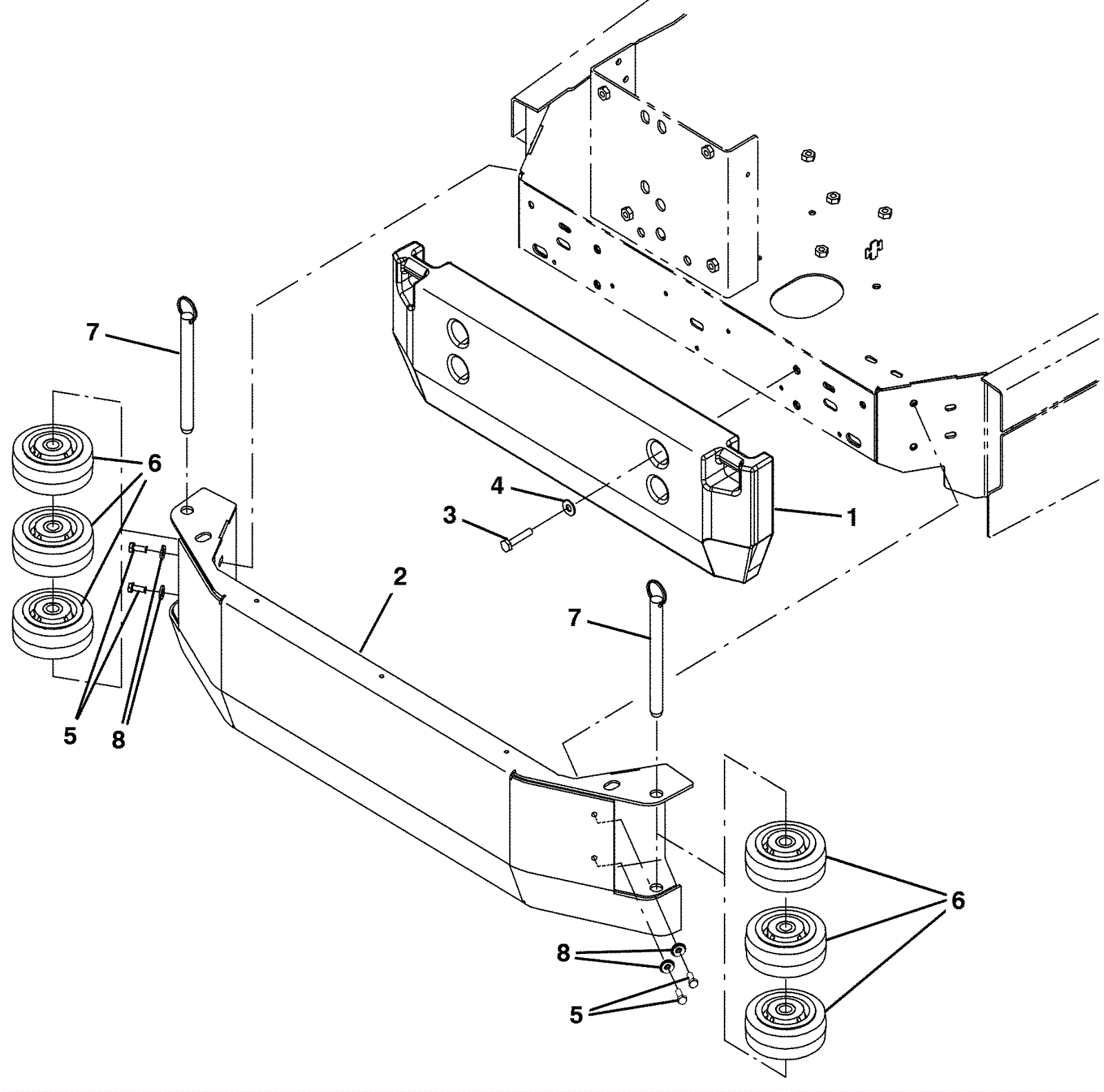

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-8407
|
WEIGHT, COUNTER, CASTING, 250LB, PAINTED (Tennant Industrial |
1 |
|
|
2 |
675-4897
|
CHANNEL WLDT, BUMPER, BALLAST (Tennant Industrial) |
1 |
|
|
3 |
175-3266
|
Bolt 10mm-1 1/2 x 50 hex head |
4 |
|
|
4 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
5 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
6 |
275-5658
|
Wheel (gray) (Tennant Industrial) |
6 |
|
|
7 |
575-3075
|
PIN, HITCH, .750D X 7.00L, PL (Tennant Industrial) |
2 |
|
|
8 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
