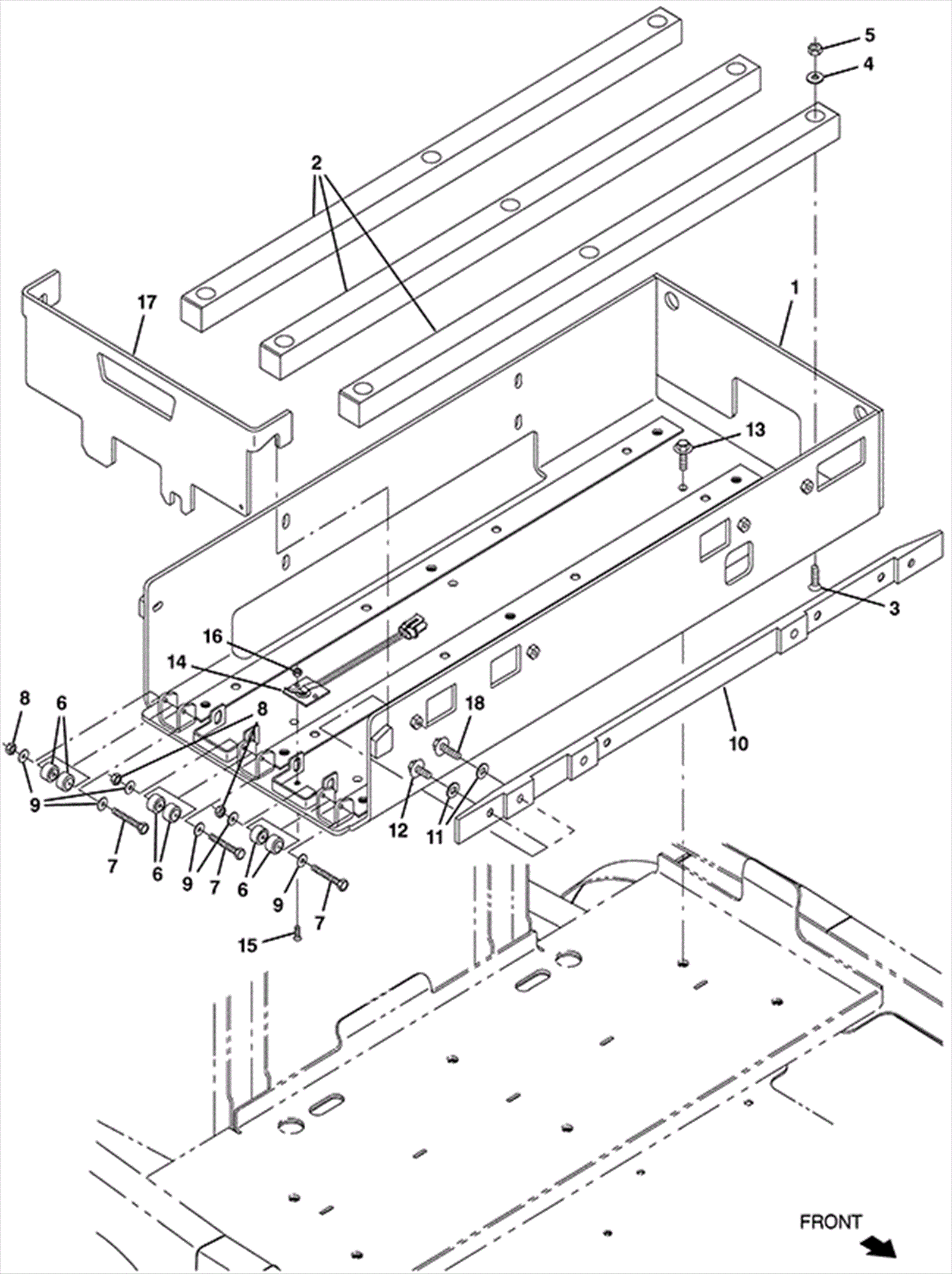

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-5776
|
TRAY WLDT, R/O BATTERY [T17] (Tennant Industrial) |
1 |
(before SN 011000) |
|
1b |
675-5664
|
TRAY WLDT, BATTERY, R/O [T17] (Tennant Industrial) |
1 |
(between SN 010999-013000) |
|
1c |
675-9604
|
TRAY WLDT, R/O, BATTERY (Tennant Industrial) |
1 |
(after SN 012999) |
|
2 |
675-0893
|
PLATE, PLSTC, BAT ROLLOUT (Tennant Industrial) |
3 |
|
|
3 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
9 |
|
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
9 |
|
|
5 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
9 |
|
|
6 |
275-0003
|
Bearing |
6 |
|
|
7 |
175-3400
|
Bolt M6-1 x 55mm hex head stainless steel |
3 |
|
|
8 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
10 |
675-4437
|
PLATE, GUIDE, BATTERY ROLLOUT [T17] (Tennant Industrial) |
1 |
|
|
11 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
12 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
13a |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
6 |
(before SN 011000) |
|
13b |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
6 |
(after SN 010999) |
|
14 |
675-0169
|
SWITCH, LIMIT, N.C. [CPI, SPST, 280 MP] (Tennant Industrial) |
1 |
|
|
15 |
175-2897
|
Screw M5 x 16mm |
2 |
|
|
16 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
17a |
575-5674
|
PLATE, DOOR, BATTERY ROLLOUT [T17] (Tennant Industrial) |
1 |
(before SN 013000) |
|
17b |
675-9605
|
PLATE, DOOR, BATTERY ROLLOUT [T17/M17] (Tennant Industrial) |
1 |
(after SN 012999) |
|
18 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
6 |
|
|
