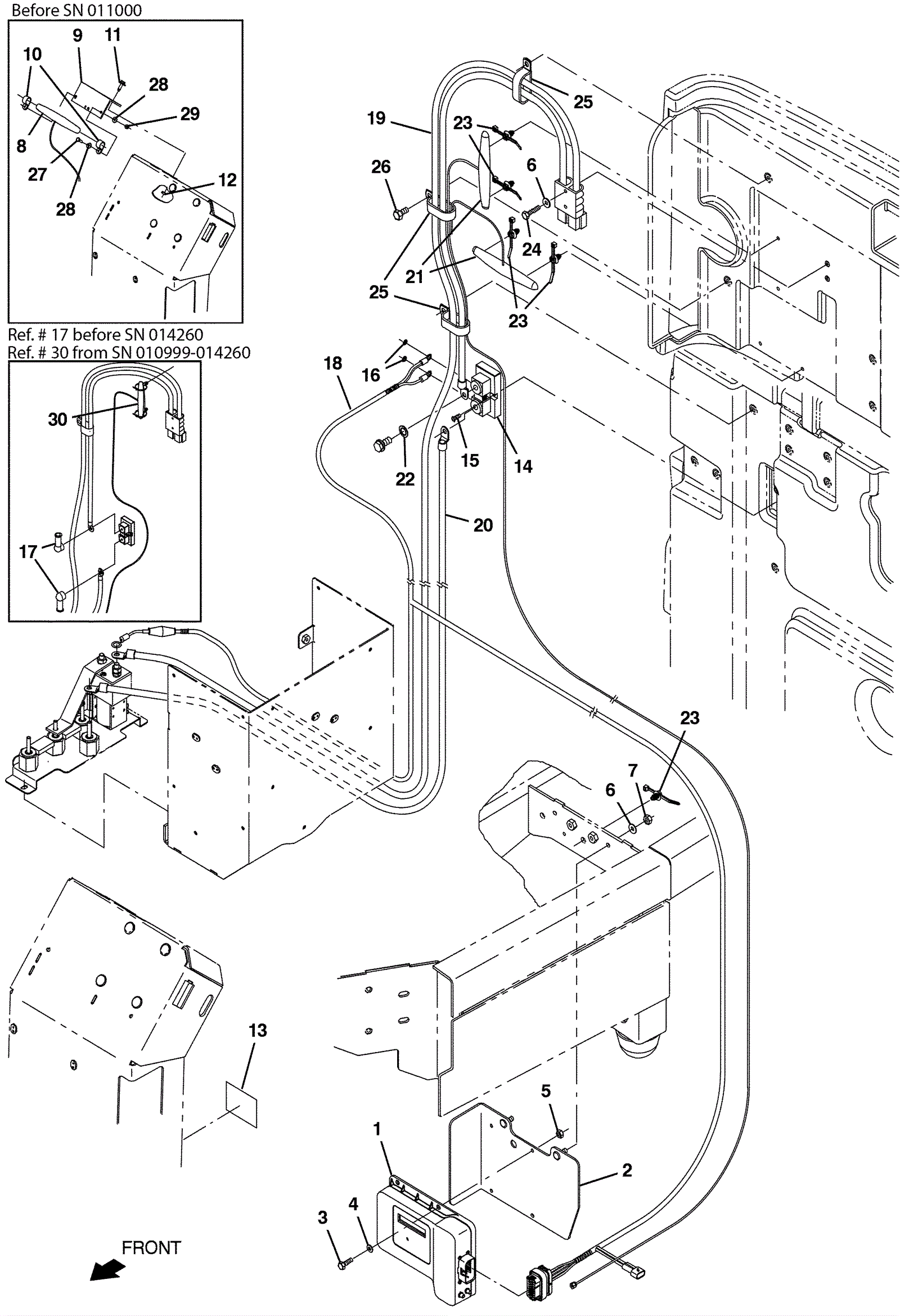

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-2615
|
Telemetry control box assembly kit |
1 |
(before SN 014260) |
|
1b |
375-7809
|
Telem control box assembly (Tennant Industrial) |
1 |
(after SN 014259) |
|
2 |
575-4485
|
BRACKET WLDT, MTG, TELEM (Tennant Industrial) |
1 |
|
|
3 |
175-0837
|
Bolt M5-.8 x 16mm hex head |
4 |
|
|
4 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
5 |
175-2894
|
Nut M5-.8 hex nylon locking |
4 |
|
|
6 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
7 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
8 |
375-1047
|
Antenna |
1 |
(before SN 011000) |
|
9 |
275-7896
|
Antennna mounting angle (Tennant Industrial) |
1 |
(before SN 011000) |
|
10 |
175-0988
|
P clamp |
2 |
(before SN 011000) |
|
11 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
(before SN 011000) |
|
12 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
(before SN 011000) |
|
13 |
275-7899
|
Telemetry decal |
1 |
|
|
14 |
275-2617
|
400amp shunt (Tennant Industrial) |
1 |
|
|
15 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
2 |
|
|
16 |
999-1026
|
Washer #10 internal lock stainless steel |
2 |
|
|
17 |
175-1103
|
Battery cable boot (black) |
2 |
(before SN 014260) |
|
18a |
575-9989
|
HARNESS, ELE [TELEMETRY, T17] (Tennant Industrial) |
1 |
|
|
18b |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
19a |
675-3741
|
CABLE, BATTERY, 1/0GA [TELEM, T17] (Tennant Industrial) |
1 |
(before SN 011000) |
|
19b |
675-4416
|
CABLE, BATTERY, 2/0GA [M17, TELEM] (Tennant Industrial) |
1 |
(after SN 010999) |
|
20a |
675-0098
|
CABLE, 1/0GA 48.2L BLK[M9 RING/.25 RING] (Tennant Industrial |
1 |
(before SN 011000) |
|
20b |
675-1046
|
CABLE, 2/0GA 61.0L BLK [M6 RING/M9 RING] (Tennant Industrial |
1 |
(after SN 010999) |
|
21 |
675-9603
|
ANTENNA, TELEM [4G, 180"] (Tennant Industrial) |
2 |
(after SN 014259) |
|
22 |
475-7732
|
WASHER, LOCK, INT, 0.44 (Tennant Industrial) |
2 |
|
|
23 |
275-5197
|
Fir tree clip |
5 |
(after SN 010999) |
|
24 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
25 |
175-3171
|
Cable clamp |
3 |
|
|
26 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
27 |
175-6939
|
Screw M5 x 16mm stainless steel |
2 |
(before SN 011000) |
|
28 |
999-0998
|
Washer #10 flat stainless steel |
4 |
(before SN 011000) |
|
29 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
(before SN 011000) |
|
30 |
375-0008
|
Telemetry antenna |
1 |
(between SN 010999-014260) |
|
