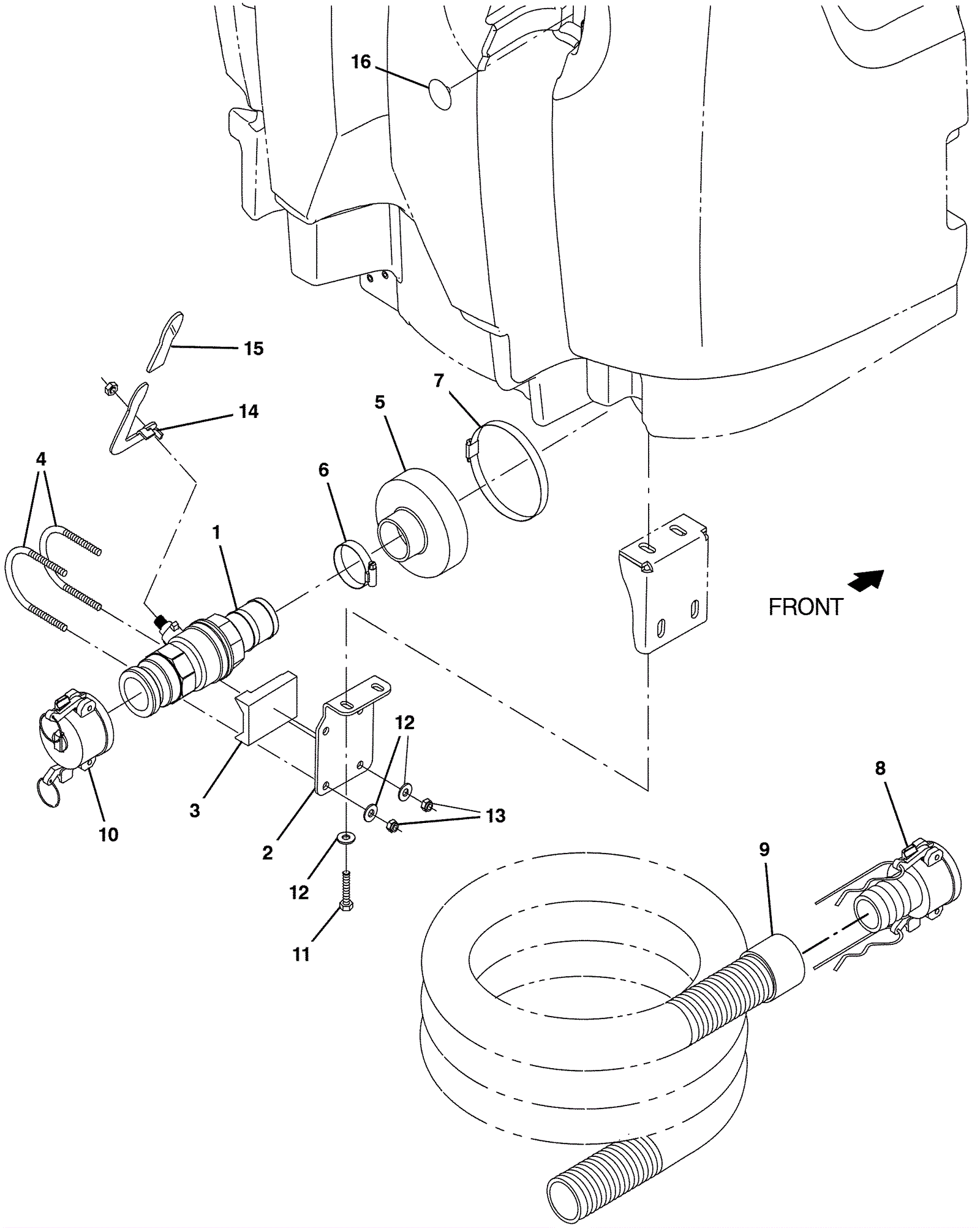

Positive Drain Assembly

#PartDescription ReqNotesAvailability
1 675-5760 VALVE, BALL, DRAIN, 2.00ID, RH (Tennant Industrial) 1
2 575-1378 BRACKET, MTG, VALVE, DRAIN (Tennant Industrial) 1
3 575-9502 SUPPORT, VALVE, DRAIN (Tennant Industrial) 1
4 575-3035 CLAMP, VALVE, U-BOLT (Tennant Industrial) 2
5 675-2918 CUFF, HOSE, 5.0 / 2.0 ID (Tennant Industrial) 1
6 997-2003 Hose clamp 1
7 275-7688 Hose clamp 1
8 575-6832 FITTING, COUPLER, HOSE, SHANK, FEM (Tennant Industrial) 1
9 675-2777 HOSE ASSY, W/1 CUFF, 2.0 ID 120.0 L (Tennant Industrial) 1
10 575-7736 REWORK, DUST CAP, VALVE, DRAIN (Tennant Industrial) 1
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
14 575-1151 HANDLE, VALVE (Tennant Industrial) 1
15 575-4083 GRIP, HANDLE, VALVE (Tennant Industrial) 1
16 475-2929 PLUG, HOLE, RND, 0.25H, 1.00D 0.61L, NYL 1
