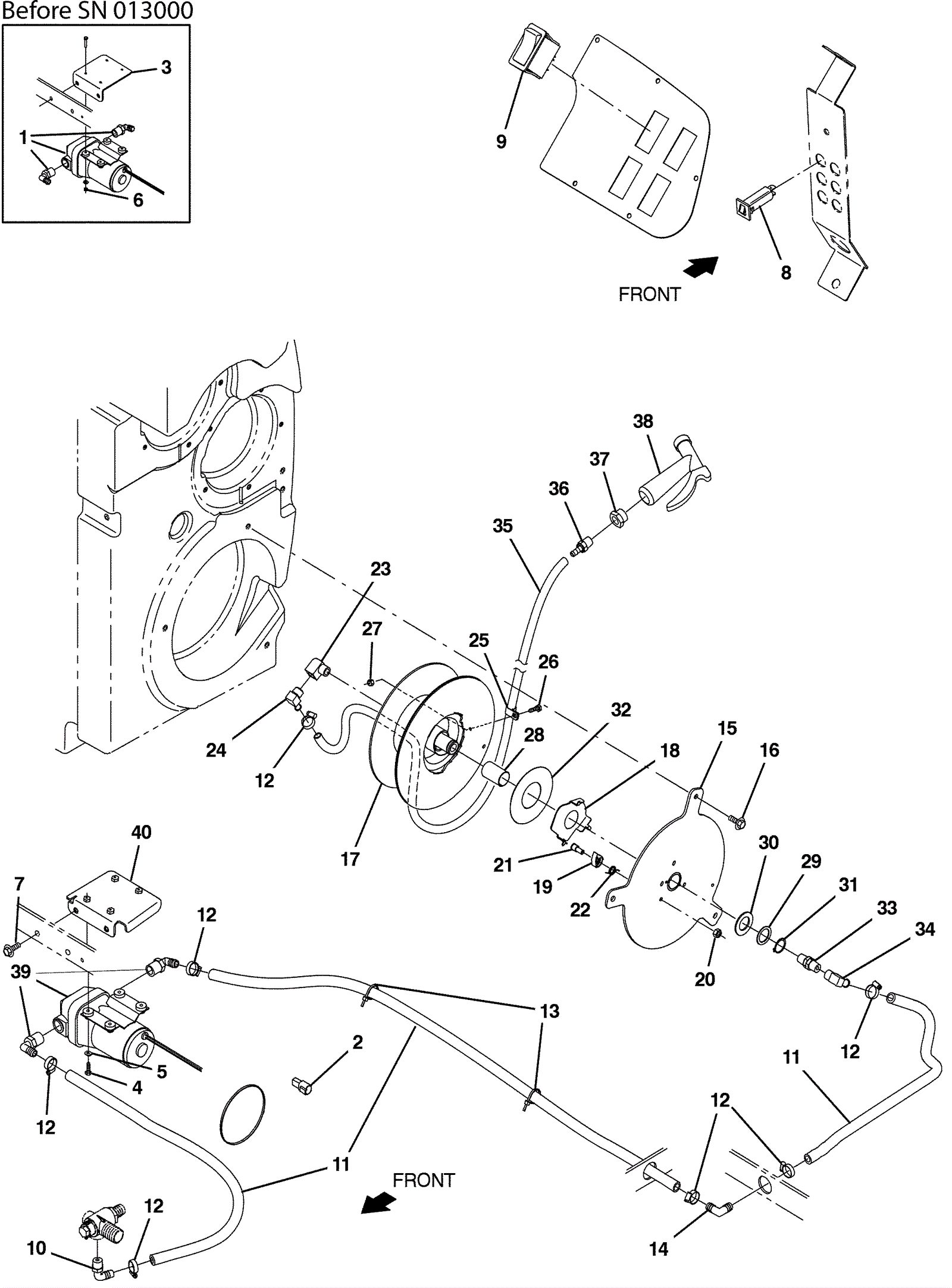

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7852
|
36V solution pump (Tennant Industrial) |
1 |
(before SN 013000) |
|
2 |
275-7853
|
Diode plug (Tennant Industrial) |
1 |
|
|
3 |
575-1907
|
BRACKET WLDT, PUMP, SPRAY HOSE (Tennant Industrial) |
1 |
(before SN 013000) |
|
4 |
175-3382
|
Bolt M5-.8 x 25mm hex head stainless steel |
4 |
|
|
5 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
6 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
(before SN 013000) |
|
7 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
8 |
175-5969
|
15amp circuit breaker (Tennant Industrial) |
1 |
|
|
9 |
275-0120
|
DPDT rocker switch |
1 |
|
|
10 |
175-5241
|
90 degree elbow |
1 |
|
|
11 |
275-8340
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 12FT, CLR (Tennant Industria |
1 |
|
|
12 |
175-6081
|
Hose clamp |
7 |
|
|
13 |
175-7795
|
Cable tie |
2 |
|
|
14 |
175-5233
|
Plastic fitting |
1 |
|
|
15 |
575-9104
|
PLATE WLDT, MTG, HOSE-REEL [T17] (Tennant Industrial) |
1 |
|
|
16 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
17 |
675-6480
|
REEL ASSY, HOSE, LARGE (Tennant Industrial) |
1 |
|
|
18 |
275-7859
|
Washer |
1 |
|
|
19 |
275-7860
|
Ratchet pawl |
1 |
|
|
20 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
21 |
275-7861
|
Bolt M8 x 1.25 (Tennant Industrial) |
1 |
|
|
22 |
275-7862
|
Hose reel torsion spring |
1 |
|
|
23 |
275-8231
|
FITTING, BRS, E90, PF06/PM06, SPCL (Tennant Industrial) |
1 |
|
|
24 |
275-7863
|
90 degree brass elbow (Tennant Industrial) |
1 |
|
|
25 |
275-0559
|
P clamp |
1 |
|
|
26 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
27 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
28 |
275-7864
|
Bushing (Tennant Industrial) |
1 |
|
|
29 |
275-7865
|
Washer 1.02 x 1.38 plastic thrust (Tennant Industrial) |
1 |
|
|
30 |
275-7866
|
Washer 1.02 x 1.75 flat (Tennant Industrial) |
1 |
|
|
31 |
175-3294
|
Retaining ring |
1 |
|
|
32 |
275-7867
|
Thrust washer (Tennant Industrial) |
1 |
|
|
33 |
275-7868
|
Brass swivel fitting |
1 |
|
|
34 |
275-7869
|
90 degree brass elbow (Tennant Industrial) |
1 |
|
|
35 |
675-0658
|
HOSE KIT, SPRAY, AFMKT [T17] (Tennant Industrial) |
1 |
|
|
36 |
275-7872
|
Swivel fitting (Tennant Industrial) |
1 |
|
|
37 |
275-7873
|
Brass fitting |
1 |
|
|
38 |
275-7874
|
Spray gun nozzle |
1 |
|
|
39 |
675-9601
|
PUMP, SOLTN, ELE, 36VDC, 45PSI (Tennant Industrial) |
1 |
(after SN 012999) |
|
40 |
675-9602
|
PLATE WLDT, PUMP (Tennant Industrial) |
1 |
(after SN 012999) |
|
