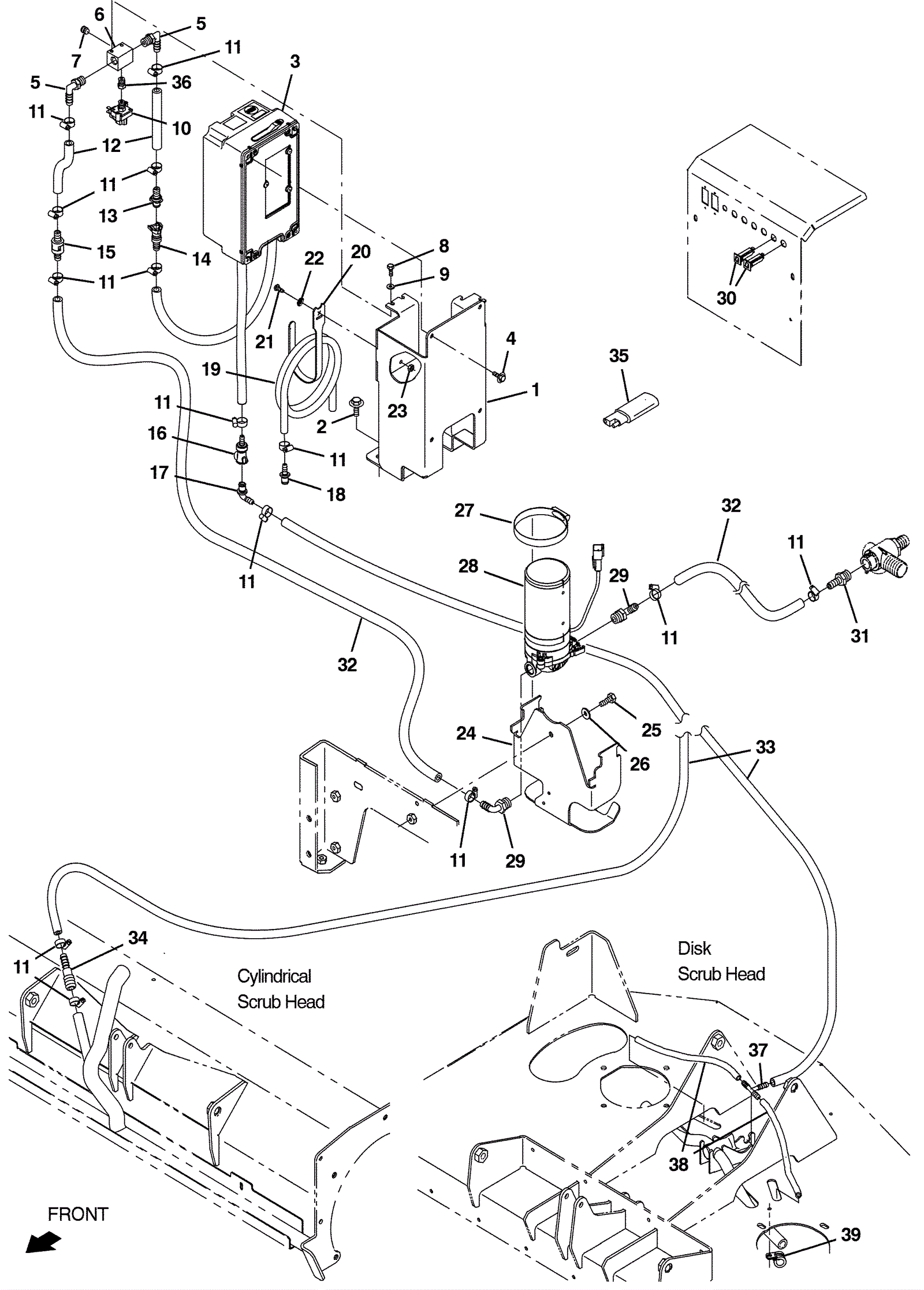

ec-H2O Solution Pump Assembly

#PartDescription ReqNotesAvailability
1 575-9951 BRACKET WLDT, MGT [T17 ec-H2O] (Tennant Industrial) 1
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
3 675-8304 ec-H2O MODULE KIT, AFMKT [MOD-E] (Tennant Industrial) 1
4 999-1312 Screw M6-1 x 20mm hex head stainless steel 4
5 175-6926 Plastic elbow fitting 2
6 275-7792 Fitting (Tennant Industrial) 1
7 175-6121 Brass plug 1
8 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
9 999-0998 Washer #10 flat stainless steel 2
10 275-7329 SWITCH, PRESS, 25 PSI, PM02 (Tennant Industrial) 1
11 175-3594 Hose clamp 15
12 275-8237 HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria 2
13 275-7793 Male plastic fitting 1
14 275-7794 Female plastic fitting 1
15 175-7929 Check valve 1
16 275-7795 Female plastic fitting 1
17 275-7796 90 degree male plastic fitting 1
18 275-7797 Male plastic fitting 1
19 675-9598 HOSE, AFMKT, PVC, BRD, 0.25ID, 02FT (Tennant Industrial) 1
20 275-7090 Fastener (Tennant Industrial) 1
21 999-1225 Screw M5-.8 x 12mm pan head phillips zinc 1
22 999-0998 Washer #10 flat stainless steel 1
23 999-0740 Nut M5-.8 hex stainless steel 1
24a 575-4052 BRACKET, PUMP (Tennant Industrial) 1 (before SN 011000)
24b 575-5112 BRACKET, PUMP (Tennant Industrial) 1 (after SN 010999)
25 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
26 999-0123 Washer 1/4 SAE flat zinc plated 1
27 997-2009 Hose clamp 1
28 275-7801 36V solution pump 1
29 175-7933 90 degree plastic elbow 2
30 275-5483 2.5amp circuit breaker 2
31 175-4808 Hose barb 1
32 275-7845 8 foot clear PVC hose (Tennant Industrial) 1
33 675-9599 OSE, AFMKT, PVC, BRD, 0.25ID, 08FT (Tennant Industrial) 1
34 275-4947 Plastic fitting 1
35 275-4752 Capacitor plug 1
36 375-1018 Brass snubber fitting (Tennant Industrial) 1
