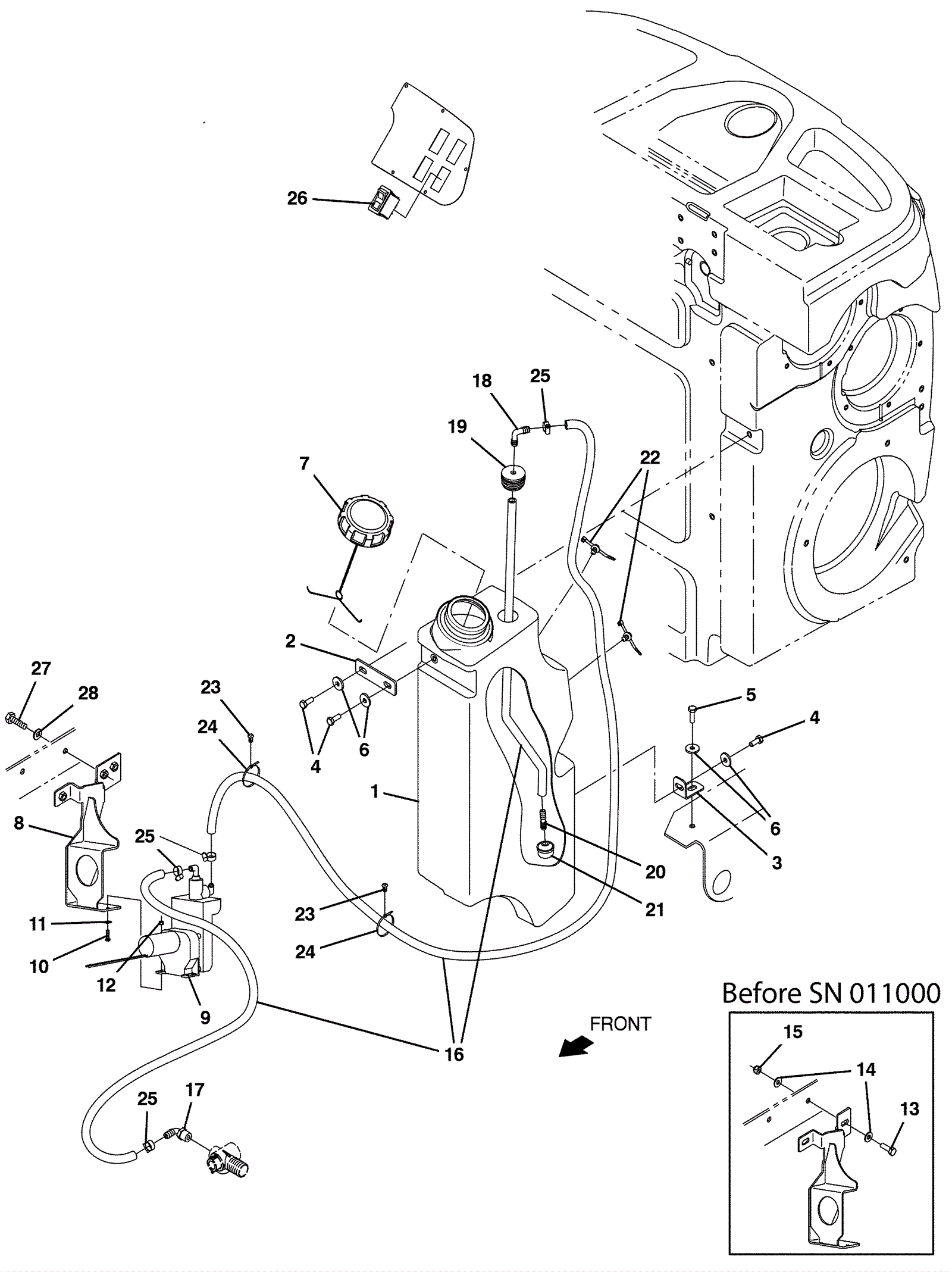

ES and Severe Environment Solution Metering Assembly

#PartDescription ReqNotesAvailability
1 675-5856 TANK KIT, DETERGENT, AFMKT [T17] (Tennant Industrial) 1
2 475-8897 PLATE, MTG, TANK, DETERGENT (Tennant Industrial) 1
3 475-9715 BRACKET, MTG, TANK, DETERGENT (Tennant Industrial) 1
4 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 3
6 175-7920 Washer M8 flat stainless steel 1
7 275-8185 Tank cap 4
8a 575-6968 BRACKET WLDT, PUMP (Tennant Industrial) 1 (before SN 011000)
8b 575-7193 BRACKET WLDT, PUMP (Tennant Industrial) 1 (after SN 010999)
9 275-8706 PUMP, DETGT, 36VDC (Tennant Industrial) 1
10 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 2
11 999-0998 Washer #10 flat stainless steel 2
12 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2 (before SN 011000)
14 999-0123 Washer 1/4 SAE flat zinc plated 4 (before SN 011000)
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2 (before SN 011000)
16 575-7727 HOSE, AFMKT, PVC, BRD, 0.38ID, 20FT, CLR (Tennant Industrial 1
17 175-7933 90 degree plastic elbow 1
18 175-8716 FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) 1
19 275-8702 GROMMET, PYE, 0.37ID, F/1.5H, .13 MATL (Tennant Industrial) 1
20 275-8703 Straight plastic fitting (Tennant Industrial) 1
21 275-8704 SCREEN, PUMP (Tennant Industrial) 1
22 275-5197 Fir tree clip 2
23 275-5370 Clip 4
24 175-7795 Cable tie 6
25 175-3594 Hose clamp 4
26 575-7876 SWITCH, ROCKER [MOM,OFF,MOM, DUAL LED] (Tennant Industrial) 1 (only for severe environment)
27 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
28 999-0123 Washer 1/4 SAE flat zinc plated 2
