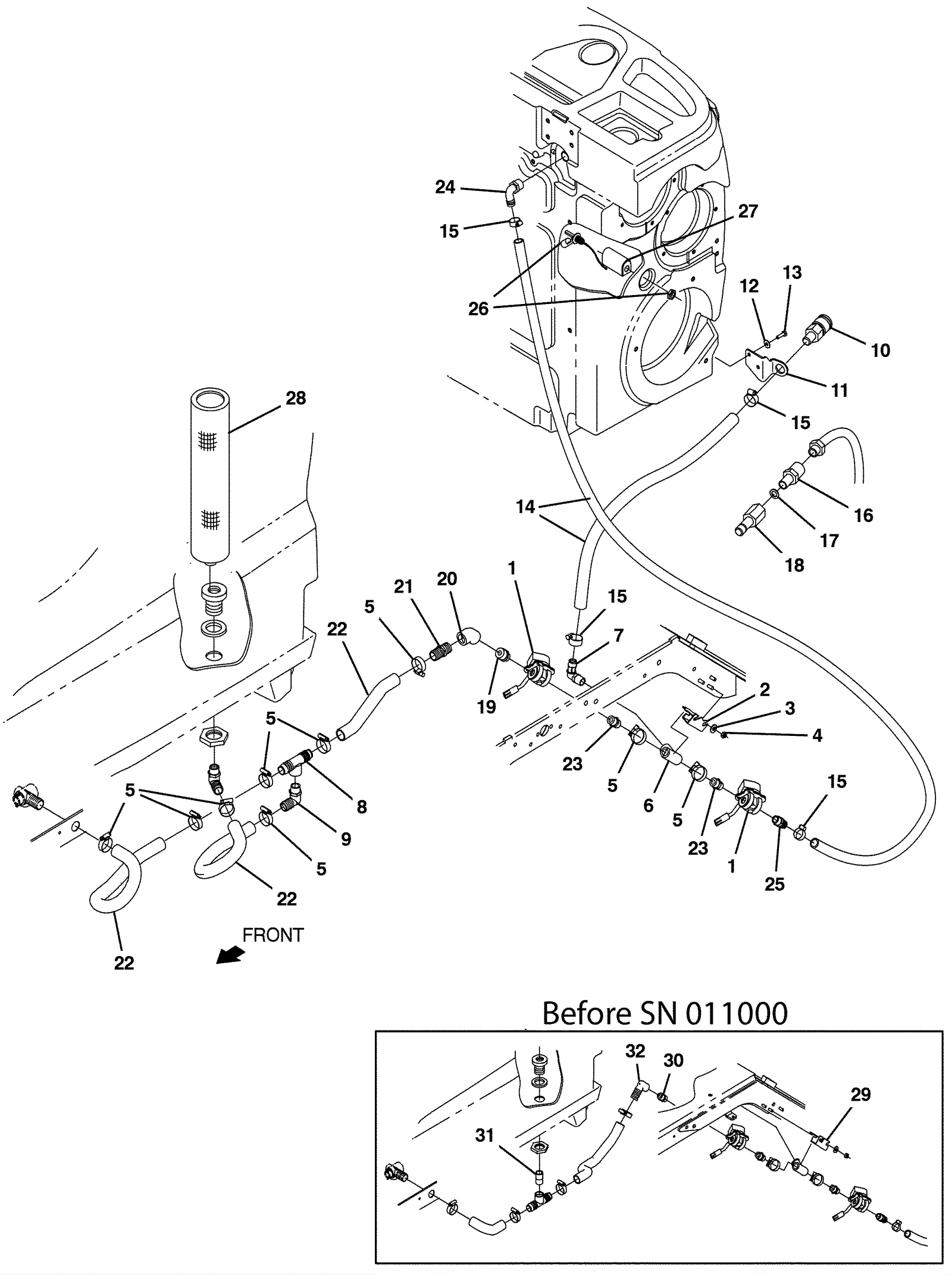

ES Auto Fill Assembly

#PartDescription ReqNotesAvailability
1 275-4208 VALVE, WATER, SOLENOID, 36VDC PF08/PF08 (Tennant Industrial 1
2 575-1214 BRACKET, MTG, FTG, AUTO FILL (Tennant Industrial) 1 (after SN 010999)
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
5 175-2254 Hose clamp 8
6 275-4197 FITTING, PLSTC, TEE, PF08/PF08/PF08 (Tennant Industrial) 1
7 275-8603 FITTING, PLSTC, E90, BM12/PM08 (Tennant Industrial) 1
8 175-0661 FITTING, PLSTC, TEE, BM16/PF12/BM16, BR (Tennant Industrial 1
9 575-1382 FITTING, PLSTC, E90, BM16/PM12 (Tennant Industrial) 2 (after SN 010999)
10 275-4202 FITTING, BRS, QDC, BM12/QF08 (Tennant Industrial) 1
11 475-9651 BRACKET, MTG, FITTING, QDC (Tennant Industrial) 1
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
13 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
14 375-1085 8 foot clear PVC hose (Tennant Industrial) 2
15 175-0199 Hose clamp 4
16 375-1059 Garden hose brass fitting (Tennant Industrial) 1
17 175-2303 Rubber washer 1
18 275-4203 FITTING, BRS, QDC, PF08 [PARKER BH3F] (Tennant Industrial) 1
19 275-1199 Plastic fitting 1 (after SN 010999)
20 175-9668 45 degree elbow plastic fitting 1 (after SN 010999)
21 175-0666 FITTING, PLSTC, STR, BM16/PM12 (Tennant Industrial) 1 (after SN 010999)
22 575-7908 HOSE, AFMKT, PVC, WIR,1.00 ID, 03FT, CLR (Tennant Industrial 3
23 275-8679 FITTING, PLSTC, STR, PM08/PM08 (Tennant Industrial) 2
24 175-9679 90 degree plastic elbow 1
25 275-8648 FITTING, PLSTC, STR, BM12/PM08, NYL (Tennant Industrial) 1
26 175-9554 Float switch 1
27 275-4664 Float switch protector bracket 1
28 675-2879 FILTER, SOLTN, 080MESH, PM12 3.2D 17.5L (Tennant Industrial) 1
29 575-5928 BRACKET, MTG, FTG, AUTO FILL (Tennant Industrial) 1 (before SN 011000)
30 275-8679 FITTING, PLSTC, STR, PM08/PM08 (Tennant Industrial) 1 (before SN 011000)
31 175-3409 Plastic fitting 1 (before SN 011000)
32 575-1150 FITTING, PLSTC, E90, BM16/PF8 (Tennant Industrial) 1 (before SN 011000)
