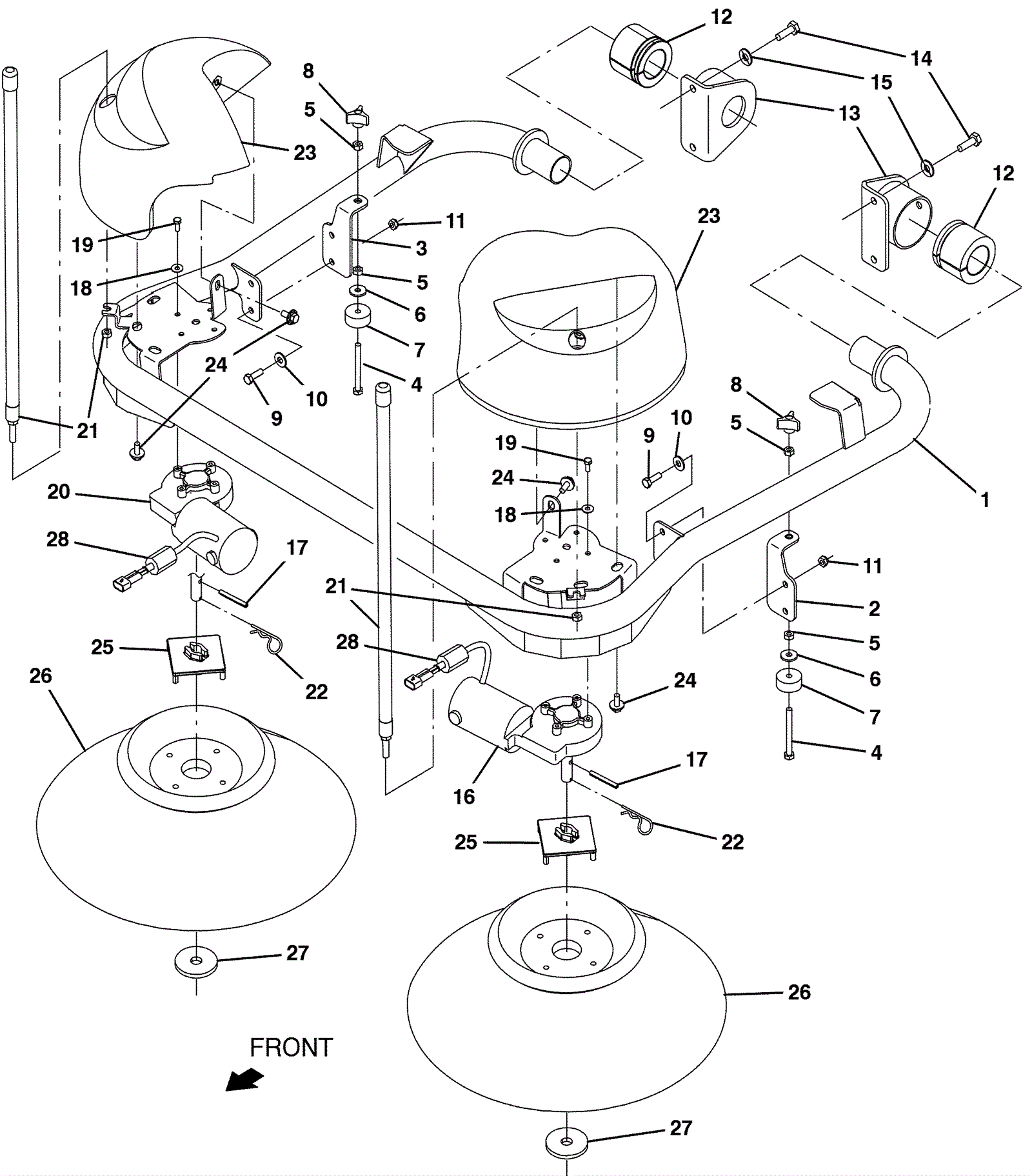

Pre-Sweep Side Brush Assembly

#PartDescription ReqNotesAvailability
1 675-5641 TUBE WLDT, ARM, BRUSH, SIDE (Tennant Industrial) 1
2 575-5504 BRACKET WLDT, BRUSH, ADJ, LH (Tennant Industrial) 1
3 575-5246 BRACKET WLDT, BRUSH, ADJ, RH (Tennant Industrial) 1
4 275-5637 Screw M8-1.25 x 80 hex head (Tennant Industrial) 2
5 999-1424 Nut M8-1.25 hex stainless steel 4
6 175-7920 Washer M8 flat stainless steel 2
7 175-0745 BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) 2
8 175-2525 Knob 2
9 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
12 275-7707 Flex bushing (Tennant Industrial) 2
13 275-5634 Pivot housing weldment (Tennant Industrial) 2
14 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread 4
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
16 675-6437 MOTOR, ELE, 36VDC 0.08HP 0068RPM GEAR LH (Tennant Industrial 1
17 275-1660 PIN, ROLL, .250D X 2.00L, .250/.256 (Tennant Industrial) 2
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
20 675-6499 MOTOR, ELE, 36VDC 0.08HP 0068RPM GEAR RH (Tennant Industrial 1
21 575-7933 KIT, MARKER, CORNER (Tennant Industrial) 2
22 175-2106 Cotter hair pin 2
23 675-3371 COVER, MOTOR, PRESWP, AFMKT [T17] (Tennant Industrial) 2
24 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 8
25 275-7983 Brush adapter plate (Tennant Industrial) 2
26 275-1971 Polypropylene side broom (Tennant Industrial) 2
27 275-7984 Washer (Tennant Industrial) (OBSOLETE) 2
28 575-0948 INDUCTOR, FERRITE [SPIT CASE, 220@100HZ] (Tennant Industrial 2
