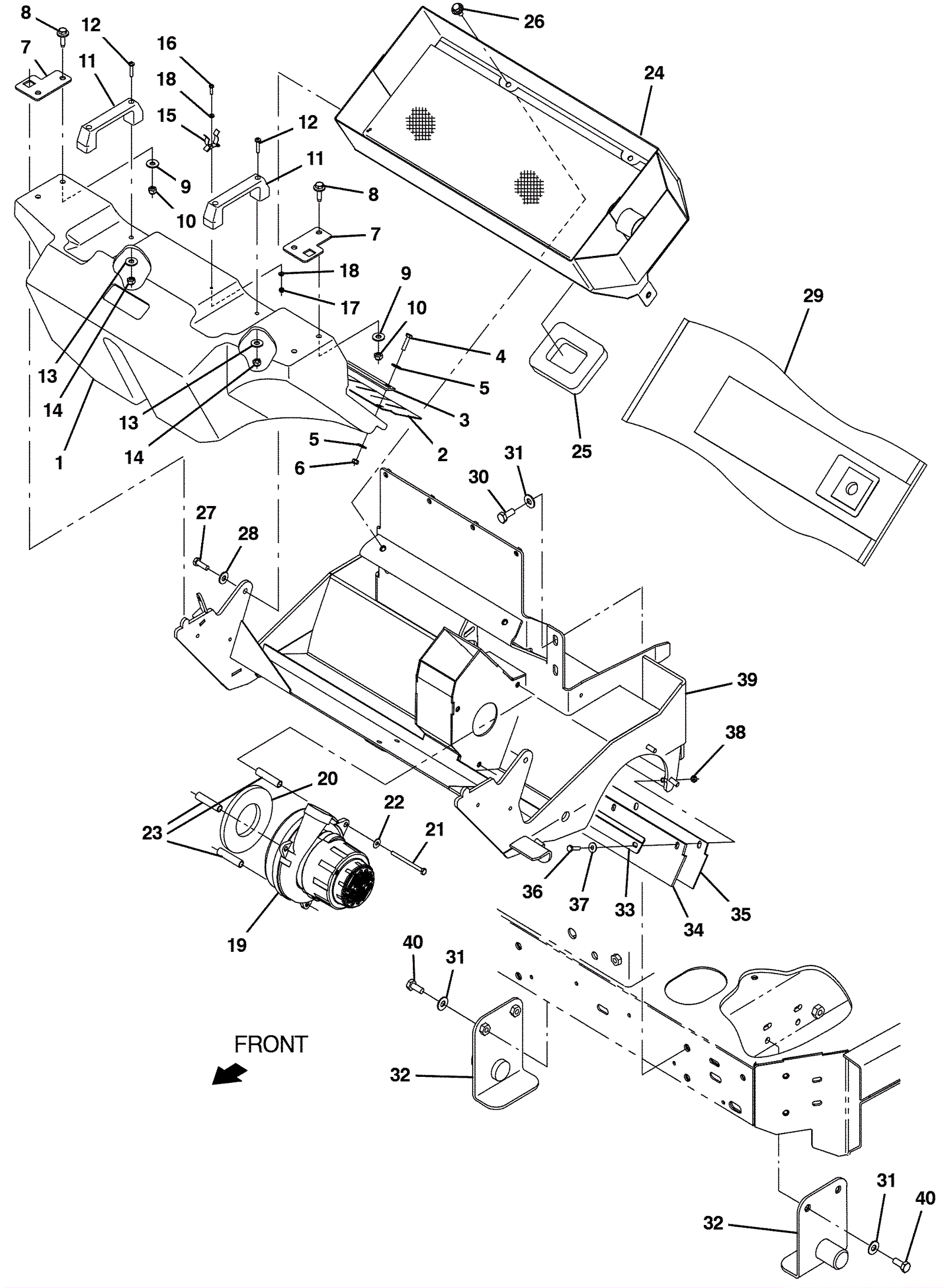

Pre-Sweep Hopper and Vacuum Motor Assembly

#PartDescription ReqNotesAvailability
1a 675-5656 HOPPER, PRESWP, AFMKT [T17] (Tennant Industrial) 1 (includes 1b-23)
1b 675-3326 HOPPER, PRE-SWEEP, RM-CPTL, TRIMMED (Tennant Industrial) 1
1c 575-8248 SKIRT KIT, HOPPER, PRESWP, AFMKT [T17] (Tennant Industrial) 1 (includes 2-6)
2 575-3034 SKIRT, NEO, .06, 04.88W 28.26L 05/SL (Tennant Industrial) 1
3 575-1793 PLATE, RETAINER, SKIRT (Tennant Industrial) 1
4 999-1087 Bolt M6-1 x 25mm hex head stainless steel 5
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 10
6 999-0497 Nut M6-1 nylon insert lock stainless steel 5
7 475-9562 ANGLE, MTG, HOPPER (Tennant Industrial) 2
8 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
9 999-0024 Washer 5/16 flat stainless steel 4
10 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
11 275-5603 Door handle (Tennant Industrial) 2
12 175-5139 SCREW, PAN, PHL, M5 X 0.80 X 25, 4.8 (Tennant Industrial) 4
13 999-1288 Washer 1/4 x 1 OD fender stainless steel 4
14 175-2894 Nut M5-.8 hex nylon locking 4
15 275-5545 Finger grip clip (Tennant Industrial) 1
16 175-5310 Screw 4 x 45/64 x 16 pan head 1
17 999-0954 Nut M4-.7 nylon insert lock stainless steel 1
18 999-0377 Washer 6 SAE flat plain finish 2
19a 675-4786 VAC FAN KIT, W/SEAL, PRESWP [T17] (Tennant Industrial) 1 (includes 19b-23)
19b 275-7692 Vacuum fan 1 (includes 19c)
19c 275-7693 Carbon brush (pkg of 2) 1
20 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) 1
21 175-3399 Bolt M6-1 x 80mm hex head stainless steel 3
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
23 275-0821 Sleeve 3
24 675-3873 FILTERBOX WLDT, PRESWEEP (Tennant Industrial) 1
25 275-5605 Gasket (Tennant Industrial) 1
26 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
27 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
29 275-5809 Vacuum bags (pkg of 10) 1
30 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 4
31 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
32 575-6908 BRACKET WLDT, MOUNT (Tennant Industrial) 2
33 575-1793 PLATE, RETAINER, SKIRT (Tennant Industrial) 1
34 575-4771 SKIRT, NEO, .19, 03.62W 28.12L 05/SL (Tennant Industrial) 1
35 575-2035 SKIRT, NEO, .06, 03.62W 28.12L 05/SL (Tennant Industrial) 1
36 999-1087 Bolt M6-1 x 25mm hex head stainless steel 5
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
38 999-0497 Nut M6-1 nylon insert lock stainless steel 5
39 675-6520 FRAME WLDT, BRUSH, PRE-SWEEP (Tennant Industrial) 1
40 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread 4
