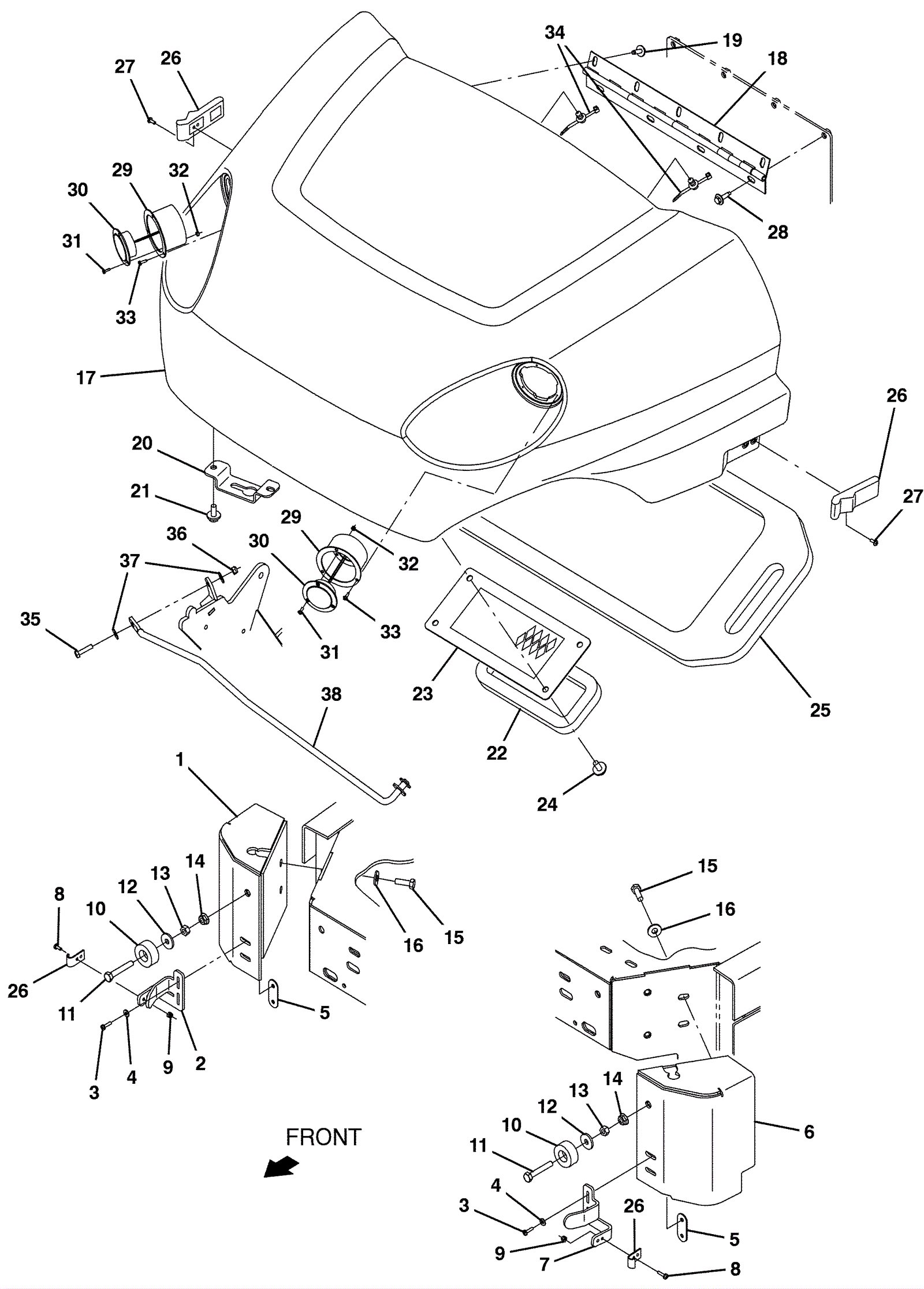

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-1643
|
BRACKET WLDT, CORNER, RH (Tennant Industrial) |
1 |
|
|
2 |
575-5627
|
BRACKET, LATCH, RH (Tennant Industrial) |
1 |
|
|
3 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
4 |
|
|
4 |
999-0412
|
Washer #8 SAE flat |
8 |
|
|
5 |
575-1212
|
PLATE WLDT, NUT, M4 (Tennant Industrial) |
2 |
|
|
6 |
675-1537
|
BRACKET WLDT, CORNER, LH (Tennant Industrial) |
1 |
|
|
7 |
575-5628
|
BRACKET, LATCH, LH (Tennant Industrial) |
1 |
|
|
8 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
4 |
|
|
9 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
10 |
175-0745
|
BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) |
2 |
|
|
11 |
275-2056
|
SCREW, HEX, M8 X 1.25 X 50, FL, SS (Tennant Industrial) |
2 |
|
|
12 |
175-7920
|
Washer M8 flat stainless steel |
2 |
|
|
13 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
14 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
15 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
16 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
17a |
675-7631
|
COVER, PRESWP, AFMKT [T17] (Tennant Industrial) |
1 |
(includes 17b-34) |
|
17b |
675-5127
|
COVER, PRESWEEP (AS TRIMMED) [T17] (Tennant Industrial) |
1 |
(cover only) |
|
18 |
175-1224
|
Hinge |
1 |
|
|
19 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
5 |
|
|
20 |
575-2034
|
BRACKET, CATCH, COVER, SAFTEY ROD (Tennant Industrial) |
1 |
|
|
21 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
22 |
275-5594
|
Gasket (Tennant Industrial) |
1 |
|
|
23 |
275-5588
|
Hopper screen plate weldment (Tennant Industrial) |
1 |
|
|
24 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
25 |
275-5589
|
Filter box gasket (Tennant Industrial) |
1 |
|
|
26 |
375-7802
|
Latch |
2 |
|
|
27 |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
4 |
|
|
28 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
4 |
|
|
29 |
275-5590
|
Headlight mounting bracket (Tennant Industrial) |
2 |
|
|
30 |
275-7763
|
Pre-sweep light assembly (Tennant Industrial) |
2 |
|
|
31 |
999-1222
|
Screw M3-.5 x 10mm pan head stainless steel |
6 |
|
|
32 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
6 |
|
|
33 |
175-2146
|
Screw 6-20 x 1/2 pan head |
6 |
|
|
34 |
275-5197
|
Fir tree clip |
3 |
|
|
35 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
1 |
|
|
36 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
37 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
38 |
675-5114
|
ROD WLDT, SAFETY, HOPPER COVER (Tennant Industrial) |
1 |
|
|
