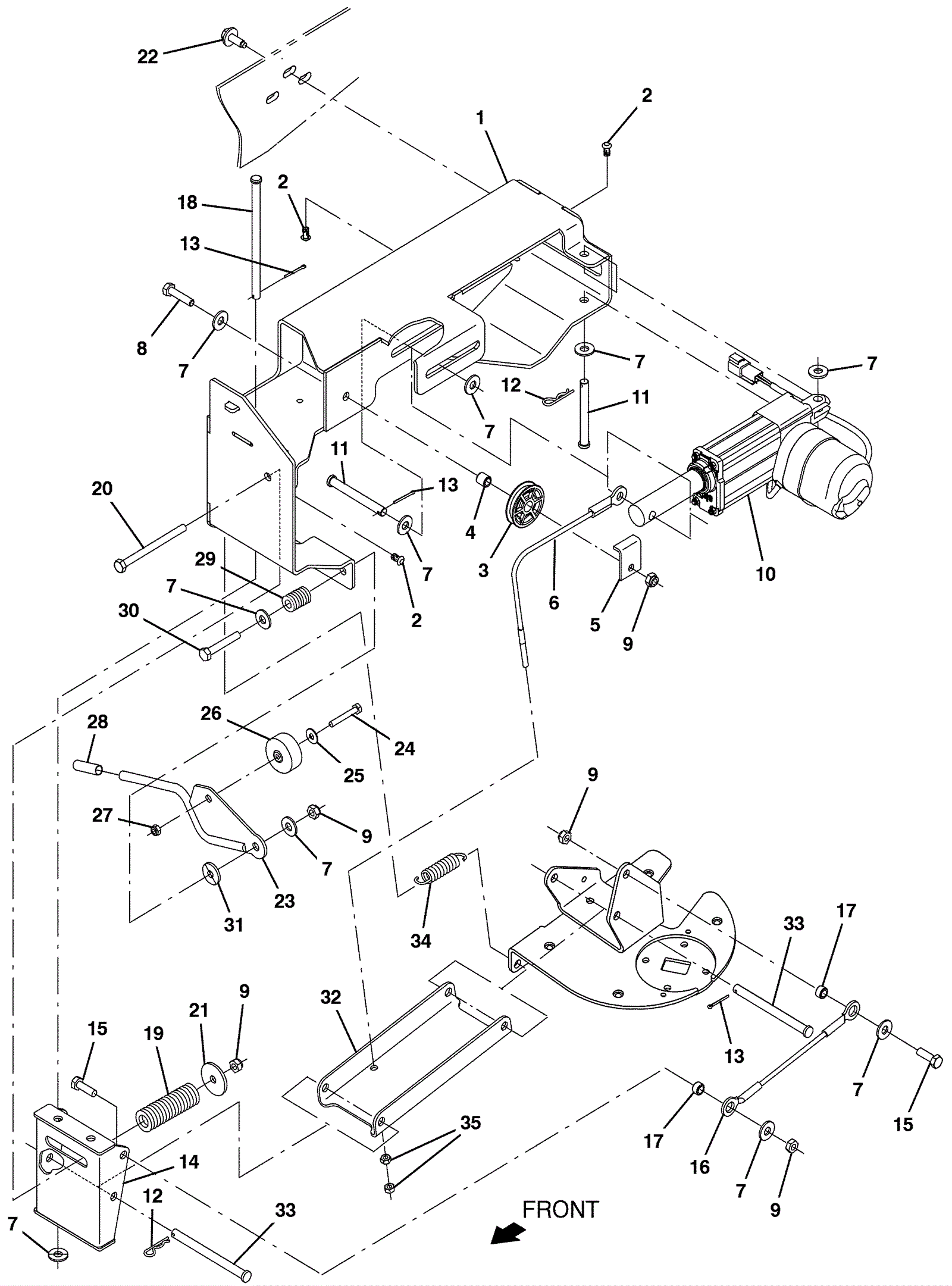

Left Side Sweeping Side Brush Lift Assembly

#PartDescription ReqNotesAvailability
1a 675-1436 HOUSING WLDT, SBA, LH (Tennant Industrial) 1 (before SN 011000)
1b 675-2332 HOUSING WLDT, SBA, LH (Tennant Industrial) 1 (after SN 010999)
2 275-5370 Clip 3
3 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) 1
4 175-2249 Sleeve 1
5 275-0058 Cable keeper angle bracket 1
6 575-1438 CABLE, SS, .09D 10.35L .38EYE/M6-1.0 (Tennant Industrial) 1
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 10
8 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel 5
10 475-3983 ACTUATOR, 36VDC, 2.75STRK, 450LB 1
11 275-8362 PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) 2
12 175-2117 Cotter pin 2
13 175-2588 Cotter pin 3
14a 575-7503 BRACKET WLDT, PIVOT, SBA (Tennant Industrial) 1 (before SN 011000)
14b 575-5657 BRACKET WLDT, PIVOT, SBA (Tennant Industrial) 1 (after SN 010999)
15 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
16 575-1791 CABLE, SS, .09D 7.87L .50EYE/.50EYE (Tennant Industrial) 1
17 175-2263 Sleeve 2
18 575-1340 PIN, CLEVIS, 0.37D X 6.12L (Tennant Industrial) 1
19 675-2209 SPRING, COMPR, .98OD 2.5L (Tennant Industrial) 1
20 175-0822 SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) 1
21 275-5384 Flat washer (Tennant Industrial) 1
22 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 3
23 575-5299 LEVER WLDT, ADJ, SBA (Tennant Industrial) 1
24 175-0758 Bolt M6-1 x 40mm hex head stainless steel 1
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
26 175-8892 Wheel 1
27 999-0497 Nut M6-1 nylon insert lock stainless steel 1
28 475-7591 COVER, HANDLE (Tennant Industrial) 1
29 175-3284 Compression spring 1
30 999-1297 Screw M8 x 50mm hex head stainless steel 1
31 175-7920 Washer M8 flat stainless steel 1
32 575-2878 BRACKET, ARM, SBA (Tennant Industrial) 1
33 275-2976 PIN, CLEVIS, 0.37D X 4.50L (Tennant Industrial) 2
34 175-3345 Extension spring 1
35 999-1308 Nut M6-1 hex stainless steel 2
