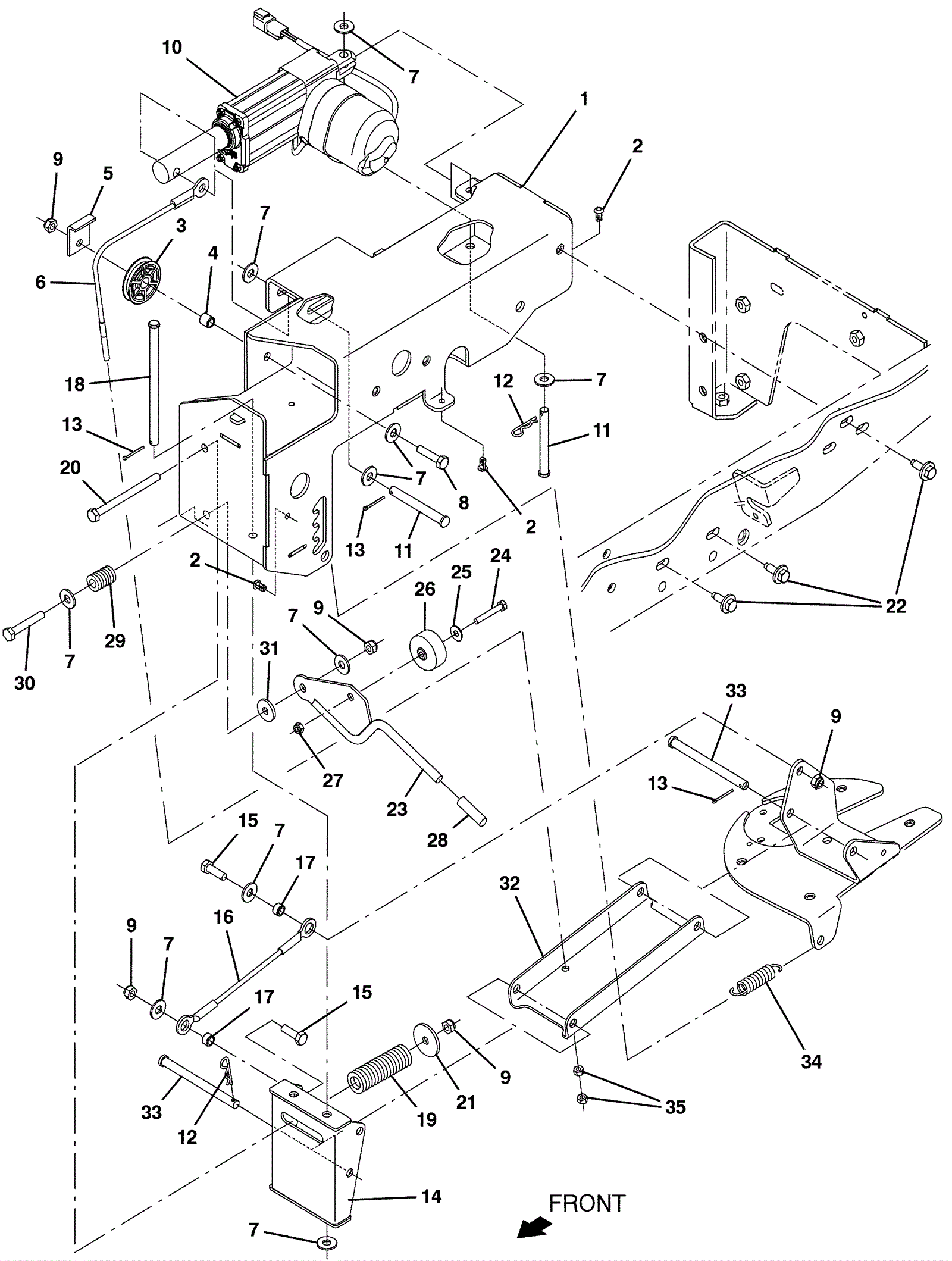

T17 Right Side Sweeping Side Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1a 675-1777 HOUSING WLDT, SBA, RH (Tennant Industrial) $280.89 1 (before SN 011000) usually ships 10-16 days
1b 675-2622 HOUSING WLDT, SBA, RH (Tennant Industrial) $347.74 1 (after SN 010999) usually ships 10-16 days
2 275-5370 Clip $1.98 3 usually ships 1-5 days
3 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) $8.34 1 usually ships 10-16 days
4 175-2249 Sleeve $4.22 1 ships same day
5 275-0058 Cable keeper angle bracket $8.14 1 usually ships 1-5 days
6 575-1438 CABLE, SS, .09D 10.35L .38EYE/M6-1.0 (Tennant Industrial) $21.17 1 usually ships 10-16 days
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 10 ships same day
8 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 5 ships same day
10 475-3983 ACTUATOR, 36VDC, 2.75STRK, 450LB $611.05 1 usually ships 10-16 days
11 275-8362 PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) $9.30 2 ships same day
12 175-2117 Cotter pin $5.28 2 usually ships 10-16 days
13 175-2588 Cotter pin $3.30 3 usually ships 10-16 days
14a 575-7503 BRACKET WLDT, PIVOT, SBA (Tennant Industrial) $104.35 1 (before SN 011000) usually ships 10-16 days
14b 675-2332 HOUSING WLDT, SBA, LH (Tennant Industrial) $324.56 1 (after SN 010999) usually ships 10-16 days
15 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
16 575-1791 CABLE, SS, .09D 7.87L .50EYE/.50EYE (Tennant Industrial) $22.50 1 usually ships 10-16 days
17 175-2263 Sleeve $4.22 2 usually ships 10-16 days
18 575-1340 PIN, CLEVIS, 0.37D X 6.12L (Tennant Industrial) $19.17 1 usually ships 10-16 days
19 675-2209 SPRING, COMPR, .98OD 2.5L (Tennant Industrial) $302.89 1 usually ships 10-16 days
20 175-0822 SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) $8.34 1 usually ships 10-16 days
21 275-5384 Flat washer (Tennant Industrial) $9.50 1 usually ships 10-16 days
22 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.17 3 ships same day
23 575-5299 LEVER WLDT, ADJ, SBA (Tennant Industrial) $64.51 1 usually ships 10-16 days
24 175-0758 Bolt M6-1 x 40mm hex head stainless steel $4.49 1 usually ships 1-5 days
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
26 175-8892 Wheel $5.50 1 usually ships 10-16 days
27 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
28 475-7591 COVER, HANDLE (Tennant Industrial) $3.00 1 usually ships 10-16 days
29 175-3284 Compression spring $17.16 1 usually ships 1-5 days
30 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 1 ships same day
31 175-7920 Washer M8 flat stainless steel $4.49 1 ships same day
32 575-2878 BRACKET, ARM, SBA (Tennant Industrial) $35.17 1 usually ships 10-16 days
33 275-2976 PIN, CLEVIS, 0.37D X 4.50L (Tennant Industrial) $6.67 2 usually ships 10-16 days
34 175-3345 Extension spring $10.01 1 ships same day
35 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
