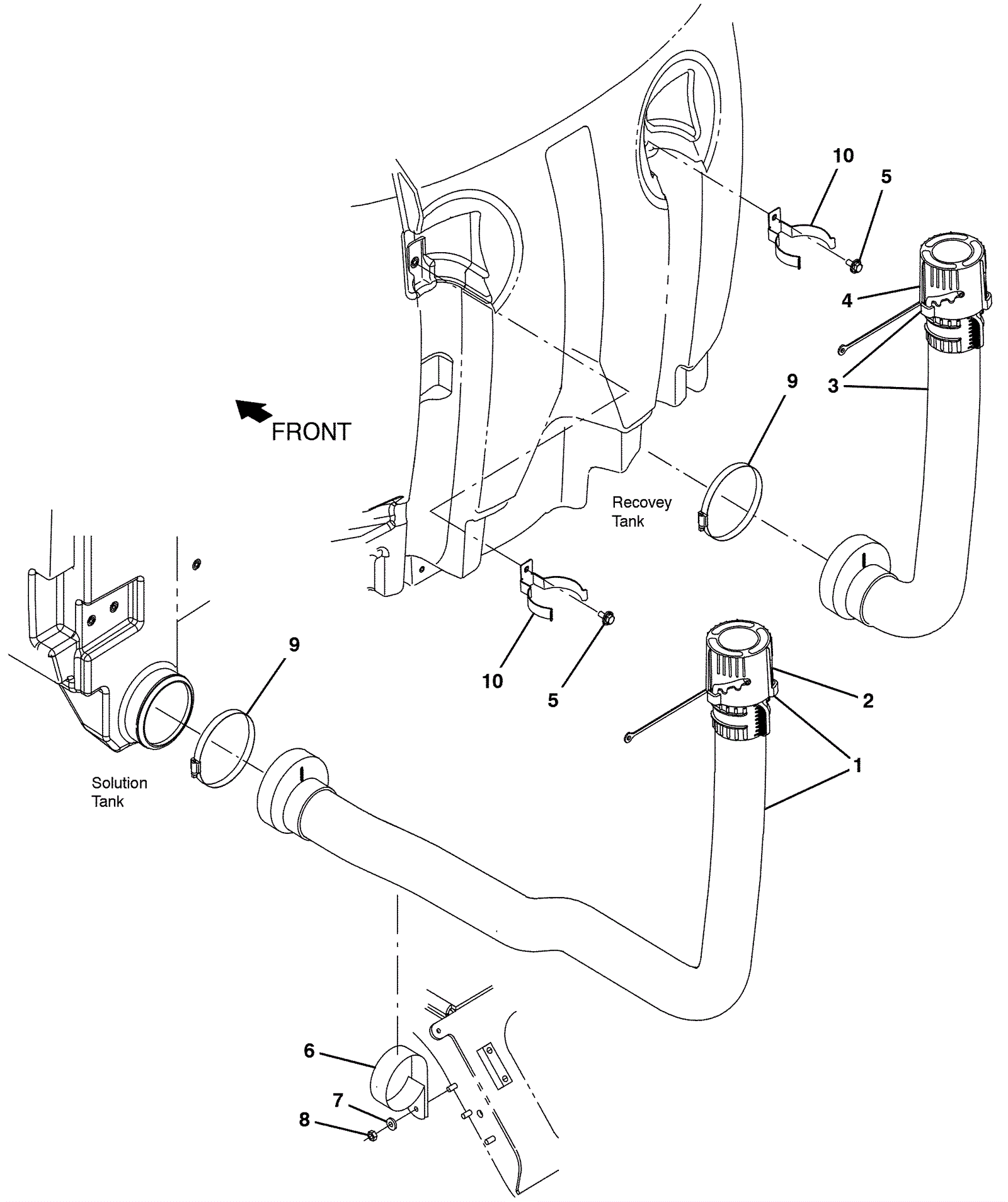

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-1206
|
HOSE ASSY, DRAIN, 3.0 ID 64 L (Tennant Industrial) |
1 |
(before SN 013000) |
|
1b |
675-0674
|
CUFF ASSY, OUTER, DRAIN HOSE (Tennant Industrial) |
1 |
(after SN 012999) |
|
2a |
675-9587
|
HOSE ASSY, DRAIN, 3.0 ID 65 L (Tennant Industrial) |
1 |
(before SN 013000) |
|
2b |
675-0674
|
CUFF ASSY, OUTER, DRAIN HOSE (Tennant Industrial) |
1 |
(after SN 012999) |
|
3 |
575-8464
|
HOSE ASSY, DRAIN, 3.0 ID 35 L (Tennant Industrial) |
1 |
|
|
4 |
675-0674
|
CUFF ASSY, OUTER, DRAIN HOSE (Tennant Industrial) |
1 |
|
|
5 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
6 |
575-1148
|
CLAMP, CABLE, STL, 3.25D X 1.00W, 1HOLE (Tennant Industrial) |
1 |
|
|
7 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
8 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
9 |
275-7688
|
Hose clamp |
2 |
|
|
10 |
575-3205
|
BRACKET, MTG, HOSE (Tennant Industrial) |
2 |
|
|
