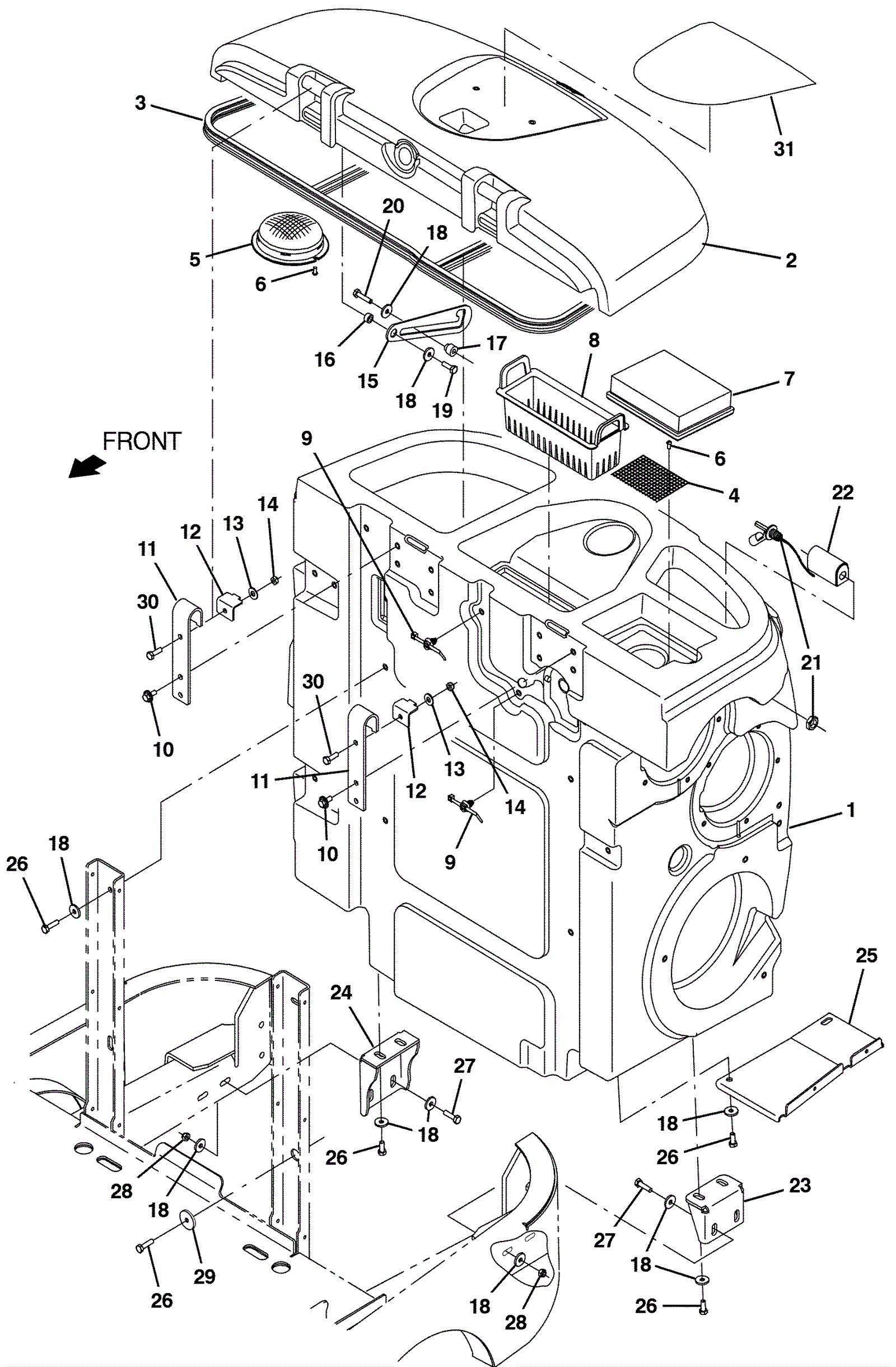

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 675-7556 TANK, REC, AFMKT [T17] (Tennant Industrial) 1
2 675-5309 COVER ASSY, REC TANK, AFMKT [T17] (Tennant Industrial) 1
3 575-6209 SEAL, AFMKT, BULB, DUAL, 12FT [F/.30GAP] (Tennant Industrial 1
4 575-0899 SCREEN, SAFETY, VAC FAN (Tennant Industrial) 1
5 275-2445 Vacuum screen (Tennant Industrial) 1
6 175-5918 SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial 4
7 175-3363 Fan filter 1
8 575-1905 TRAY, DEBRIS, TANK (Tennant Industrial) 1
9 275-5197 Fir tree clip 2
10 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
11 575-1936 BRACKET, MTG, COVER, RECVY TANK (Tennant Industrial) 2
12 475-9987 BRACKET, RETAIN, HINGE, COVER (Tennant Industrial) 2
13 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
15 275-7686 Arm plate (Tennant Industrial) 1
16 675-9891 Spacer 1
17 175-3057 Bushing 1
18 175-7920 Washer M8 flat stainless steel 19
19 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
20 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
21 175-9554 Float switch 1
22 275-4664 Float switch protector bracket 1
23 575-4110 BRACKET, MTG, TANK, RECVY, LH (Tennant Industrial) 1
24 575-4974 BRACKET, MTG, TANK, RECVY, RH (Tennant Industrial) 1
25 575-3608 BRACKET, SPPT, HOSE, DRAIN (Tennant Industrial) 1
26 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 10
27 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
28 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
29 275-5384 Flat washer (Tennant Industrial) 1
30 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
31 575-4398 LABEL, HOLE, COVER, RECVY TANK (Tennant Industrial) 1
