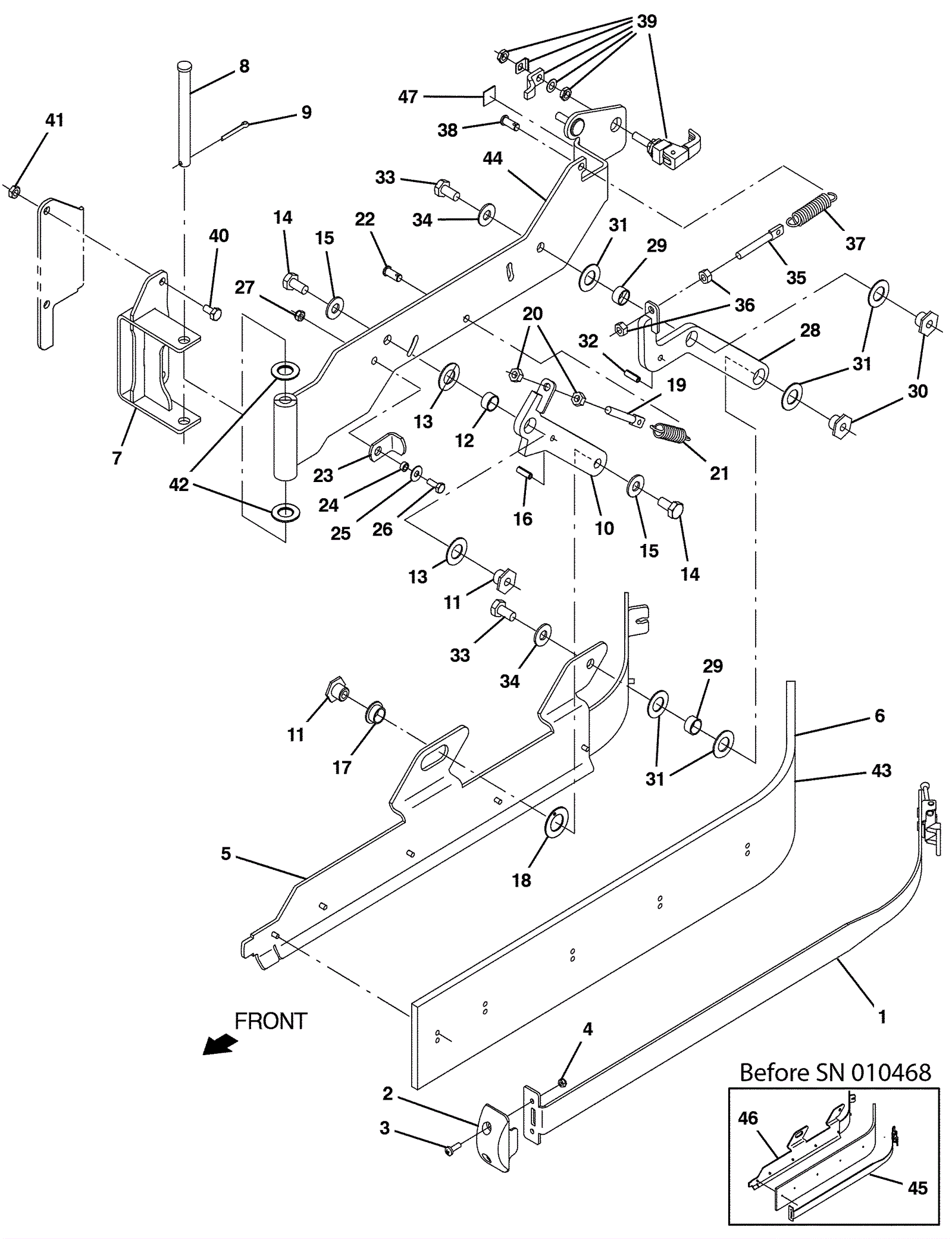

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-7934
|
RETAINER ASSY, SIDE SQGE, WITH LATCH (Tennant Industrial) |
1 |
(after SN 010467) |
|
2 |
575-0946
|
GUIDE, SQGE, SIDE (Tennant Industrial) |
1 |
(after SN 010467) |
|
3 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
(after SN 010467) |
|
4 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
(after SN 010467) |
|
5 |
575-8762
|
HOLDER WLDT, BLADE, LH (Tennant Industrial) |
1 |
(after SN 010467) |
|
6 |
575-9397
|
BLADE, SQGE, SIDE, linatex (Tennant Industrial) |
1 |
|
|
7 |
575-5198
|
BRACKET WLDT, PIVOT, SQGE (Tennant Industrial) |
1 |
|
|
8 |
275-3981
|
PIN, CLEVIS, 0.50D X 5.00L (Tennant Industrial) |
1 |
|
|
9 |
175-0532
|
Cotter pin |
1 |
|
|
10 |
575-6518
|
ARM WLDT, FRONT, LH (Tennant Industrial) |
2 |
|
|
11 |
275-9507
|
NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial) |
1 |
|
|
12 |
175-3349
|
Sleeved bushing |
1 |
|
|
13 |
175-3347
|
Washer .61 thrust |
2 |
|
|
14 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
|
|
15 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
16 |
175-0768
|
PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) |
1 |
|
|
17 |
175-3460
|
Flanged bushing |
1 |
|
|
18 |
275-7611
|
Thrust washer |
1 |
|
|
19 |
175-0772
|
BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial |
1 |
|
|
20 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
21 |
275-2236
|
SPRING, EXTN, 0.75OD 0.10WIR 03.0L |
1 |
|
|
22 |
175-0655
|
Clevis pin |
1 |
|
|
23 |
175-0776
|
BRACKET, LATCH, DBL SCB, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
24 |
175-0777
|
P/M sleeve |
1 |
|
|
25 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
26 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
27 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
28 |
575-6159
|
ARM WLDT, REAR, LH (Tennant Industrial) |
1 |
|
|
29 |
175-3349
|
Sleeved bushing |
2 |
|
|
30 |
275-9507
|
NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial) |
2 |
|
|
31 |
175-3347
|
Washer .61 thrust |
5 |
|
|
32 |
175-0768
|
PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) |
1 |
|
|
33 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
|
|
34 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
35 |
175-0772
|
BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial |
1 |
|
|
36 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
37 |
275-2236
|
SPRING, EXTN, 0.75OD 0.10WIR 03.0L |
1 |
|
|
38 |
175-0655
|
Clevis pin |
1 |
|
|
39 |
275-7341
|
Latch (yellow) |
1 |
|
|
40 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
41 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
42 |
175-3347
|
Washer .61 thrust |
2 |
|
|
43a |
675-2836
|
BLADE, SQGE, SIDE, URE (Tennant Industrial) |
1 |
(optional) |
|
43b |
575-7995
|
BLADE, SQGE, SIDE, GUM (Tennant Industrial) |
1 |
(optional) |
|
44 |
575-7486
|
ARM WLDT, LH (Tennant Industrial) |
1 |
|
|
45 |
575-6986
|
RETAINER WLDT, SIDE SQGE, WITH LATCH (Tennant Industrial) |
1 |
(before SN 010468) |
|
46 |
575-8118
|
HOLDER WLDT, BLADE, LH (Tennant Industrial) |
1 |
(before SN 010468) |
|
47 |
375-7041
|
Gasket |
1 |
|
|
KIT1 |
675-4123
|
SQUEEGEE KIT, SIDE, LH (Tennant Industrial) |
1 |
(after SN 010467) (includes 1-6) |
|
KIT2 |
675-2260
|
ARM KIT, SQGE, FRONT, LH, AFMKT [T17] (Tennant Industrial) |
1 |
(includes 10-22) |
|
KIT3 |
675-2279
|
ARM KIT, SQGE, REAR, LH, AFMKT [T17] (Tennant Industrial) |
1 |
(includes 28-38) |
|
