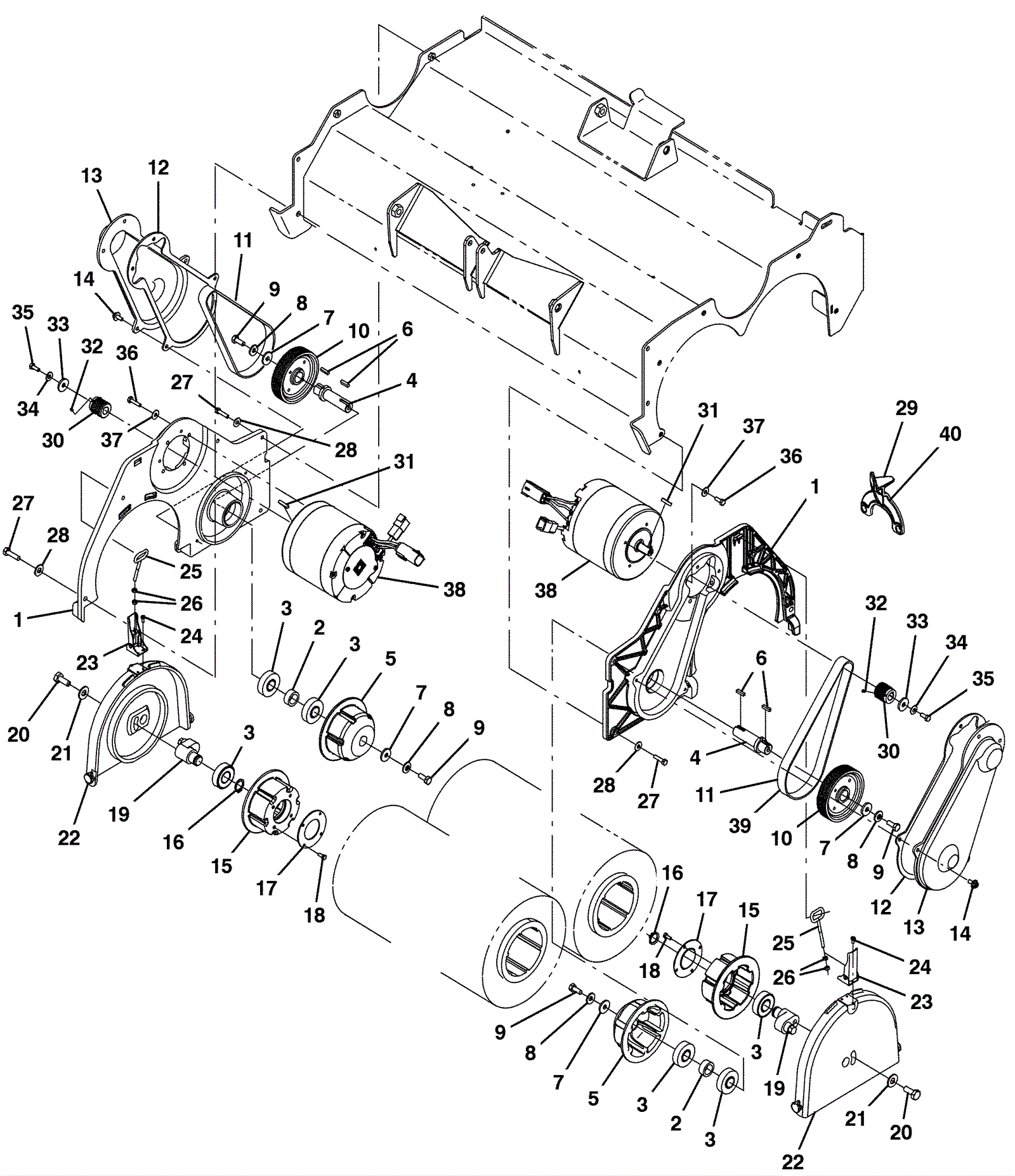

Scrub Head Drive Motor Assembly (Clindrical)

#PartDescription ReqNotesAvailability
1 675-1009 PLATE, SIDE, WRAP (Tennant Industrial) 1
2 575-1556 SPACER, BRG (Tennant Industrial) 1
3 175-9072 Ball bearing 3
4 575-9788 SHAFT, DRIVE, BRUSH (Tennant Industrial) 1
5 575-7484 PLUG, DRIVE, BRUSH (Tennant Industrial) 1
6 175-8818 Square keyway 2
7 175-7920 Washer M8 flat stainless steel 2
8 999-1407 Washer 5/16 belleville 2
9 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
10 575-6831 SHEAVE, 09GRV, 4.13PD 0.75B [PJ] (Tennant Industrial) 1
11 575-4179 BELT, DRIVE, CYL [T17] (Tennant Industrial) 1
12 575-0495 GASKET, BELT, COVER (Tennant Industrial) 1
13 575-1720 COVER, BELT (Tennant Industrial) 1
14 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
15 575-6566 PLUG, IDLER, BRUSH (Tennant Industrial) 1
16 275-2003 Retaining ring (Tennant Industrial) 1
17 275-6557 Bearing retainer (Tennant Industrial) 1
18 999-1220 Screw M5-.8 x 12mm hex head stainless steel 4
19 575-5574 CAM, ADJ, BRUSH (Tennant Industrial) 1
20 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 1
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
22 575-8182 COVER, PLUG, IDLER (Tennant Industrial) 1
23 575-2393 LATCH (Tennant Industrial) 1
24 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 3
25 275-8633 HOOK WLDT, LATCH (Tennant Industrial) 1
26 275-3158 NUT, HEX, STD, M5 X 0.80, 8 (Tennant Industrial) 2
27 999-1087 Bolt M6-1 x 25mm hex head stainless steel 5
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
29 575-8641 TOOL, INSTALLATION, BELT [T17] (Tennant Industrial) 1
30 575-7056 SHEAVE, 09GRV, 1.18PD 0.55B [PJ] (Tennant Industrial) 1
31 275-1468 Square keyway 1
32 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 1
33 175-7920 Washer M8 flat stainless steel 1
34 275-0092 Washer 1/4 flat belleville 1
35 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 1
36 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
38 675-7639 MOTOR, ELE, 36VDC, 1750 RPM 1.5HP (Tennant Industrial) 1
39 575-4179 BELT, DRIVE, CYL [T17] (Tennant Industrial) 1
40 575-8641 TOOL, INSTALLATION, BELT [T17] (Tennant Industrial) 1
KIT1 675-6809 PANEL ASSY, CYL, AFMKT [T17] (Tennant Industrial) 2 (includes 1-29)
KIT2 575-8646 COVER KIT, BELT, CYL, AFMKT [T7] (Tennant Industrial) 1 (includes 12-14)
KIT3 675-4018 DOOR ASSY, IDLER, CYL, AFMKT [T17] (Tennant Industrial) 2 (includes 15-26)
KIT4 675-8008 MOTOR ASSY, CYL, AFMKT [T17] (Tennant Industrial) 2 (includes 30-38)
KIT5 675-2621 BELT KIT, CYL, AFMKT [T17] (Tennant Industrial) 2 (includes 39 and 40)
