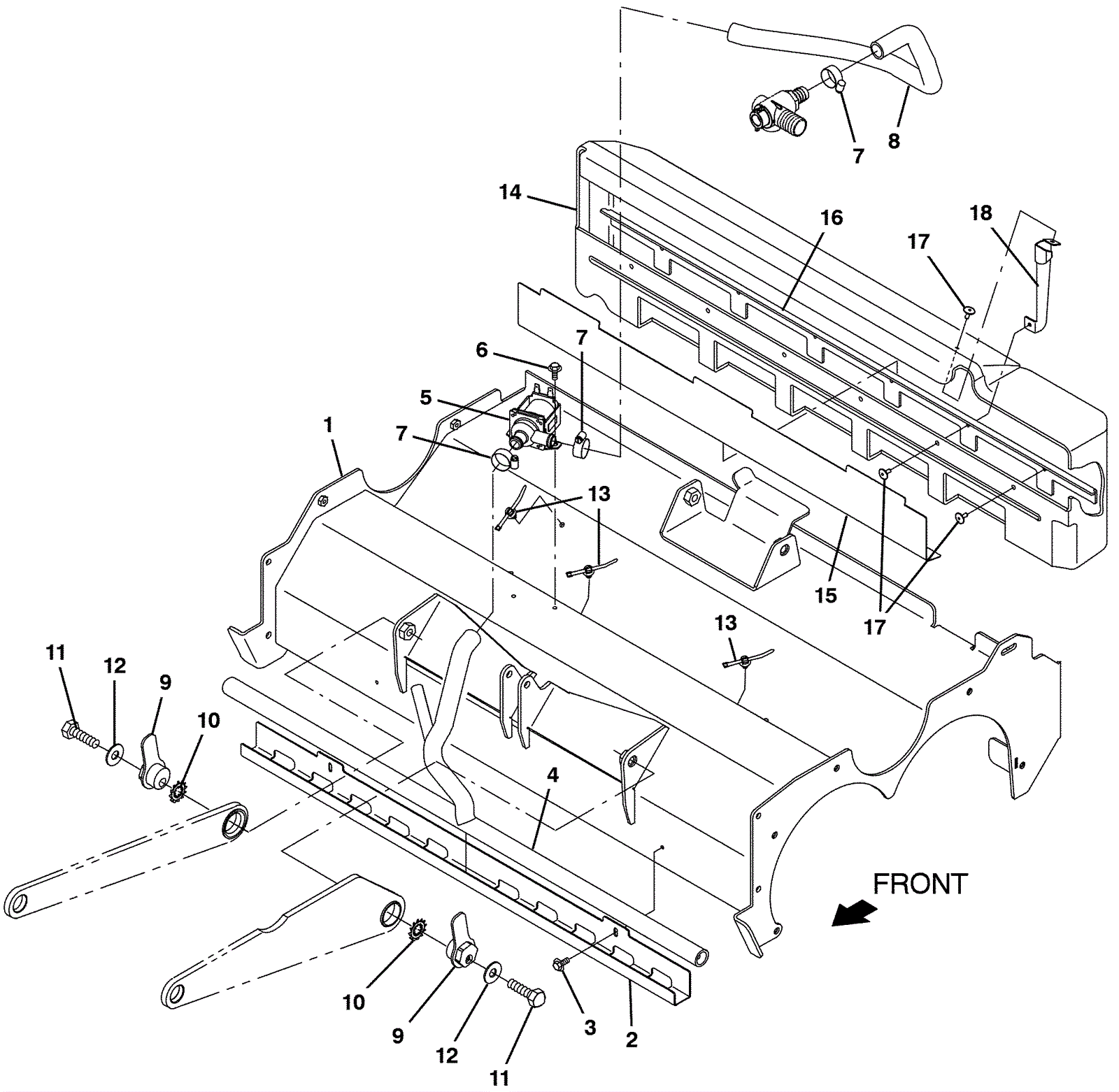

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-4873
|
HOUSING WLDT, SCB, CYL (Tennant Industrial) |
1 |
|
|
2 |
575-6273
|
CLAMP BRACKET, DISTRIBUTION (Tennant Industrial) |
1 |
|
|
3 |
999-1228
|
Screw M5-.8 x 10mm hex head stainless steel |
2 |
|
|
4 |
675-2208
|
MANIFOLD, BAR, SPRAY (Tennant Industrial) |
1 |
|
|
5a |
675-0197
|
VALVE KIT, REPLACEMENT 36V HI FLOW (Tennant Industrial) |
1 |
(before SN 011670) |
|
5b |
675-0825
|
VALVE, WATER, SOLENOID - 36V (Tennant Industrial) |
1 |
(after SN 011669) |
|
6 |
175-3298
|
Bolt M6-1 x 12mm hex head |
2 |
|
|
7 |
175-0199
|
Hose clamp |
3 |
|
|
8 |
575-5243
|
HOSE, AFMKT, PVC, WIR, 0.75ID, 03FT, CLR (Tennant Industrial |
1 |
|
|
9 |
575-3778
|
PIVOT WLDT (Tennant Industrial) |
2 |
|
|
10 |
475-8613
|
WASHER, LOCK, INT-EXT, 0.50 (Tennant Industrial) |
2 |
|
|
11 |
275-2834
|
SCREW, HEX, M12 X 1.75 X 50, 8.8 (Tennant Industrial) |
2 |
|
|
12 |
475-7754
|
WASHER, FLAT, 0.50B 1.25D 0.8, STL, PL (Tennant Industrial) |
2 |
|
|
13 |
275-5197
|
Fir tree clip |
3 |
|
|
14 |
675-3767
|
HOPPER, DEBRIS, TRIMMED (Tennant Industrial) |
1 |
|
|
15 |
575-6738
|
ANGLE, STL, PERFORATED .03 (Tennant Industrial) |
1 |
|
|
16 |
575-7558
|
LIP, TRAY, DEBRIS (Tennant Industrial) |
1 |
|
|
17 |
275-3075
|
Pop rivet |
7 |
|
|
18 |
275-3075
|
Pop rivet |
1 |
|
|
KIT1 |
675-5692
|
TRAY KIT, DEBRIS, CYL, AFMKT [T17] (Tennant Industrial) |
1 |
(includes 14-18) |
|
