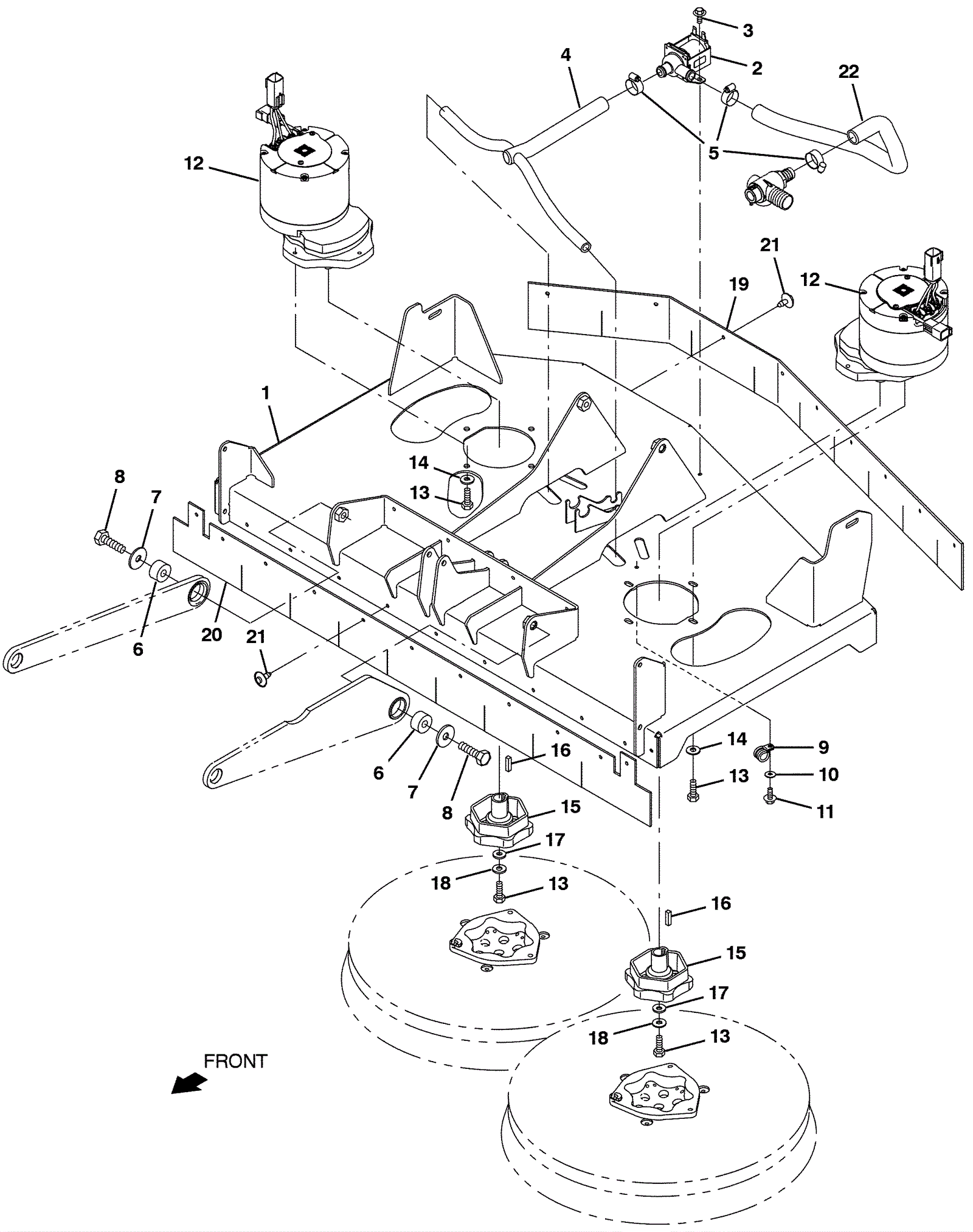

Scrub Head and Drive Motor Assembly (Disk)

#PartDescription ReqNotesAvailability
1a 675-5279 HEAD WLDT, DISK (Tennant Industrial) 1 (before SN 011000)
1b 675-5840 HEAD WLDT, DISK (Tennant Industrial) 1 (after SN 010999)
2a 675-0197 VALVE KIT, REPLACEMENT 36V HI FLOW (Tennant Industrial) 1 (before SN 011670)
2b 675-0825 VALVE, WATER, SOLENOID - 36V (Tennant Industrial) 1 (after SN 011669)
3 175-3298 Bolt M6-1 x 12mm hex head 2
4 575-9742 MANIFOLD, SOLTN (Tennant Industrial) 1
5 175-0199 Hose clamp 3
6 575-6280 HOSE, AFMKT, PVC, BRD, 0.25ID, 01FT (Tennant Industrial) 2
7 175-7303 1/4 inch union tee 1
8 175-7808 1/2 inch insulated P clamp 2
9 275-0563 CLAMP, CABLE, STL, 0.75D X 0.75W, 1HOLE 2
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
11 999-0778 Screw M6-1 x 10mm hex head 2
12 675-7828 MOTOR, ELE, 36VDC, 350 RPM 1.5HP GEAR (Tennant Industrial) 1
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
14 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
15 175-9525 Brush drive hub 1
16 175-5356 Square keyway 1
17 999-1407 Washer 5/16 belleville 1
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
19 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
20 575-2912 SKIRT, RBR, REAR (Tennant Industrial) 1
21 575-4397 SKIRT, RBR, FRONT (Tennant Industrial) 1
22 175-3378 Rivet 1/4 x 57/64 plastic 20
23 575-2945 PIVOT, LIFT (Tennant Industrial) 2
24 475-9154 WASHER, FLAT, 0.5B 1.5D .12, STL, PL (Tennant Industrial) 2
25 175-0647 SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) 2
26 575-5243 HOSE, AFMKT, PVC, WIR, 0.75ID, 03FT, CLR (Tennant Industrial 1
KIT1 675-8160 MOTOR ASSY, DISK, AFMKT [T17] (Tennant Industrial) 2 (includes 12-19)
KIT2 575-9634 SKIRT KIT, DISK, AFMKT [T17] (Tennant Industrial) 1 (includes 20-22)
