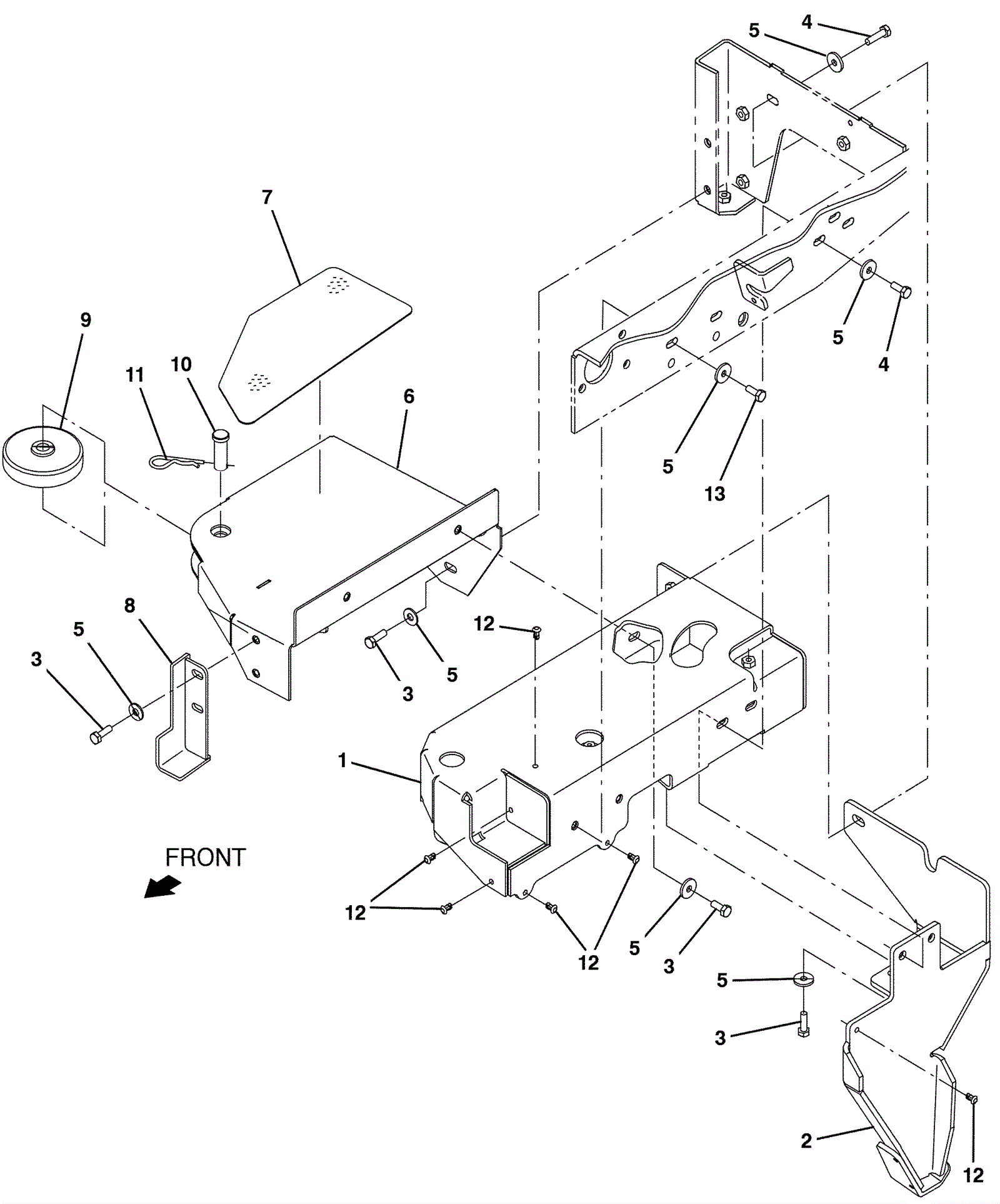

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-4127
|
COVER WLDT, SBA (Tennant Industrial) |
1 |
(before SN 011000) |
|
1b |
675-4874
|
COVER WLDT, SBA (Tennant Industrial) |
1 |
(after SN 010999) |
|
2a |
675-3185
|
BRACKET WLDT, SKID, ANTI-ROLL (Tennant Industrial) |
1 |
(before SN 011000) |
|
2b |
675-2969
|
BRACKET WLDT, SKID, ANTI-ROLL (Tennant Industrial) |
1 |
(after SN 010999) |
|
3 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
4 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
3 |
|
|
5 |
175-7920
|
Washer M8 flat stainless steel |
12 |
|
|
6 |
675-2730
|
BRACKET WLDT, STEP, SBA (Tennant Industrial) |
1 |
|
|
7 |
575-0611
|
TREAD, NON-SKID-STEP, 6.3W 12.8L, SBA (Tennant Industrial) |
1 |
|
|
8 |
575-7132
|
DOOR WLDT, MTG, SBA (Tennant Industrial) |
1 |
|
|
9 |
275-2208
|
WHEEL, 04.0D 0.89W 0.64B |
1 |
|
|
10 |
475-8571
|
PIN, CLEVIS, 0.625D X 1.75L (Tennant Industrial) |
1 |
|
|
11 |
275-0028
|
Cotter hair pin |
1 |
|
|
12 |
275-5370
|
Clip |
6 |
|
|
13 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
