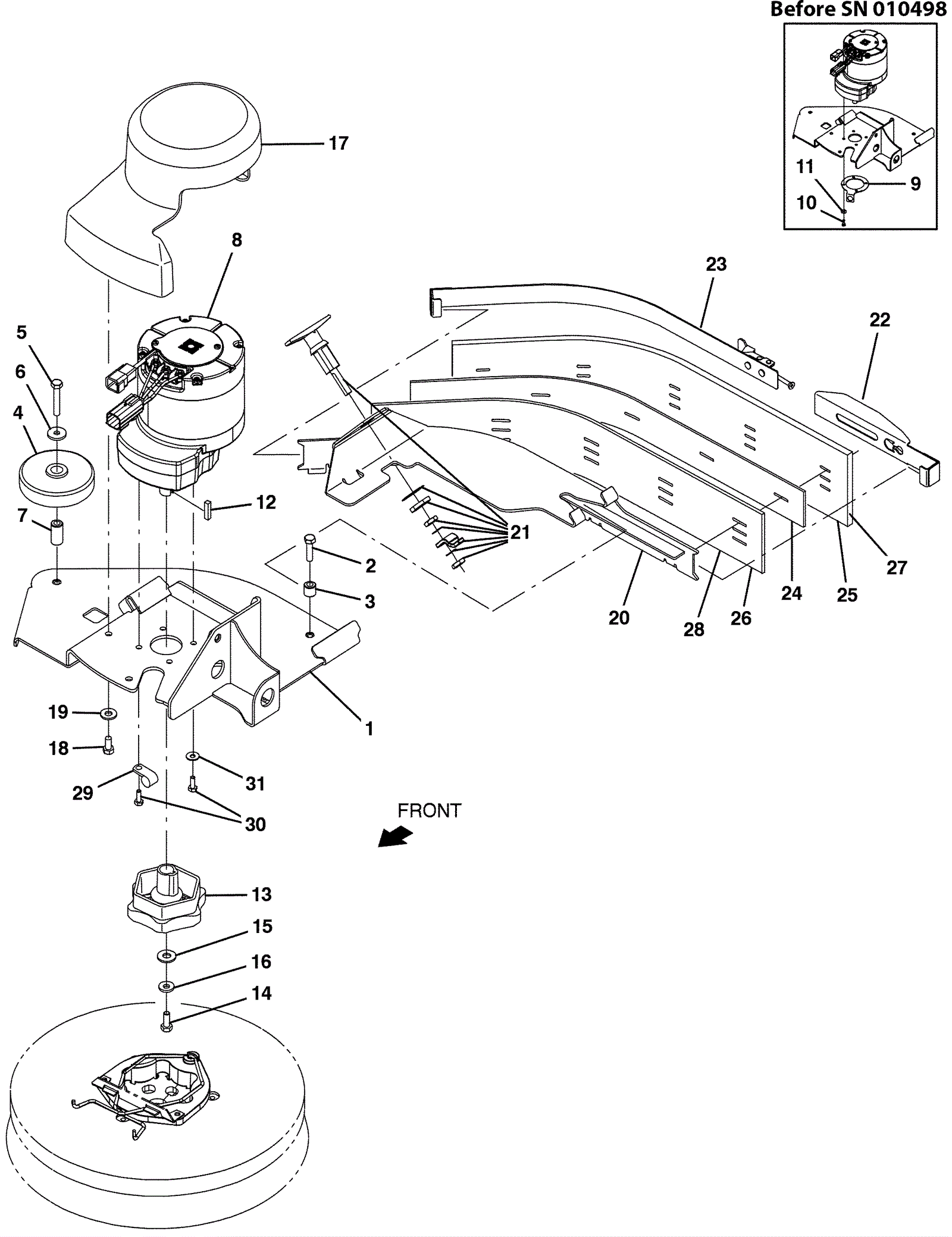

Scrubbing Side Brush Motor and Squeegee Assembly

#PartDescription ReqNotesAvailability
1 675-1879 BRACKET WLDT, DECK (Tennant Industrial) 1
2 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 1
3 175-9347 Sleeve 1
4 275-2208 WHEEL, 04.0D 0.89W 0.64B 1
5 175-2854 Screw M8-1.25 x 45mm hex head stainless steel 1
6 175-7920 Washer M8 flat stainless steel 1
7 275-0855 Tube 1
8 675-7781 MOTOR, ELE, 36 VDC, 350 RPM 1.25 HP GEAR (Tennant Industrial 1
9 575-5019 HOSE KIT, BRUSH, SIDE [T17] (Tennant Industrial) 1 (before SN 010498)
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4 (before SN 010498)
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4 (before SN 010498)
12 175-5356 Square keyway 1
13 175-9525 Brush drive hub 1
14 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
16 999-1407 Washer 5/16 belleville 1
17 675-3652 COVER, MOTOR, SBA, AFMKT [T17] (Tennant Industrial) 1
18 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
KIT1 675-6259 SQUEEGEE ASSY, SBA, AFMKT [T17] (Tennant Industrial) 1 (includes 20-26)
20 575-9356 BRACKET WLDT, SQGE, SBA (Tennant Industrial) 1
21 275-7816 Squeegee compression latch 1
22 275-7817 Squeegee retainer weldment 1
23 575-6648 RETAINER WLDT, SQGE, SBA (Tennant Industrial) 1
24 575-2259 SPACER, BLADE (Tennant Industrial) 1
25 575-9312 BLADE, SQGE, SBA, linatex (Tennant Industrial) 1
26 575-8696 BLADE, SQGE, SBA, INNER (Tennant Industrial) 1
27a 675-2021 BLADE, SQGE, SBA, URE (Tennant Industrial) 1
27b 575-8350 BLADE, SQGE, SBA, GUM (Tennant Industrial) 1
28a 675-1247 BLADE, SQGE, SBA, INNER, URE (Tennant Industrial) 1
28b 575-7281 BLADE, SQGE, SBA, INNER, GUM (Tennant Industrial) 1
29 175-3170 P clamp 1 (after SN 010497)
30 999-9116 Screw M6-1 x 12mm hex head stainless steel 4 (after SN 010497)
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3 (after SN 010497)
