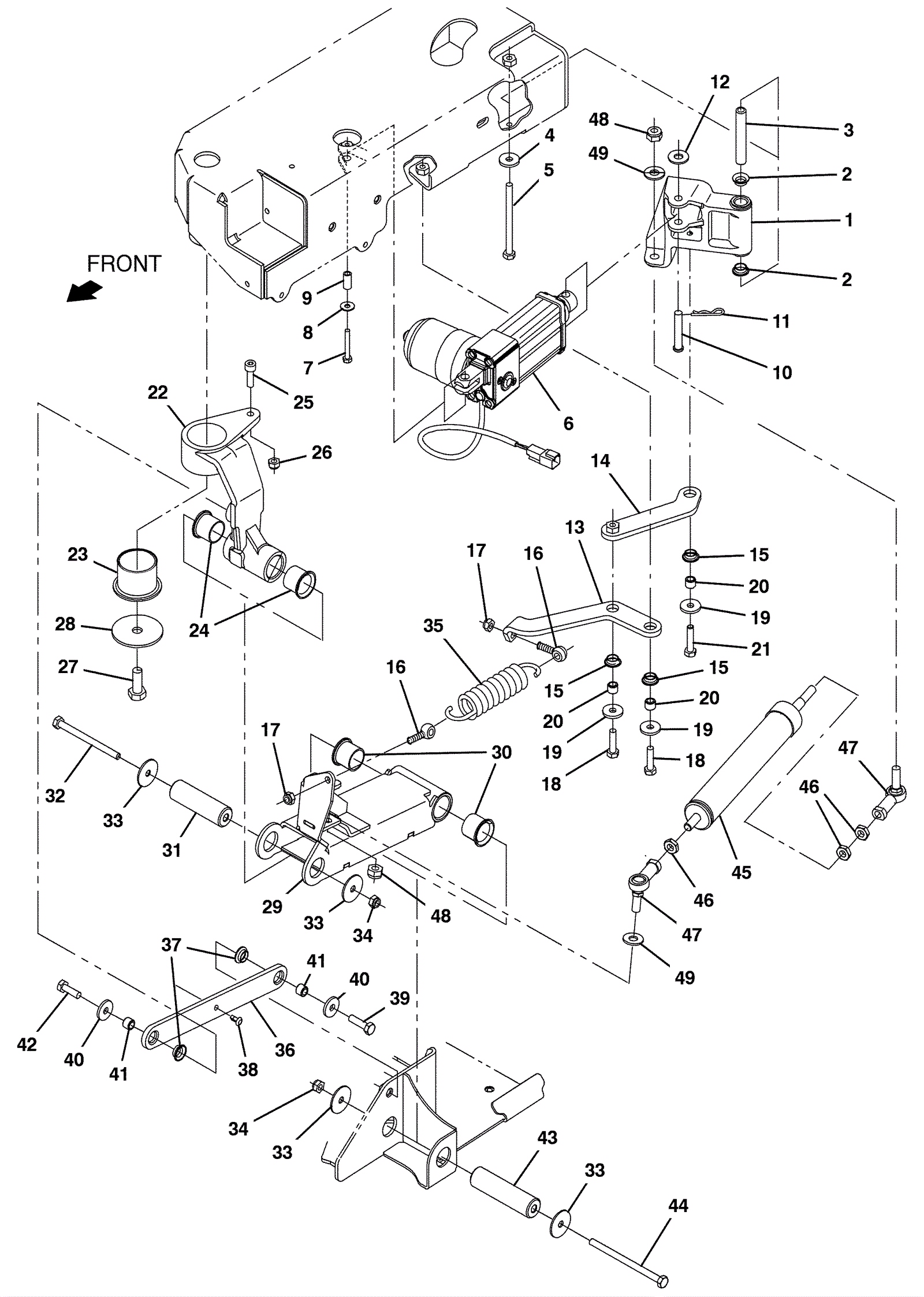

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-4468
|
PIVOT ARM KIT, ACT, SBA, AFMKT [T17] (Tennant Industrial) |
1 |
|
|
2 |
275-7632
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
3 |
575-3204
|
SLEEVE, P/M, 0.32B 0.50D 3.03L (Tennant Industrial) |
1 |
|
|
4 |
175-7920
|
Washer M8 flat stainless steel |
1 |
|
|
5 |
175-0822
|
SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) |
1 |
|
|
6 |
475-3983
|
ACTUATOR, 36VDC, 2.75STRK, 450LB |
1 |
|
|
7 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
9 |
575-0375
|
SLEEVE, P/M, 0.25B 0.38D 0.8L (Tennant Industrial) |
1 |
|
|
10 |
173-1595
|
Clevis pin |
1 |
|
|
11 |
175-2117
|
Cotter pin |
1 |
|
|
12 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
13 |
575-5881
|
ARM, SPRING, TENSIONER (Tennant Industrial) |
1 |
|
|
14 |
575-5700
|
ARM WLDT, SPRING, TENSION (Tennant Industrial) |
1 |
|
|
15 |
275-7632
|
Flanged bushing (Tennant Industrial) |
3 |
|
|
16 |
575-1703
|
BOLT, EYE, M8 X 1.25 X 030MM, 08.00 EYE (Tennant Industrial) |
2 |
|
|
17 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
18 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
19 |
175-7920
|
Washer M8 flat stainless steel |
3 |
|
|
20 |
575-0496
|
SLEEVE, P/M, 0.32B 0.50D 0.4L [430SS] (Tennant Industrial) |
3 |
|
|
21 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
22 |
275-7831
|
Pivot arm kit |
1 |
|
|
23 |
275-7833
|
Flanged bushing |
1 |
|
|
24 |
275-7828
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
25 |
175-0602
|
Screw M8-1.25 x 25mm socket |
1 |
|
|
26 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
27 |
999-6696
|
Bolt M12-1.75 x 30mm stainless steel hex cap screw |
1 |
|
|
28 |
275-7839
|
Washer .48 x 2.50 x .12 flat stainless steel |
1 |
|
|
29a |
675-3418
|
CHANNEL ASSY, LIFT, SBA, AFMKT [T17] (Tennant Industrial) |
1 |
(before SN 011000) |
|
29b |
675-2772
|
CHANNEL ASSY, LIFT, SBA, AFMKT [T17] (Tennant Industrial) |
1 |
(after SN 010999) |
|
30 |
275-7828
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
31 |
575-2139
|
PIN, PIVOT, SBA (Tennant Industrial) |
1 |
|
|
32 |
175-0822
|
SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) |
1 |
|
|
33 |
275-8147
|
Washer 1/3 flat stainless steel |
4 |
|
|
34 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
35 |
275-9451
|
Extension spring (Tennant Industrial) |
1 |
|
|
36 |
675-0001
|
LINK KIT, UPPER, SBA, AFMKT [T17] (Tennant Industrial) |
1 |
|
|
37 |
275-7632
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
38 |
275-5197
|
Fir tree clip |
1 |
|
|
39 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
|
40 |
175-7920
|
Washer M8 flat stainless steel |
2 |
|
|
41 |
575-0496
|
SLEEVE, P/M, 0.32B 0.50D 0.4L [430SS] (Tennant Industrial) |
2 |
|
|
42 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
43 |
575-2443
|
PIN, PIVOT, SBA (Tennant Industrial) |
1 |
|
|
44 |
475-8759
|
SCREW, HEX, M8 X 1.25 X 120, SS (Tennant Industrial) |
1 |
|
|
45 |
275-7834
|
Replacement spring assembly |
1 |
|
|
46 |
999-1625
|
Nut M10-1.5 hex jam stainless steel |
3 |
|
|
47 |
175-0779
|
ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) |
2 |
|
|
48 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
49 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
