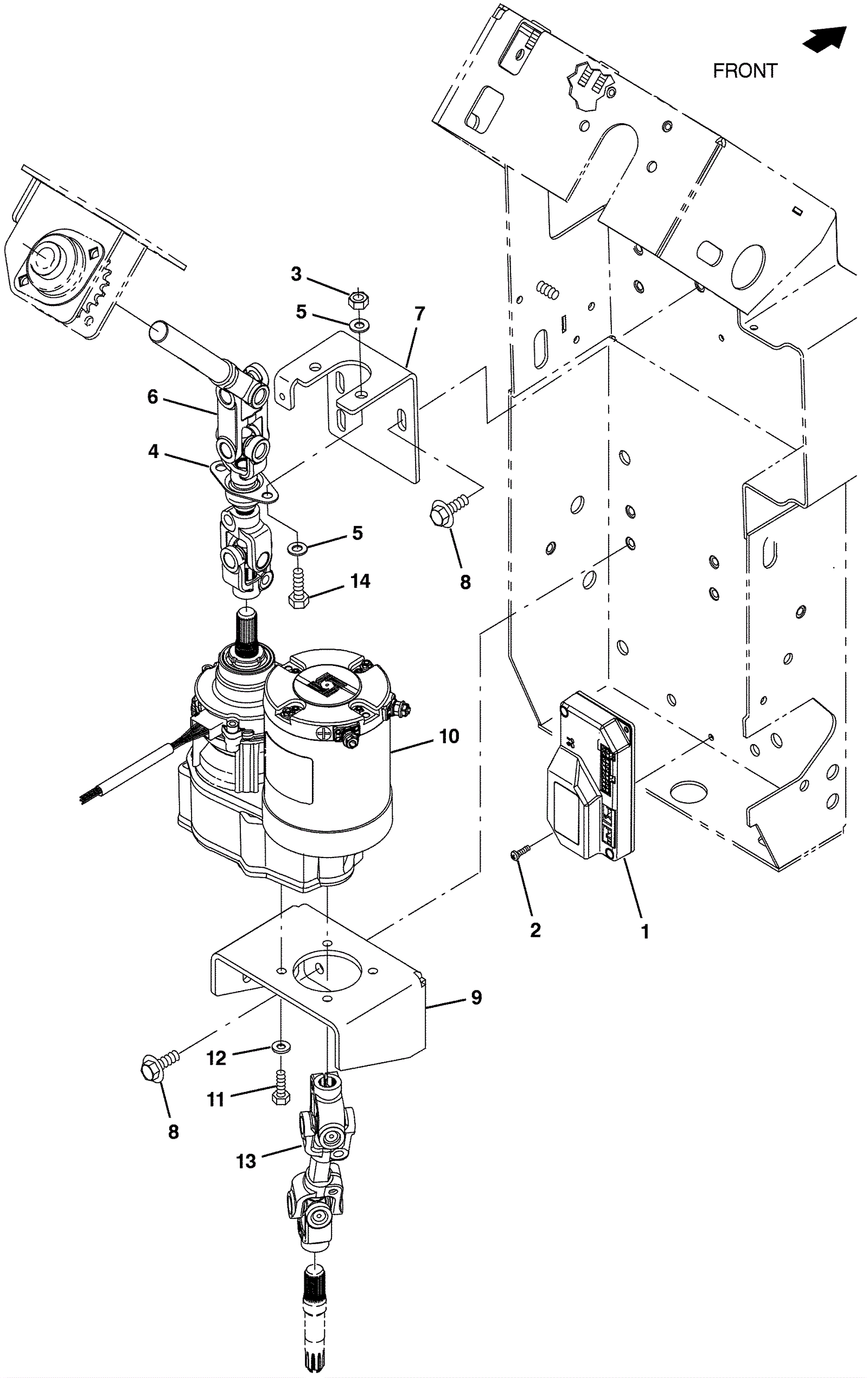

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-9569
|
KIT, CONTROLLER, STEER MOTOR, CI [M17] (Tennant Industrial) |
1 |
(includes 1b and 2) |
|
1b |
175-0337
|
Snap switch |
1 |
|
|
3 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
5 |
|
|
4 |
175-3201
|
Flanged bearing |
1 |
|
|
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
6 |
675-9564
|
Power steering shaft (Tennant Industrial) |
1 |
|
|
7 |
675-9567
|
BRACKET, SHAFT BEARING, STEERING (Tennant Industrial) |
1 |
|
|
7 |
675-9567
|
BRACKET, SHAFT BEARING, STEERING (Tennant Industrial) |
1 |
|
|
8 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
7 |
|
|
9 |
575-7177
|
BRACKET, SPPT, MOTOR (Tennant Industrial) |
1 |
|
|
9 |
575-7177
|
BRACKET, SPPT, MOTOR (Tennant Industrial) |
1 |
|
|
10b |
175-0337
|
Snap switch |
1 |
|
|
11 |
175-4963
|
Bolt M6-1 x 20mm hex head |
4 |
|
|
11 |
175-4963
|
Bolt M6-1 x 20mm hex head |
4 |
|
|
12 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
13 |
675-2186
|
SHAFT, STEERING, POWER, LOWER (Tennant Industrial) |
1 |
|
|
14 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
