| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-4595
|

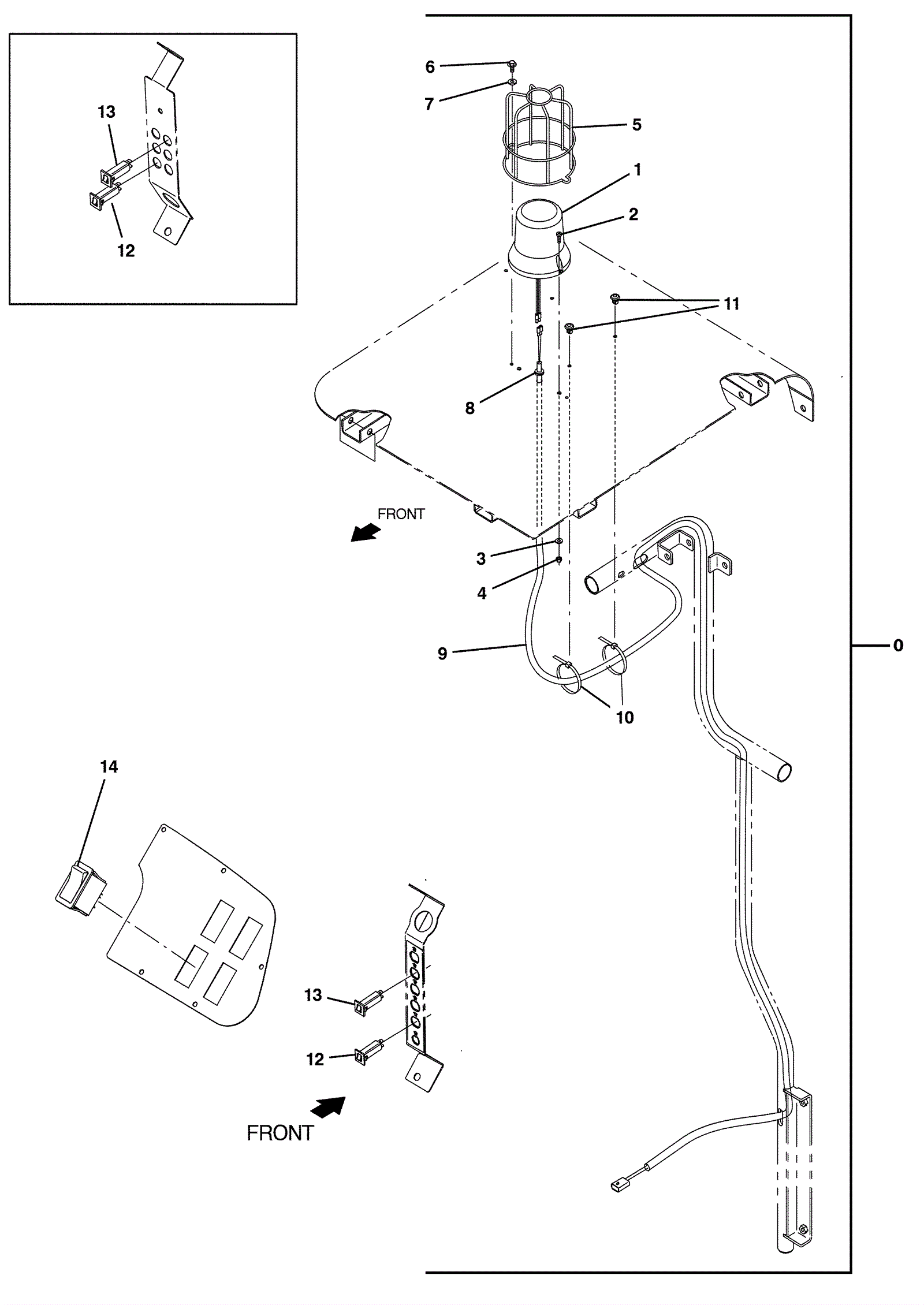

LIGHT KIT, STROBE, OHG, CI [T17] (Tennant Industrial) |
1 |
(includes 1-14) |
|
1 |
275-7765
|
Strobe light |
1 |
|
|
2 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
|
|
4 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
5 |
275-7188
|
Light guard |
1 |
|
|
8 |
175-5419
|
Grommet 5/8 |
1 |
|
|
10 |
175-7795
|
Cable tie |
3 |
|
|
12 |
275-5483
|
2.5amp circuit breaker |
2 |
|
|
13 |
175-5969
|
15amp circuit breaker (Tennant Industrial) |
1 |
|
|
14 |
275-8550
|
SWITCH, ROCKER, PRGRSV (Tennant Industrial) |
1 |
|
|
