T15

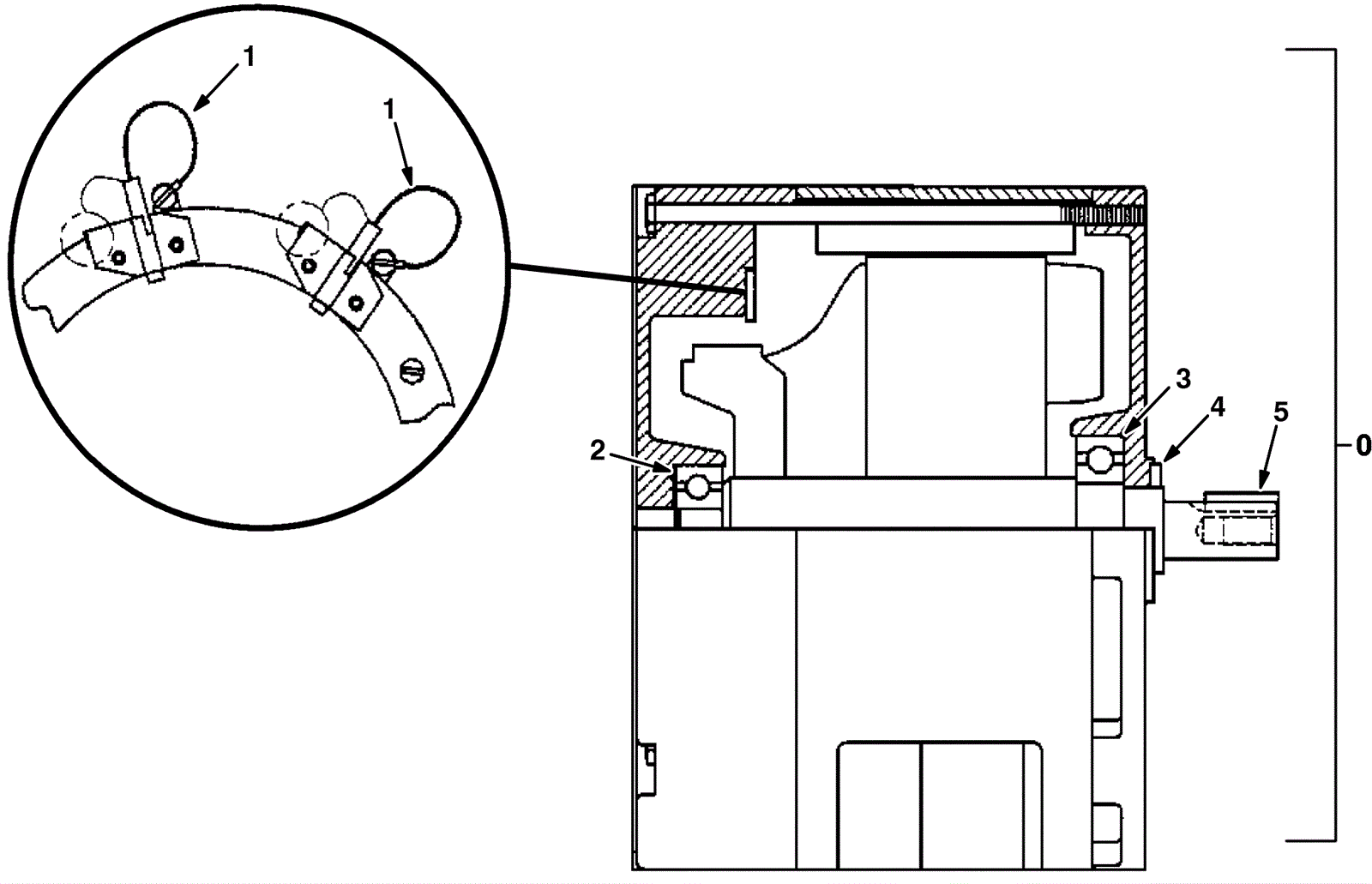

Electric Motor Assembly - 223358
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
0
175-3325
Brush motor kit
$1,432.42
1
(includes 1-5)
usually ships 10-16 days
1
175-5352
Carbon brush (pkg of 4)
$188.32
1
ships same day
2
175-5353
Bearing
$47.52
1
usually ships 10-16 days
3
175-5354
Back end bearing
$43.01
1
usually ships 1-5 days
4
175-5355
Oil seal
$33.11
1
usually ships 1-5 days
5
175-5356
Square keyway
$4.09
1
ships same day
N/S
175-5293
Female connector
$10.23
1
(included with 0)
ships same day
N/S
175-5365
Female terminal
$2.18
2
(included with 0)
usually ships 1-5 days
