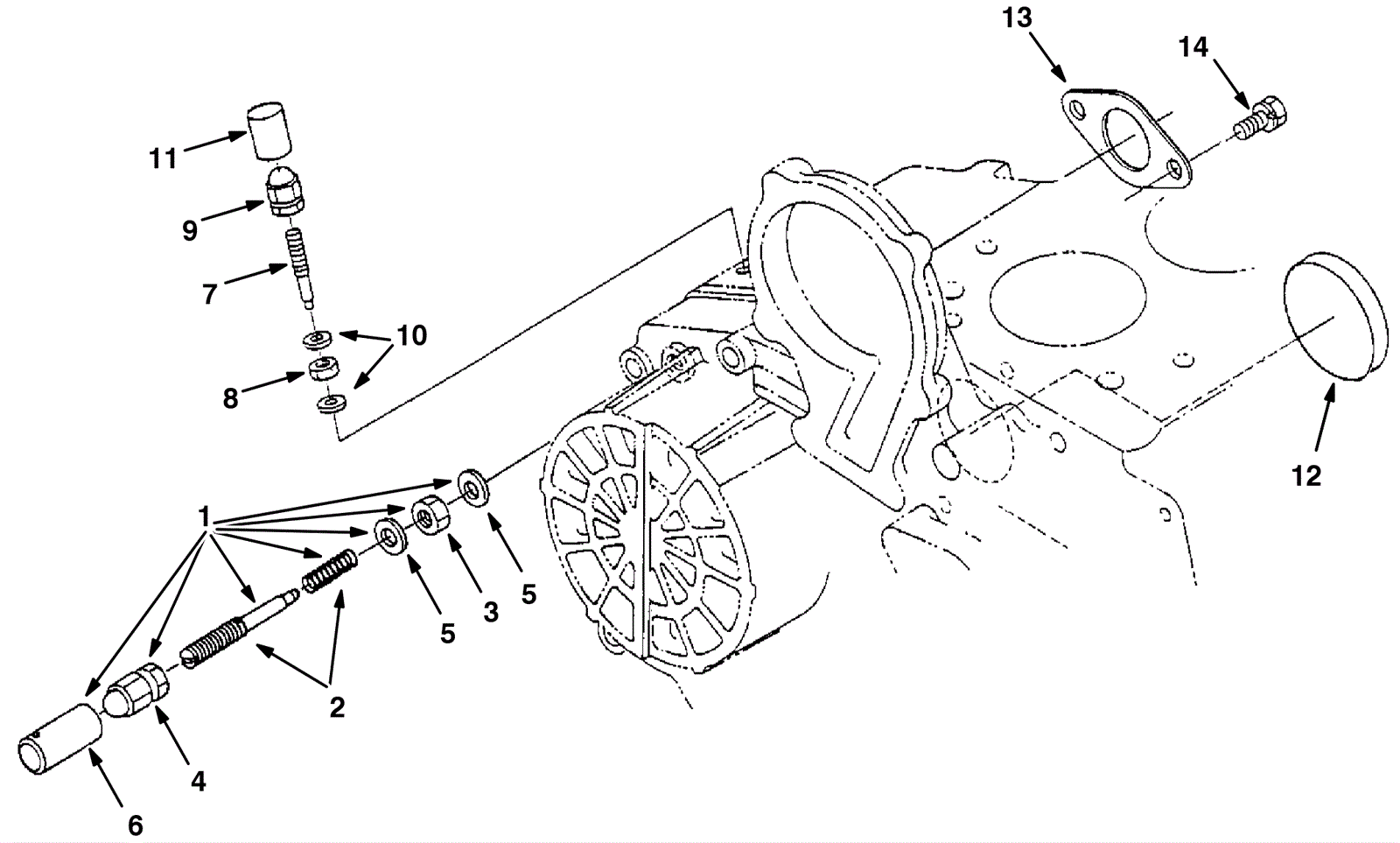

Idling Assembly - Diesel

#PartDescription ReqNotesAvailability
1 275-3673 VR, REGULATOR, IDLE [KU] (Tennant Industrial) 1 (includes 2-6)
2 275-3674 VR, SCREW ASSY, ADJ [KU] (Tennant Industrial) 1
3 175-8488 VR, NUT, HEX [KU] (Tennant Industrial) 1
4 175-8489 VR, NUT [KU] (Tennant Industrial) (OBSOLETE) 1
5 175-8330 VR, GASKET, F/ BOLT [KU] (Tennant Industrial) 2
6 175-8480 VR, CAP, SCREW, IDLER [KU] (Tennant Industrial) 1
7 275-3677 VR, SCREW, ADJ, STOP [KU] (Tennant Industrial) 1
8 175-8488 VR, NUT, HEX [KU] (Tennant Industrial) 1
9 175-8489 VR, NUT [KU] (Tennant Industrial) (OBSOLETE) 1
10 175-8330 VR, GASKET, F/ BOLT [KU] (Tennant Industrial) 2
11 175-8480 VR, CAP, SCREW, IDLER [KU] (Tennant Industrial) 1
12 275-3678 VR, COVER, HOLE, PUMP [KU] (Tennant Industrial) 1
13 275-3680 VR, GASKET, SOLENOID, THROTTLE [KU] (Tennant Industrial) 1
14 175-8363 VR, BOLT, HEX [KU] (Tennant Industrial) 2
