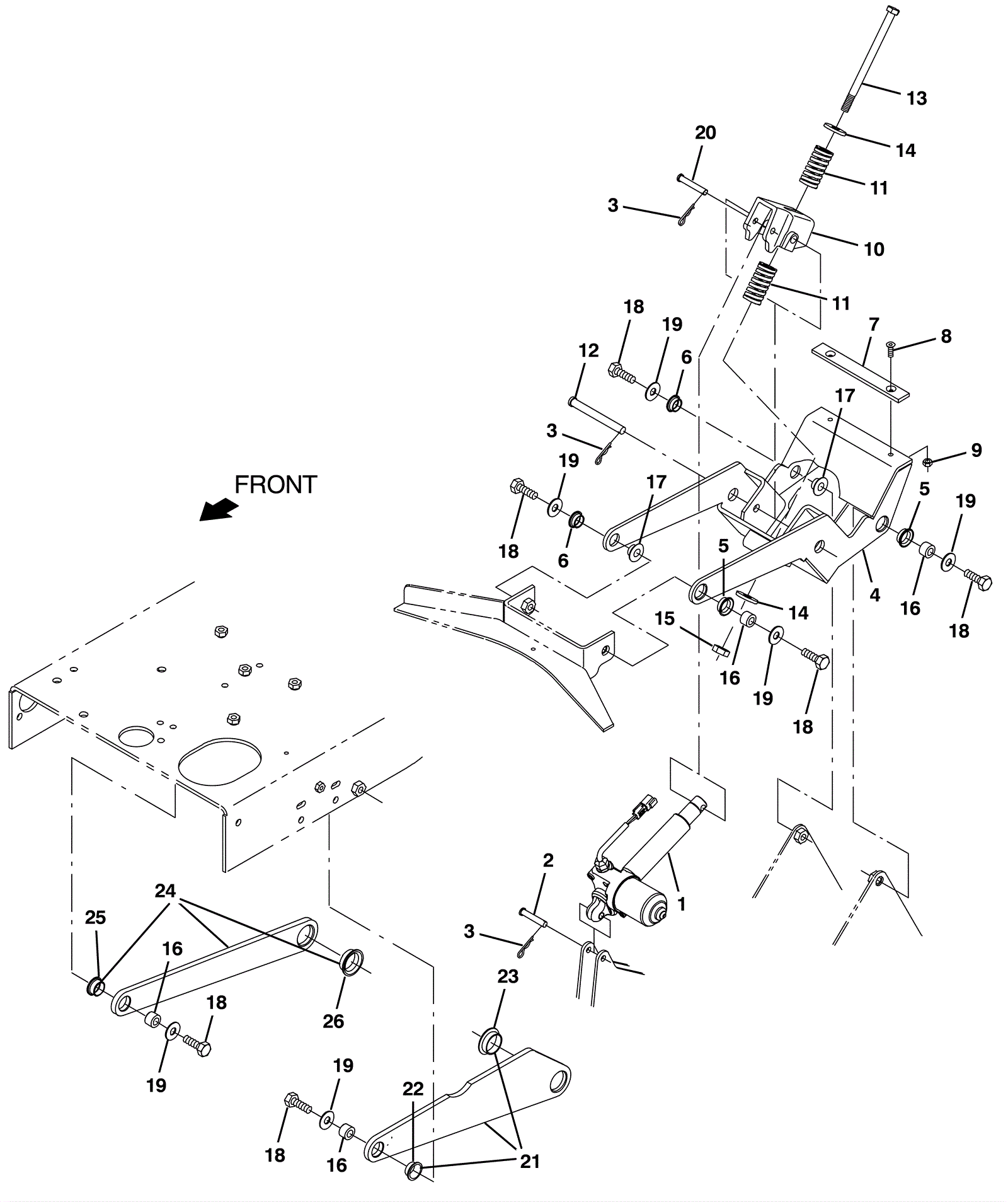

Scrub Head Lift Assembly

#PartDescription ReqNotesAvailability
1 675-5391 ACTUATOR, 36VDC, 5.00STRK, 1100LB (Tennant Industrial) 1
2 173-1595 Clevis pin 1
3 175-2117 Cotter pin 3
KIT 675-4420 ARM WLDT, LIFT, HEAD, AFMKT [T17] (Tennant Industrial) 1 (includes 4-9)
4 475-3884 ARM WLDT, LIFT 1
5 375-0729 Flanged bushing (Tennant Industrial) 2
6 275-0082 Flange bushing .5b .59d .38l 2
7 575-1792 PAD, STOP, RBR (Tennant Industrial) 1
8 175-0562 SCREW, FLT, SOC, M6 X 1.00 X 20, 10.9 (Tennant Industrial) 2
9 999-0497 Nut M6-1 nylon insert lock stainless steel 2
10 675-1651 BELLCRANK, SPRING, MACHINED (Tennant Industrial) 1
11 575-4443 SPRING, CMPR, 1.25OD FLAT WIR 02.5L (Tennant Industrial) 2
12 175-5401 Clevis pin 1/2 x 4 1/2 1
13 475-9083 SCREW, HEX, M12 X 1.75 X 180, 8.8 (Tennant Industrial) 1
14 475-9165 WASHER, FLAT, 0.53B 1.50D .19, STL (Tennant Industrial) 2
15 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
16 475-8949 SLEEVE, P/M, 0.50B 0.87D 0.6L [430SS] (Tennant Industrial) 4
17 475-9082 SLEEVE, P/M, FLNG, 0.50B 1.25/0.75D 0.4L (Tennant Industrial 2
18 175-0647 SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) 6
19 475-7754 WASHER, FLAT, 0.50B 1.25D 0.8, STL, PL (Tennant Industrial) 6
20 175-2185 Clevis pin 1
21 675-0417 LINK ASSY, HEAD, RH SIDE, AFMKT [T17] (Tennant Industrial) 1 (includes 22 and 23)
22 475-9012 BUSHING, FLNG, 0.88B 1.0D 0.50L (Tennant Industrial) 1
23 475-9783 BUSHING, FLNG, 1.25B 1.41D 0.50L (Tennant Industrial) 1
24 675-9559 Side head plate assembly 1 (includes 25 and 26)
25 475-9012 BUSHING, FLNG, 0.88B 1.0D 0.50L (Tennant Industrial) 1
26 475-9783 BUSHING, FLNG, 1.25B 1.41D 0.50L (Tennant Industrial) 1
