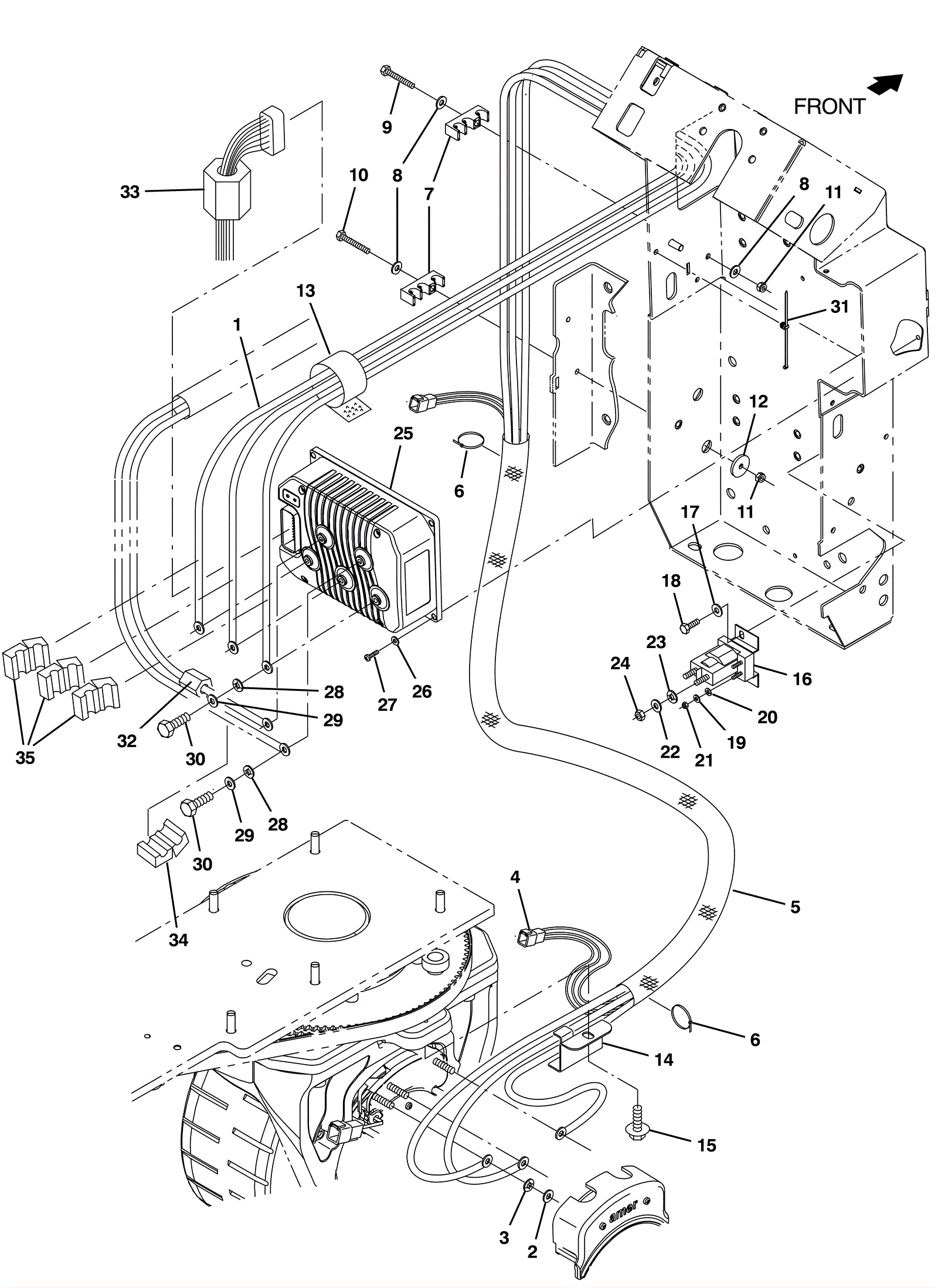

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
3 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
3 |
|
|
4 |
575-4907
|
HARNESS, ELE, PROPEL MOTOR [M17, T17] (Tennant Industrial) |
1 |
|
|
7 |
475-8330
|
CLAMP, SPPT, WIRE (Tennant Industrial) |
4 |
|
|
11 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
12 |
275-1464
|
WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) |
1 |
|
|
14 |
575-1254
|
CLAMP, CABLE (Tennant Industrial) |
1 |
|
|
17 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
20 |
999-0089
|
Washer #10 internal star lock zinc plated |
2 |
|
|
21 |
999-0460
|
Nut 10-32 hex |
2 |
|
|
22 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
25 |
675-7962
|
CONTROLLER, PROPEL [AC, 36V, 275A] (Tennant Industrial) |
1 |
|
|
27 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
4 |
|
|
30 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
5 |
|
|
32 |
575-0368
|
INDUCTOR, 32.5MML [FERRITE 25-300MHZ] (Tennant Industrial) |
1 |
|
|
33 |
475-3303
|
INDUCTOR, 18MMID [225 IMP AT 25MHZ] |
1 |
|
|
35 |
575-0329
|
INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial) |
3 |
|
|
