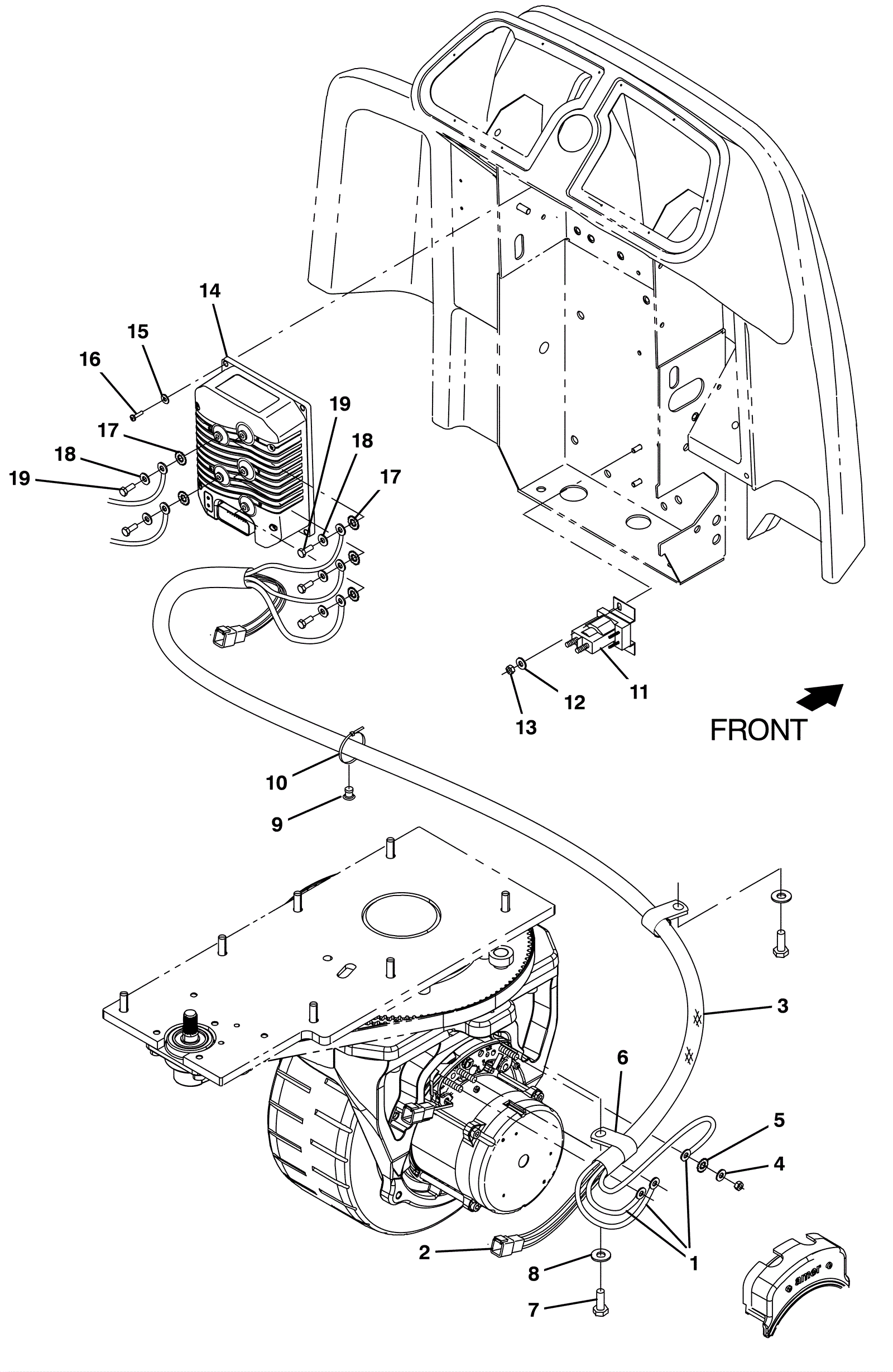

Drive Wheel Electrical Assembly Before SN 011000

#PartDescription ReqNotesAvailability
1 675-1064 HARNESS, CABLE, PROPEL MOTOR [T17] (Tennant Industrial) 1 (before SN 011000)
2 575-4886 HARNESS, ELE, PROPEL MOTOR [T17] (Tennant Industrial) 1 (before SN 011000)
3 175-6881 SLEEVE, NYL, 1.63ID 35.0L (Tennant Industrial) 1 (before SN 011000)
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 3 (before SN 011000)
5 999-0406 Washer 5/16 internal star lock zinc plated 3 (before SN 011000)
6 175-2260 P clamp 1 (before SN 011000)
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1 (before SN 011000)
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1 (before SN 011000)
9 275-5370 Clip 1 (before SN 011000)
10 375-3863 Cable tie (Tennant Industrial) 1 (before SN 011000)
11 175-2373 36V contactor 2 (before SN 011000)
12 999-0016 Washer 1/4 flat plain finish 2 (before SN 011000)
13 999-0439 Nut M6-1 hex coarse thread 2 (before SN 011000)
14 675-7962 CONTROLLER, PROPEL [AC, 36V, 275A] (Tennant Industrial) 1 (before SN 011000)
15 999-0998 Washer #10 flat stainless steel 4 (before SN 011000)
16 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4 (before SN 011000)
17 175-4544 Washer M6 locking 5 (before SN 011000)
18 999-0016 Washer 1/4 flat plain finish 5 (before SN 011000)
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5 (before SN 011000)
