| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-7672
|

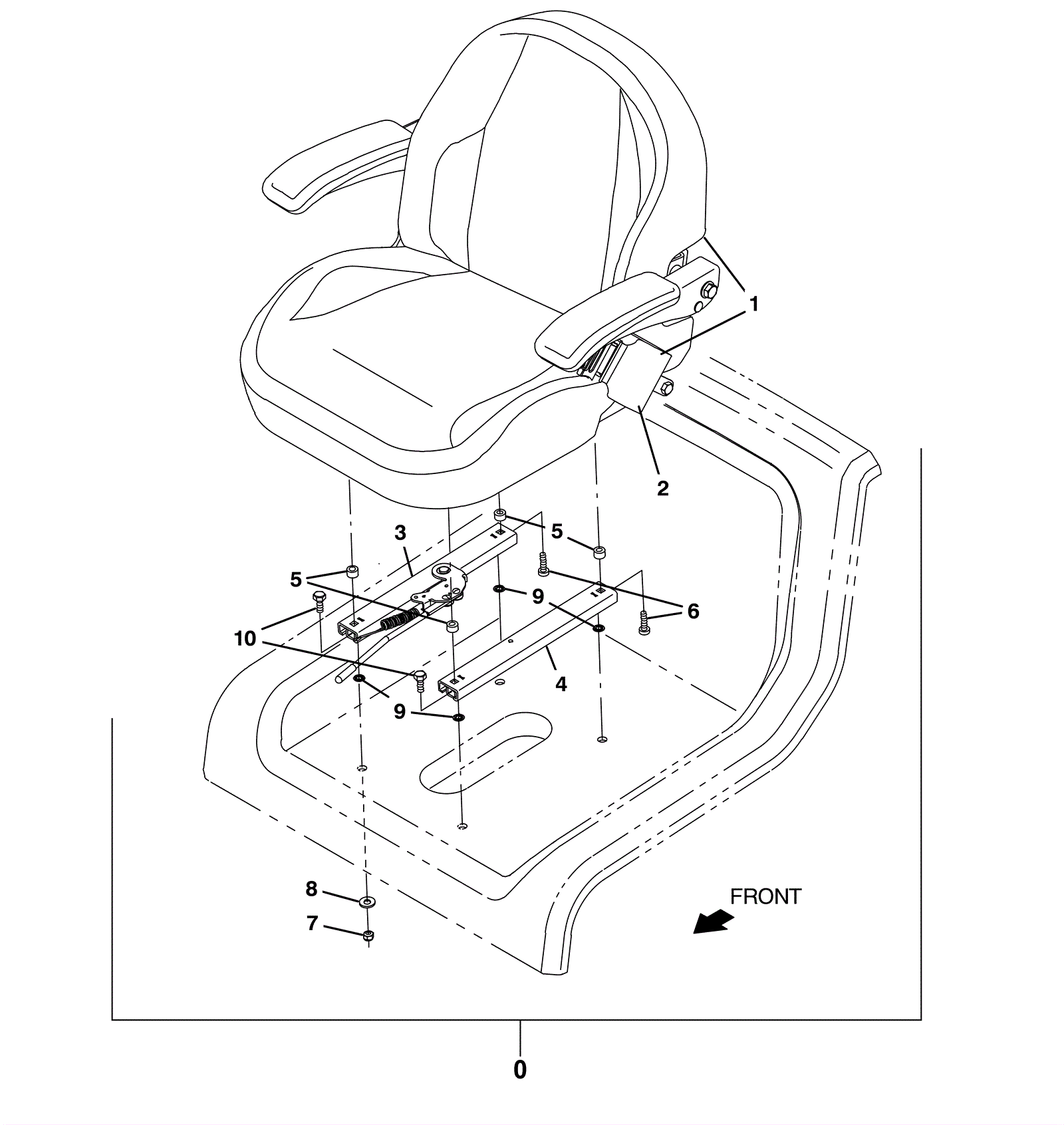

SEAT KIT, DELUXE, CI [T17] (Tennant Industrial) |
1 |
(includes 1-10) |
|
1 |
275-7592
|
Deluxe seat with armrests and seatbelt |
1 |
|
|
2 |
375-6965
|
Retractable seatbelt (orange) |
1 |
|
|
3 |
275-2671
|
11 1/2 inch seat adjuster rail (Tennant Industrial) |
1 |
|
|
4 |
675-9511
|
Seat track no stud |
1 |
|
|
5 |
275-9333
|
Spacer |
4 |
|
|
6 |
275-9278
|
SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) |
4 |
|
|
7 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
8 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
9 |
675-9512
|
Bolt retention push nut |
4 |
|
|
10 |
275-3879
|
SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) |
4 |
|
|
