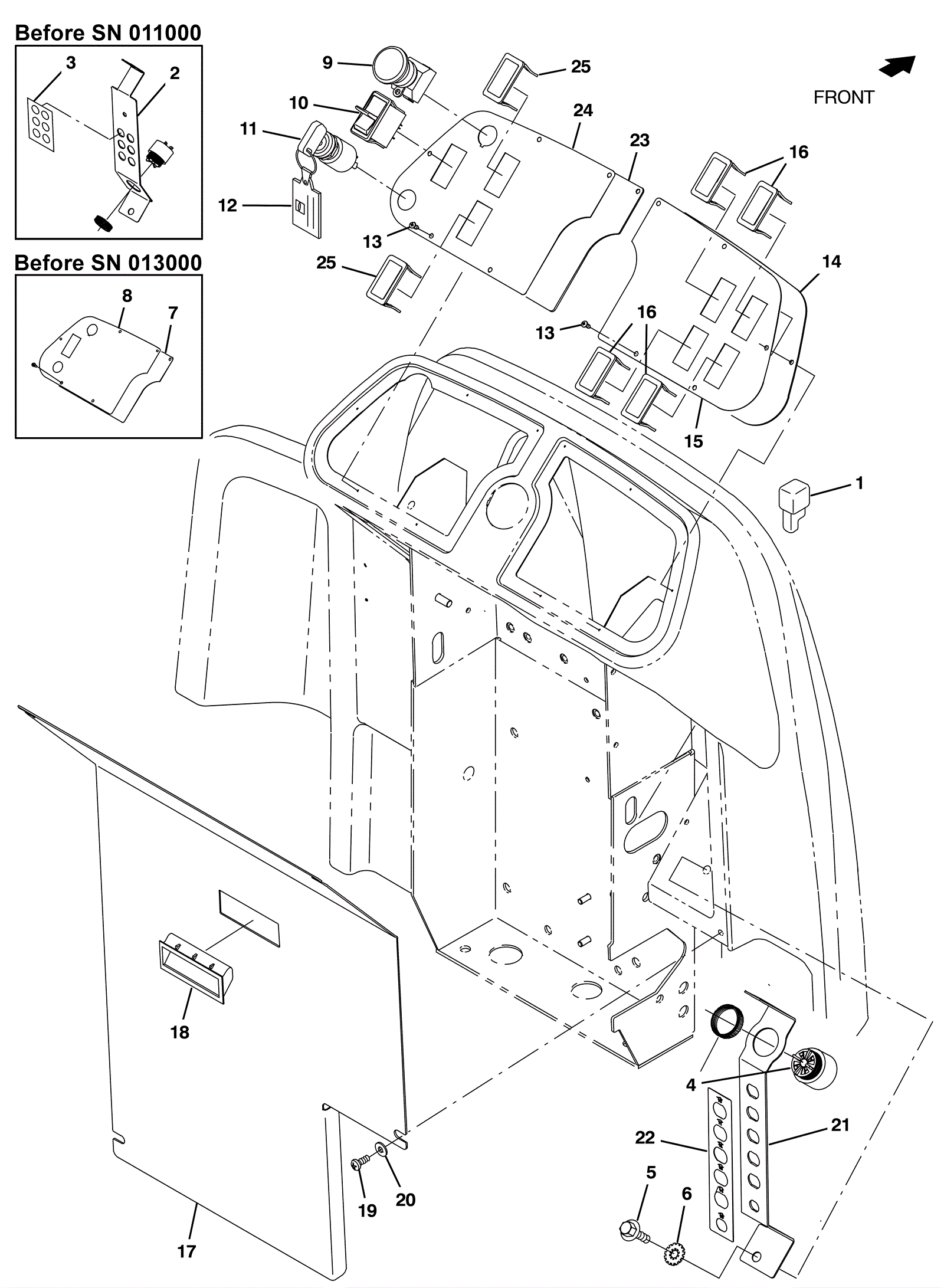

T17 Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2216 Diode plug $14.19 1 ships same day
2 575-3160 BRACKET, ELE, CB (Tennant Industrial) $38.51 1 (before SN 011000) usually ships 10-16 days
3 575-1322 LABEL, CIRCUITBREAKER, STEERING (Tennant Industrial) $21.17 1 (before SN 011000) usually ships 10-16 days
4 275-4942 Alarm $81.07 1 usually ships 1-5 days
5 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 1 usually ships 10-16 days
6 175-2893 Washer 5/16 internal/external locking $4.49 1 usually ships 10-16 days
7 275-7616 Left hand console panel $8.25 1 (before SN 013000) usually ships 1-5 days
8 275-7617 Left hand console decal $21.45 1 (before SN 013000) usually ships 1-5 days
9 275-1416 Safety shut-off switch $43.67 1 ships same day
10 275-7599 Rocker switch (Tennant Industrial) $47.51 1 usually ships 10-16 days
11a 175-3214 Key switch $93.28 1 usually ships 10-16 days
11b 175-3215 Key (sold individually) $15.40 1 ships same day
12 375-3414 Keychain (Tennant Industrial) $7.50 1 usually ships 10-16 days
13 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 10 ships same day
14 575-1852 PANEL, CONSOLE, RH (Tennant Industrial) $25.34 1 usually ships 10-16 days
15 675-9553 Right hand decal $82.52 1 usually ships 10-16 days
16 175-2556 Switch plug $7.37 4 usually ships 10-16 days
17 675-1705 PANEL, ACCESS, NA, AFMKT [T17] (Tennant Industrial) $273.39 1 usually ships 10-16 days
18 575-0944 HANDLE, PANEL (Tennant Industrial) $16.84 1 usually ships 10-16 days
19 475-7574 SCREW, PAN, PHL, M6 X 1.00 X 12, BLK (Tennant Industrial) $2.50 4 usually ships 10-16 days
20 275-7063 Washer 1/4 SAE flat black (Tennant Industrial) $5.33 4 usually ships 1-5 days
21 575-2262 BRACKET, ELE, CIRCUITBREAKER (Tennant Industrial) $31.34 1 usually ships 10-16 days
22 575-1322 LABEL, CIRCUITBREAKER, STEERING (Tennant Industrial) $21.17 1 usually ships 10-16 days
23 675-9570 PANEL, CONSOLE, LH (Tennant Industrial) $33.51 1 usually ships 10-16 days
24 675-9555 Left hand console decal $248.88 1 usually ships 10-16 days
25 175-2556 Switch plug $7.37 2 usually ships 10-16 days
