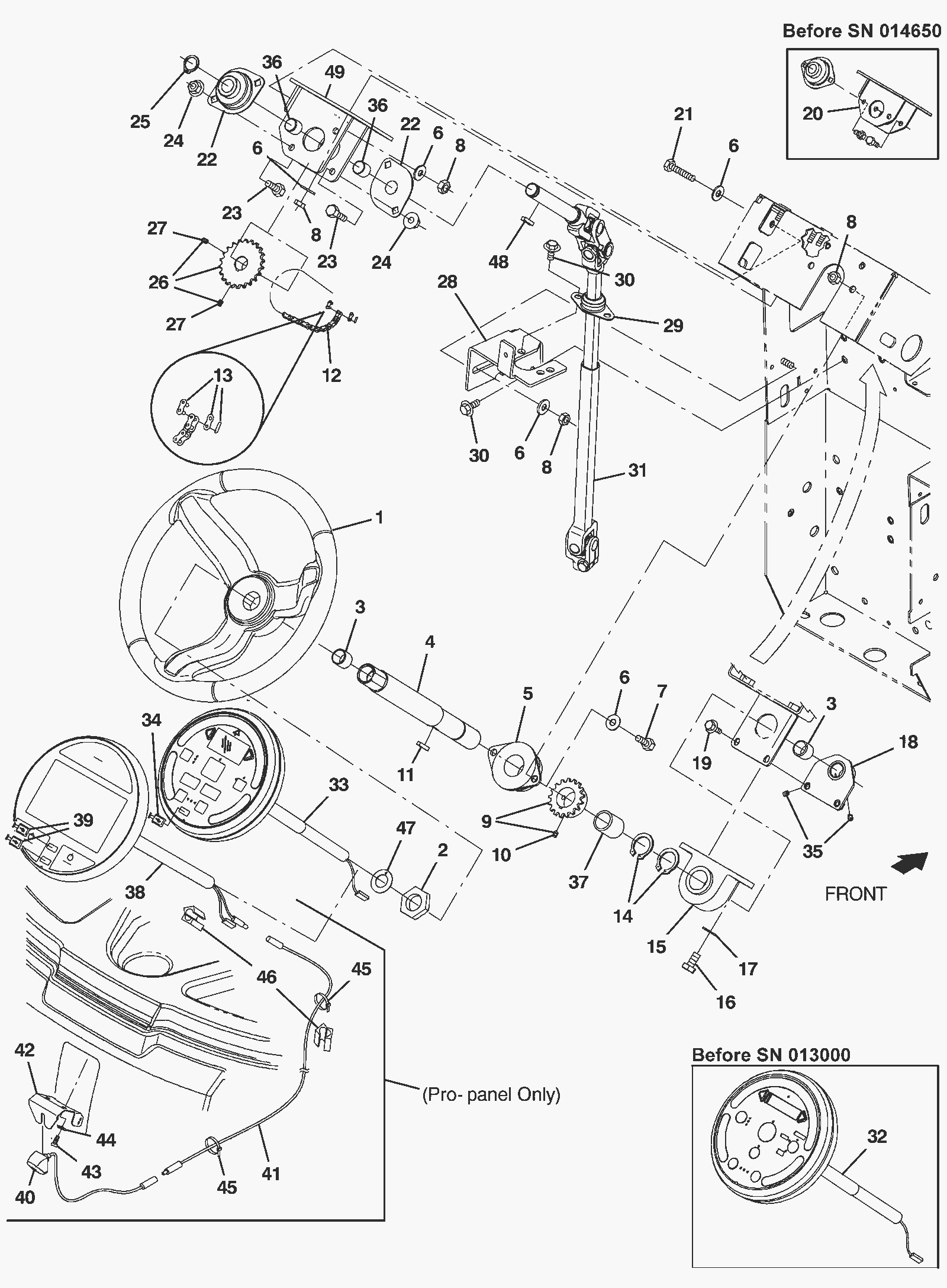

| # | Part | Description |
Req | Notes | Availability |
|---|
5 |
275-7612
|
Flanged bearing (Tennant Industrial) |
1 |
|
|
7 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
8 |
|
|
9a |
275-7603
|
Sprocket kit |
1 |
(before SN 011000) (includes 9c and 10a) |
|
9b |
575-4593
|
SPROCKET KIT, 1.12B, AFMKT [T17/M17] (Tennant Industrial) |
1 |
(after SN 019999) (includes 9d and 10b) |
|
9c |
275-2693
|
Steering sprocket (Tennant Industrial) |
1 |
(before SN 011000) |
|
9d |
575-1606
|
SPROCKET, STEERING, 1.12B (Tennant Industrial) |
1 |
(after SN 019999) |
|
10a |
175-9339
|
Screw M6-1 x 8mm set socket |
2 |
(before SN 011000) |
|
11 |
175-3200
|
Square keyway |
1 |
|
|
13 |
175-3207
|
Master link |
1 |
|
|
14a |
275-7620
|
Retaining ring (Tennant Industrial) |
2 |
(before SN 011000) |
|
14b |
275-7620
|
Retaining ring (Tennant Industrial) |
1 |
(after SN 019999) |
|
16 |
175-6774
|
Screw M10-1 1/2 x 20 hex |
2 |
|
|
18 |
475-3577
|
Bracket plate weldment |
1 |
|
|
21 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
1 |
|
|
22 |
275-7601
|
Flanged bearing (Tennant Industrial) |
2 |
|
|
24 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
|
|
26b |
575-5041
|
SPROCKET KIT, 0.75B, AFMKT [T17/M17] (Tennant Industrial) |
2 |
(before SN 011000) (includes 26d and 27) |
|
28b |
575-4505
|
BRACKET, BRG (Tennant Industrial) |
1 |
(after SN 019999) |
|
29 |
175-3201
|
Flanged bearing |
1 |
|
|
32 |
675-8357
|
PANEL KIT, POD, AFMKT [T17] (Tennant Industrial) |
1 |
(before SN 013000) |
|
36 |
575-2795
|
SLEEVE, P/M, 0.75B 0.88D 0.6L [841BRZ] (Tennant Industrial) |
2 |
(after SN 019999) |
|
38 |
375-4323
|
Panel kit (pro panel only) (Tennant Industrial) |
1 |
(Pro-panel only) (after SN 012999) (includes 39) |
|
39 |
375-7444
|
USB cap |
2 |
(Pro-panel only) (after SN 012999) |
|
46 |
475-9711
|
INDUCTOR, 32.0MML [FERRITE 0-300MHZ] (Tennant Industrial) |
2 |
(Pro-panel only) (after SN 012999) |
|
