| # | Part | Description |
Req | Notes | Availability |
|---|

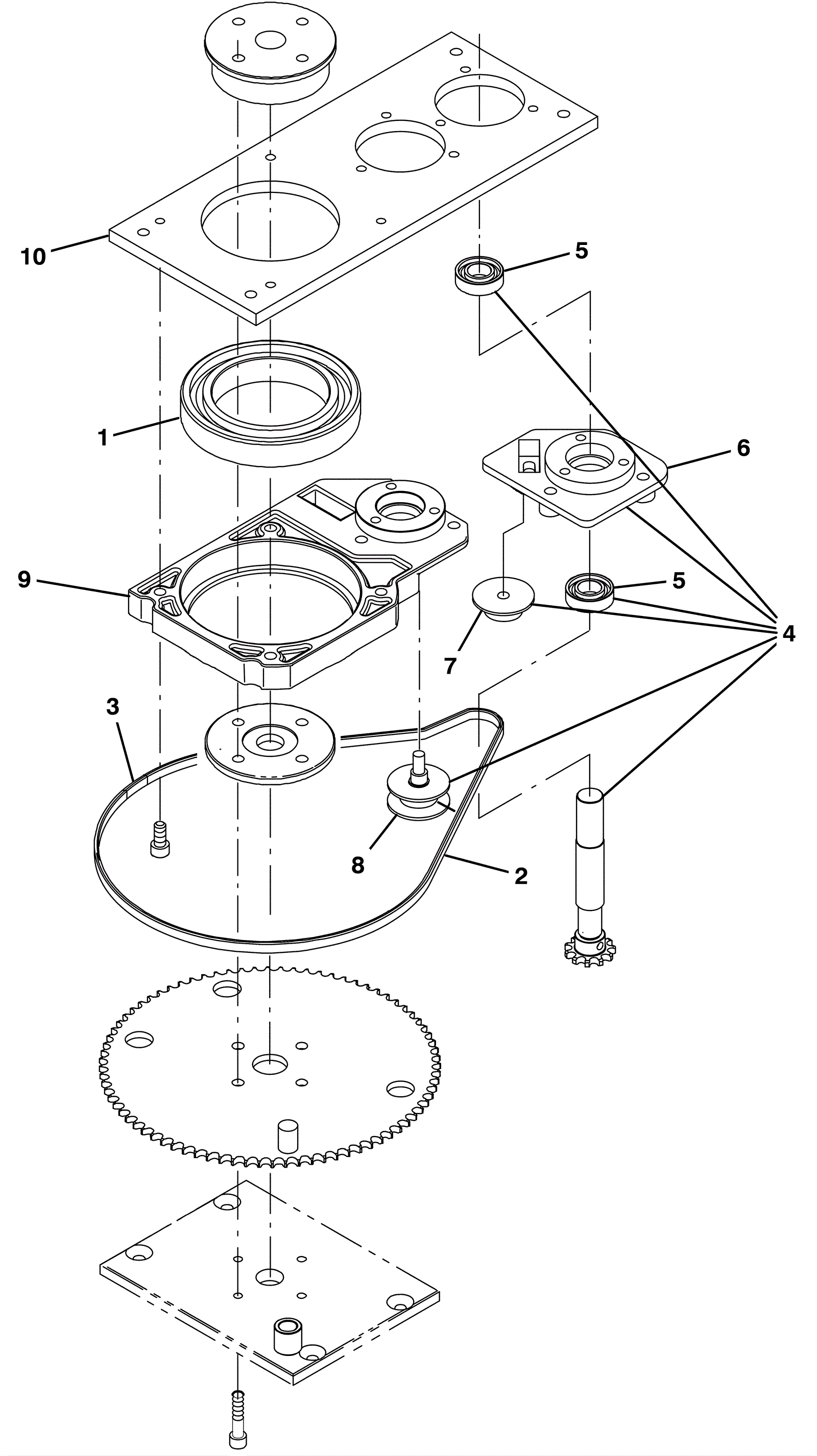

KIT a |
275-2734
|
Drive wheel control assembly (Tennant Industrial) |
1 |
(after SN 023754) (includes 1-10) |
|
KIT b |
275-2733
|
Drive wheel control assembly (Tennant Industrial) |
1 |
(between SN 022670-023753) (includes 1-10) |
|
1 |
275-8270
|
Steering bearing |
1 |
|
|
3 |
275-8272
|
Master link |
1 |
|
|
4 |
675-3147
|
SHAFT ASSY, STEERING [T16] (Tennant Industrial) |
1 |
(includes 5-8) |
|
5 |
675-9927
|
VR, BEARING [6003 2RS] (Tennant Industrial) |
2 |
|
|
6 |
575-4720
|
VR, PLATE, SPPT, ALM [111MM L] (Tennant Industrial) |
1 |
|
|
7 |
675-9924
|
Tension pulley |
1 |
|
|
8 |
575-6310
|
VR, PULLEY, GUIDE (Tennant Industrial) |
1 |
|
|
9 |
575-7828
|
VR, PLATE, SPPT, ALM [236.5MM L] (Tennant Industrial) |
1 |
|
|
10 |
675-3296
|
VR, PLATE (Tennant Industrial) |
1 |
|
|
