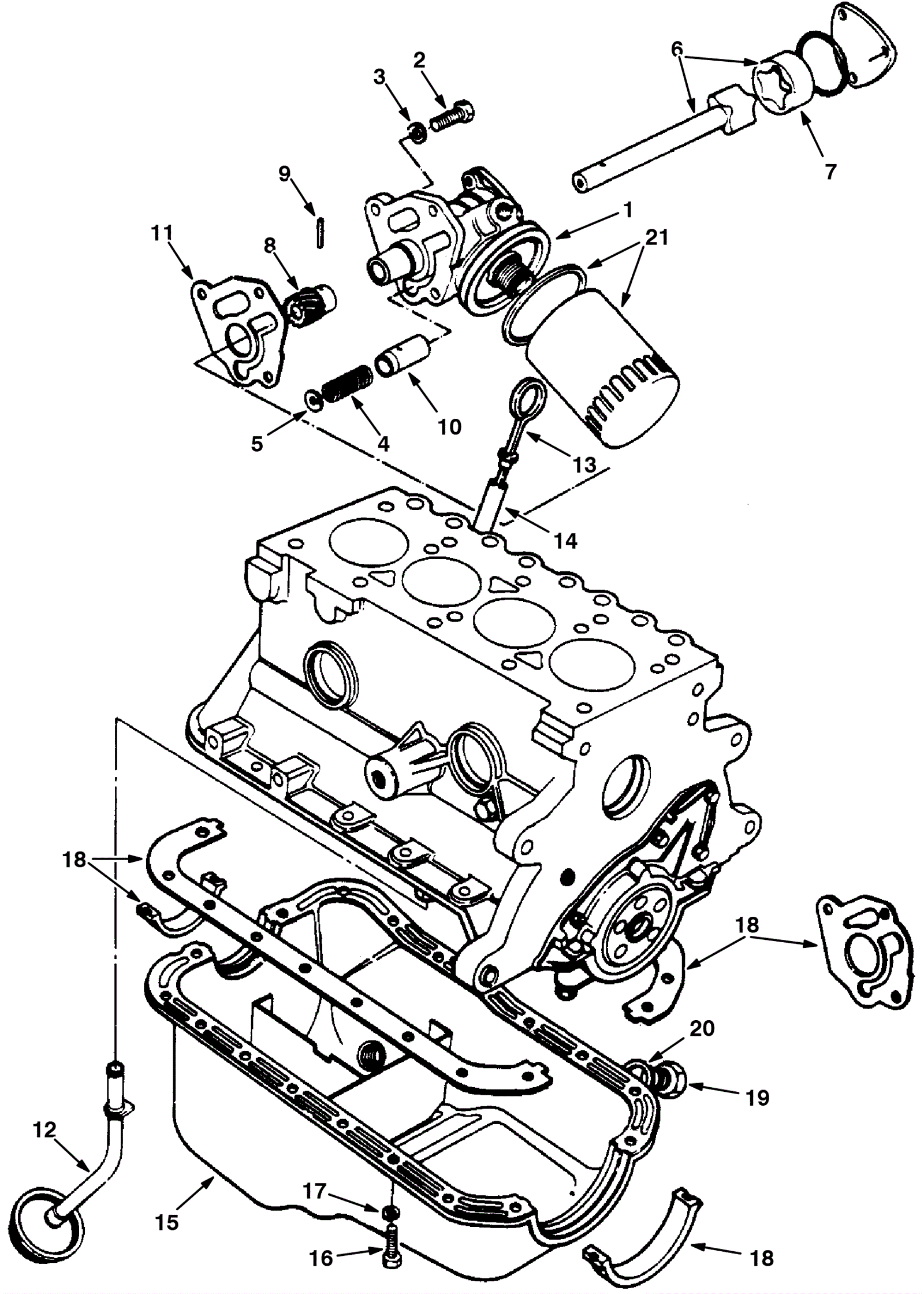

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-4495
|
VR, PUMP, OIL, ENG [FD] (Tennant Industrial) |
1 |
(includes 2-10) |
|
2 |
275-4496
|
VR, BOLT, HEX [FD] (Tennant Industrial) (OBSOLETE) |
3 |
|
|
3 |
275-4479
|
VR, WASHER, LOCK, SPLIT, M08 [FD] (Tennant Industrial) |
3 |
|
|
4 |
275-4497
|
VR, SPRING, OIL PUMP [FD] (Tennant Industrial) |
1 |
|
|
5 |
375-2301
|
Oil pump plug (OBSOLETE) |
1 |
|
|
6 |
375-2280
|
Shaft and rotor (OBSOLETE) |
1 |
|
|
7 |
275-4498
|
VR, SEAL, ORG [FD] (Tennant Industrial) |
1 |
|
|
8 |
275-4499
|
Gear (Tennant Industrial) (OBSOLETE) |
1 |
|
|
9 |
375-2300
|
Gear pin (OBSOLETE) |
1 |
|
|
10 |
275-4501
|
VR, PLUNGER, OIL PUMP [FD] (Tennant Industrial) |
1 |
|
|
11 |
275-4502
|
VR, GASKET, OIL PUMP [FD] (Tennant Industrial) |
1 |
|
|
12 |
375-2299
|
Oil pickup tube (OBSOLETE) |
1 |
|
|
13 |
275-4504
|
VR, DIPSTICK [FD] (Tennant Industrial) |
1 |
|
|
14 |
275-4505
|
VR, TUBE, DS [FD] (Tennant Industrial) (OBSOLETE) |
1 |
|
|
15 |
275-4506
|
VR, PAN, OIL, W/ PLUG [FD] (Tennant Industrial) |
1 |
|
|
16 |
999-0978
|
Bolt M6-1 x 14mm hex head stainless steel |
18 |
|
|
17 |
999-0060
|
Washer 1/4 split lock plain finish |
18 |
|
|
18 |
275-4508
|
VR, GASKET KIT, ENG, OIL PAN [FD] (Tennant Industrial) |
1 |
|
|
19 |
375-7443
|
Oil drain plug (Tennant Industrial) |
1 |
|
|
20 |
275-4509
|
VR, GASKET, PLUG, DRAIN, OIL, PAN [FD] (Tennant Industrial) |
1 |
|
|
21 |
275-4510
|
ELEMENT, FLTR, OIL, SPIN-ON (Tennant Industrial) |
1 |
|
|
