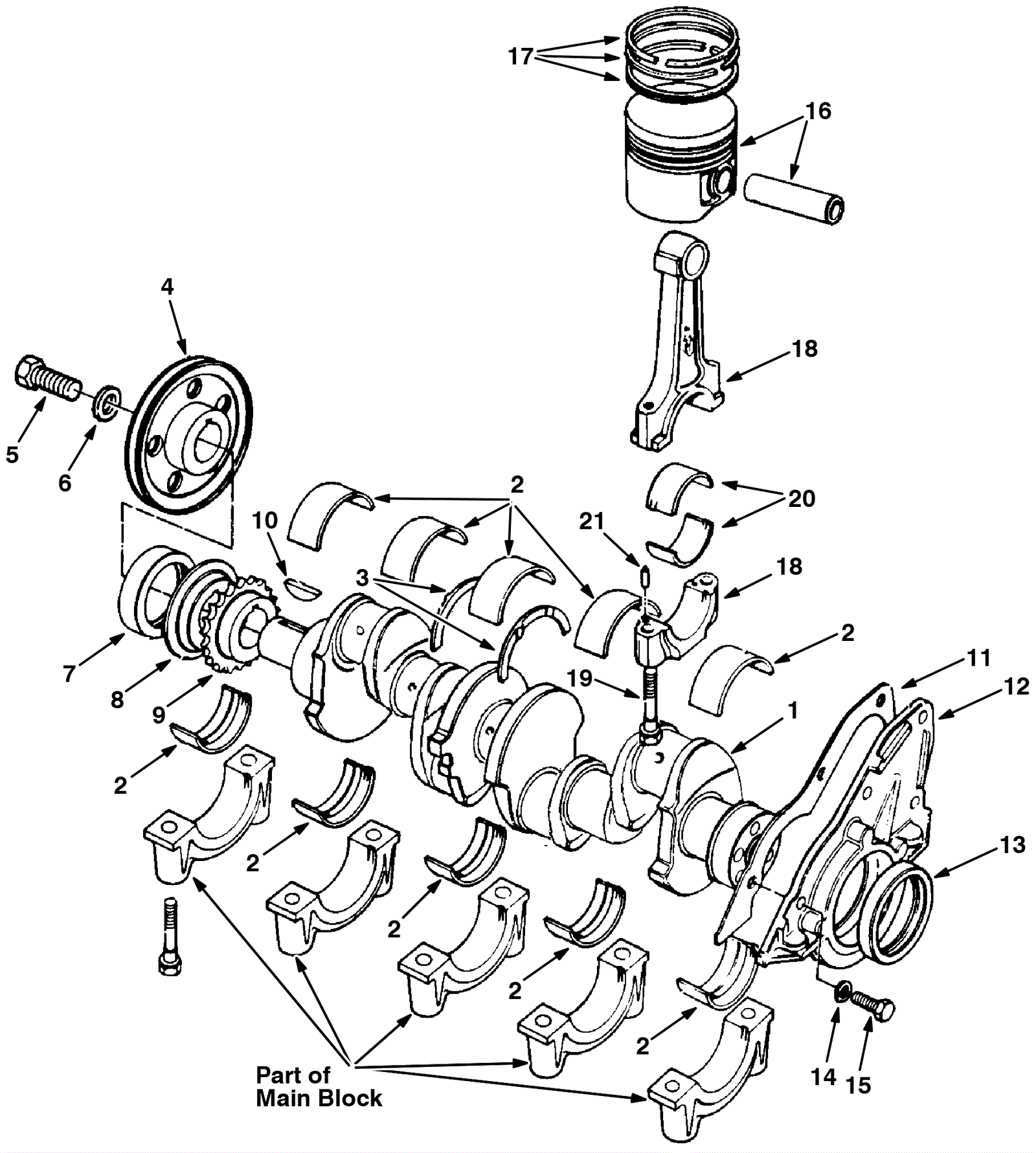

7400 Crankshaft and Piston Assembly - Gas/LPG before SN 007000

#PartDescriptionPriceReqNotesAvailability
1 375-2288 Crankshaft (OBSOLETE) Call for price 1 usually ships 5-16 days
2a 275-4452 VR, BEARING, HALF, UPPER, CRANK, STD[FD] (Tennant Industria $149.30 1 usually ships 1-5 days
2b 375-7440 Upper bearing crankshaft (Tennant Industrial) $51.77 1 usually ships 5-16 days
2c 275-4454 VR, BEARING, HALF, UPPER, CRANK,.010[FD] (Tennant Industria $57.62 1 usually ships 1-5 days
2d 375-2292 Upper bearing half (OBSOLETE) Call for price 1 usually ships 5-16 days
2e 375-2293 Crankshaft upper half bearing (OBSOLETE) Call for price 1 usually ships 5-16 days
2f 275-4457 VR, BEARING, HALF, UPPER, CRANK,.030[FD] (Tennant Industria $109.39 1 usually ships 1-5 days
2f 375-2294 Crankshaft upper half bearing .010 (OBSOLETE) Call for price 1 usually ships 5-16 days
2g 375-2295 Crankshaft upper half bearing .015 (OBSOLETE) Call for price 1 usually ships 5-16 days
2h 275-4460 VR, BEARING, HALF, LOWER (Tennant Industrial) $75.32 1 usually ships 1-5 days
2i 375-7441 Lower bearing crankshaft (Tennant Industrial) $36.57 1 usually ships 5-16 days
2j 275-4462 VR, BEARING, HALF, LOWER (Tennant Industrial) $37.24 1 usually ships 1-5 days
2k 375-2315 Lower half bearing (OBSOLETE) Call for price 1 usually ships 5-16 days
2l 375-2316 Lower half bearing (OBSOLETE) Call for price 1 usually ships 5-16 days
2m 275-4465 VR, BEARING, HALF, LOWER (Tennant Industrial) $62.79 1 usually ships 1-5 days
2n 375-2317 Lower half bearing (OBSOLETE) Call for price 1 usually ships 5-16 days
2o 375-2318 Lower half bearing (OBSOLETE) Call for price 1 usually ships 5-16 days
3a 275-4468 VR, WASHER, THRUST, STD [FD] (Tennant Industrial) $29.73 2 usually ships 1-5 days
3b 275-4469 VR, WASHER, THRUST, .015 [FD] (Tennant Industrial) $46.43 2 usually ships 1-5 days
4 275-4470 VR, SHEAVE, CSHFT [FD] (Tennant Industrial) $377.25 1 usually ships 1-5 days
5 275-4471 VR, BOLT, HEX, M12 X 32 (Tennant Industrial) $52.44 1 usually ships 1-5 days
6 999-1346 Washer M12 flat stainless steel $0.99 1 ships same day
7 275-4473 VR, SEAL [SEE INT COMMENT, FD] (Tennant Industrial) $72.81 1 usually ships 1-5 days
8 375-2296 Oil slinger (OBSOLETE) Call for price 1 usually ships 5-16 days
9 275-4474 VR, SPROCKET, CSHFT [FD] (Tennant Industrial) $257.51 1 usually ships 1-5 days
10 375-2303 Woodruff key (OBSOLETE) Call for price 1 usually ships 5-16 days
11 375-2284 Rear retainer gasket (OBSOLETE) Call for price 1 usually ships 5-16 days
12 275-4477 Rear retainer assembly (Tennant Industrial) (OBSOLETE) $226.29 1 usually ships 1-5 days
13 N/A Not available Call for price 1 (rear crankshaft seal) usually ships 3-26 days
14 275-4479 VR, WASHER, LOCK, SPLIT, M08 [FD] (Tennant Industrial) $12.36 4 usually ships 1-5 days
15 275-4480 VR, BOLT, HEX, M08 X 20 [FD] (Tennant Industrial) $12.36 4 usually ships 1-5 days
16a 275-4481 VR, PISTON, ASSY, STD [FD] (Tennant Industrial) $909.65 1 usually ships 1-5 days
16b 275-4482 VR, PISTON, ASSY, .020 [FD] (Tennant Industrial) $490.98 1 usually ships 1-5 days
16c 275-4483 VR, PISTON, ASSY, .040 [FD] (Tennant Industrial) $735.80 1 usually ships 1-5 days
17a 275-4484 VR, RING SET (Tennant Industrial) $152.14 1 usually ships 1-5 days
17b 275-4485 VR, RING SET (Tennant Industrial) $219.94 1 usually ships 1-5 days
17c 275-4486 VR, RING SET (Tennant Industrial) $112.39 1 usually ships 1-5 days
18 375-2313 Rod (OBSOLETE) Call for price 4 usually ships 5-16 days
19 275-4488 VR, BOLT, ROD, CONNECTING [FD] (Tennant Industrial) $47.60 8 usually ships 1-5 days
20a 275-4489 VR, BEARING, ROD, CONNECTING, STD [FD] (Tennant Industrial) $81.33 8 usually ships 1-5 days
20b 375-2297 Connecting bearing rod .001 (OBSOLETE) Call for price 8 usually ships 5-16 days
20c 375-2298 Connecting bearing rod (OBSOLETE) Call for price 8 usually ships 5-16 days
20d 275-4492 VR, BEARING, ROD, CONNECTING, .020 [FD] (Tennant Industrial $116.57 8 usually ships 1-5 days
20e 275-4493 VR, BEARING, ROD, CONNECTING, .030 [FD] (Tennant Industrial $62.29 8 usually ships 1-5 days
21 375-7442 Connecting rod dowel pin (Tennant Industrial) $10.69 8 usually ships 5-16 days
