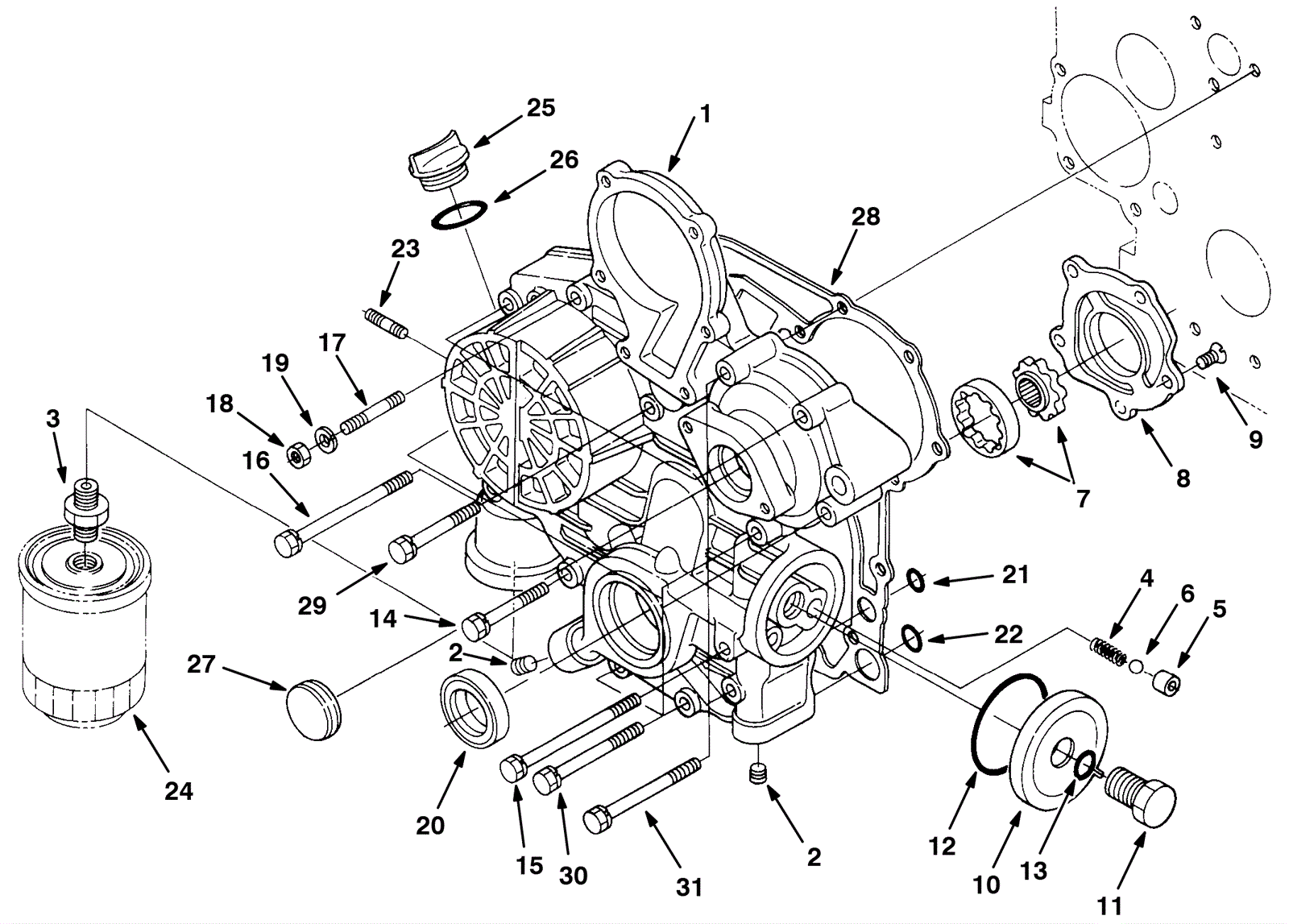

Gear Case Assembly - Diesel

#PartDescription ReqNotesAvailability
1 675-6845 VR, GEAR, CASE (Tennant Industrial) 1 (includes 2-13)
2 375-2241 Plug (OBSOLETE) 4
3 175-8336 VR, FITTING, FLTR, OIL [KU] (Tennant Industrial) 1
4 275-3534 VR, SPRING, CMPR, RELIEF [KU] (Tennant Industrial) 1
5 275-3535 VR, TUBE, SEAT, VALVE, OIL [KU] (Tennant Industrial) 1
6 275-3536 VR, BALL, RELIEF, OIL [KU] (Tennant Industrial) 1
7 275-3537 VR, PUMP, OIL, ENG [KU] (Tennant Industrial) 1
8 575-5583 VR, COVER, PUMP, OIL (Tennant Industrial) 1
9 275-3533 VR, SCREW, FLT [KU] (Tennant Industrial) 5
10 675-0564 VR, COVER (Tennant Industrial) 1
11 575-3629 VR, BOLT (Tennant Industrial) 1
12 275-3340 VR, SEAL, ORG [KU] (Tennant Industrial) 1
13 275-3539 VR, SEAL, ORG [KU] (Tennant Industrial) 1
14 275-3541 VR, SCREW, HEX [KU] (Tennant Industrial) 1
15 275-3542 VR, SCREW, HEX [KU] (Tennant Industrial) 2
16 575-0211 VR, BOLT (Tennant Industrial) 1
17 275-3543 VR, STUD [KU] (Tennant Industrial) (OBSOLETE) 1
18 175-8352 VR, NUT, HEX [KU] (Tennant Industrial) 1
19 175-8353 VR, WASHER, LOCK, SPLIT [KU] (Tennant Industrial) 1
20 575-7325 VR, SEAL, OIL (Tennant Industrial) 1
21 575-0147 VR, SEAL, ORG (Tennant Industrial) 2
22 275-3568 VR, SEAL, ORG (Tennant Industrial) 2
23 275-3538 VR, STUD [KU] (Tennant Industrial) 2
24 275-3343 VR, FILTER, OIL [KU] (Tennant Industrial) 1
25 575-2621 VR, PLUG (Tennant Industrial) 1
26 175-8332 VR, SEAL, ORG (Tennant Industrial) 1
27 575-3890 VR, COVER, HOLE, HOURMETER [KU] (Tennant Industrial) 1
28 575-3926 VR, GASKET, CASE, GEAR [KU] (Tennant Industrial) 1
29 175-8552 VR, SCREW, HEX [KU] (Tennant Industrial) 3
30 175-8343 VR, SCREW, HEX [KU] (Tennant Industrial) 4
31 275-3540 VR, SCREW, HEX [KU] (Tennant Industrial) 2
