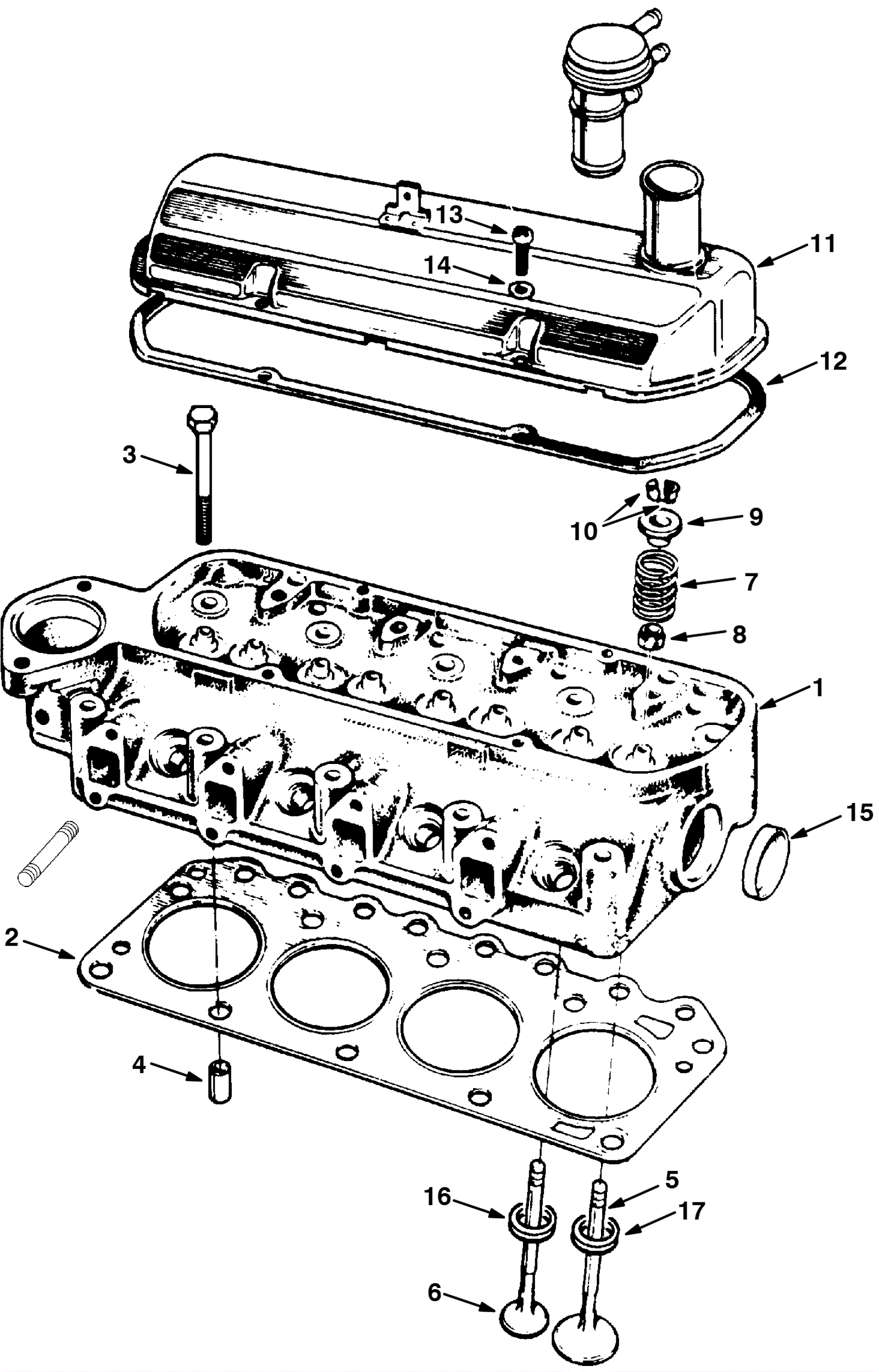

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-2287
|
Cylinder head assembly (OBSOLETE) |
1 |
|
|
2 |
275-4399
|
VR, GASKET, HEAD, CYL [FD] (Tennant Industrial) |
1 |
|
|
3 |
275-4400
|
VR, BOLT, CYL HEAD [FD] (Tennant Industrial) |
10 |
|
|
4 |
275-4401
|
VR, PIN, DOWEL [FD] (Tennant Industrial) |
2 |
|
|
5 |
275-4402
|
VR, VALVE, INTAKE [FD] (Tennant Industrial) |
1 |
|
|
6 |
275-4403
|
VR, VALVE, EXHAUST [FD] (Tennant Industrial) |
4 |
|
|
7 |
275-4404
|
VR, SPRING, VALVE [FD] (Tennant Industrial) |
8 |
|
|
8 |
275-4405
|
VR, SEAL (Tennant Industrial) |
8 |
|
|
9 |
275-4406
|
VR, RETAINER, VALVE [FD] (OBSOLETE) |
8 |
|
|
10 |
275-4407
|
VR, LOCK, SPRING, VALVE [FD] (OBSOLETE) |
16 |
|
|
11 |
275-4408
|
Rocker arm cover (Tennant Industrial) (OBSOLETE) |
1 |
|
|
12 |
275-4409
|
VR, GASKET, COVER, ROCKER ARM (Tennant Industrial) |
1 |
|
|
13 |
275-4410
|
VR, SCREW, COVER, VALVE [FD] (Tennant Industrial) |
4 |
|
|
14 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
15 |
275-4411
|
VR, PLUG, EXPANSION [FD] (Tennant Industrial) |
1 |
|
|
16 |
275-4412
|
VR, INSERT, SEAT, EXHAUST VALVE [FD] (Tennant Industrial) |
4 |
|
|
17 |
275-4413
|
Intake valve seat insert (Tennant Industrial) (OBSOLETE) |
4 |
|
|
