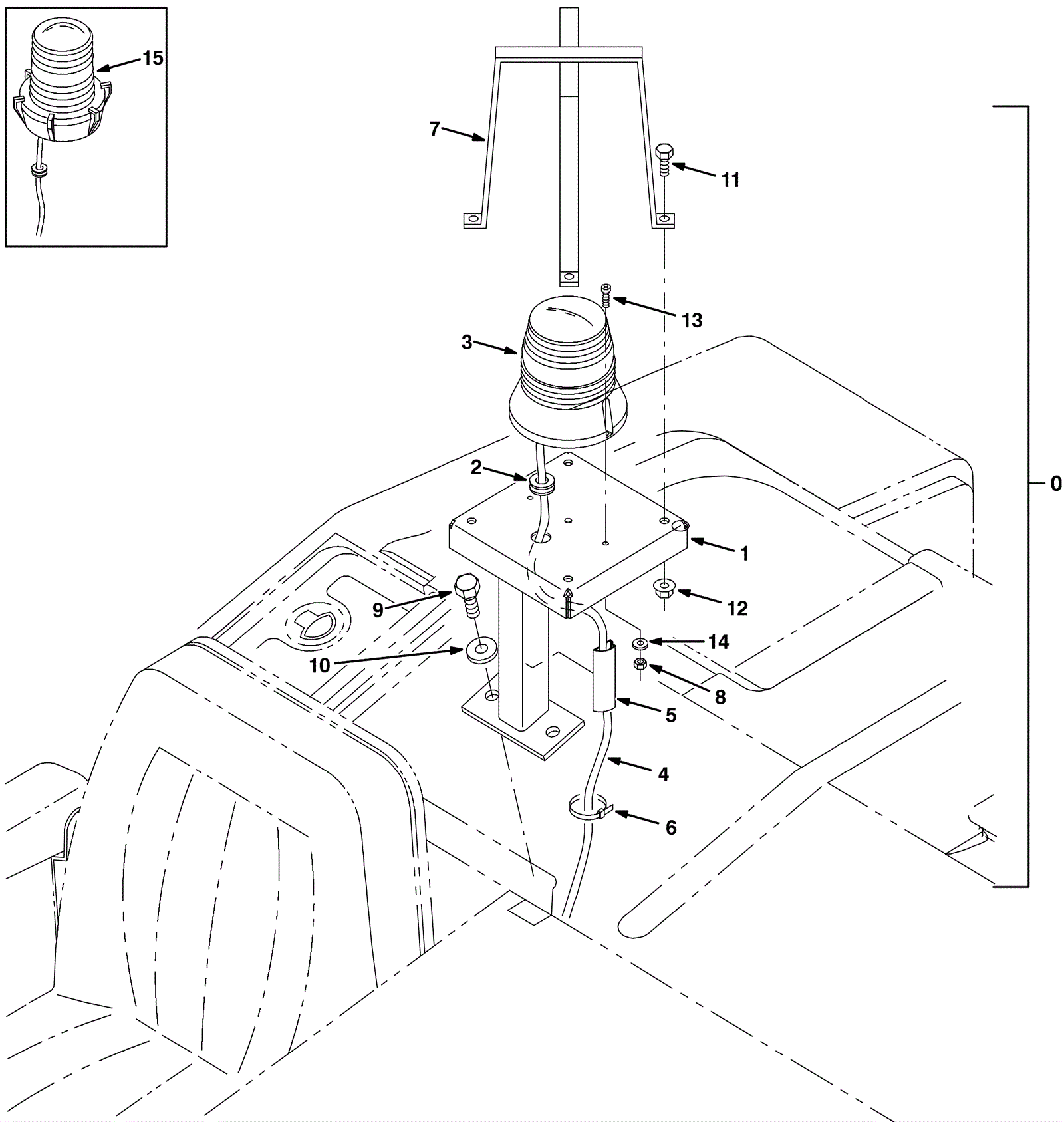

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-4758
|
LIGHT KIT, FLSH, PED, CI [7400] (Tennant Industrial) |
1 |
(includes 1-14) |
|
1 |
675-0561
|
BRACKET WLDT, LIGHT, REVL (Tennant Industrial) |
1 |
|
|
2 |
175-9590
|
Rubber grommet |
1 |
|
|
3a |
275-4677
|
Flashing light (amber) |
1 |
(includes 3b-3c) (after SN 007433) |
|
3b |
275-4675
|
Lens |
1 |
(after SN 007433) |
|
3c |
275-4678
|
Bulb |
1 |
(after SN 007433) |
|
4 |
675-2529
|
HARNESS, LIGHT, FLSH, REVL, [ 355L] (Tennant Industrial) |
1 |
|
|
5 |
175-3261
|
PVC duct |
1 |
|
|
6 |
175-2162
|
Nylon wire tie |
8 |
|
|
7 |
175-5420
|
Revolving/flashing light guard weldment |
1 |
|
|
8 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
9 |
175-6784
|
Screw M12- 1.75 x 30mm hexhead |
2 |
|
|
10 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
11 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
12 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
13 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
14 |
999-0412
|
Washer #8 SAE flat |
2 |
|
|
15a |
275-5180
|
LIGHT, FLSH, 12VDC, AMB, RWK 82198 (Tennant Industrial) |
1 |
(includes 15b-15c) (before SN 007434) |
|
15b |
175-5427
|
Flashing light amber lens |
1 |
(before SN 007434) |
|
15c |
275-0587
|
Lamp 12VDC 2.1A |
1 |
(before SN 007434) |
|
N/S |
475-7955
|
TERMINAL, RING, .25STUD 16-14GA, INS (Tennant Industrial) |
1 |
(included with 0) (after SN 007433) |
|
N/S |
175-5964
|
Plug |
1 |
(included with 0) (after SN 007433) |
|
N/S |
175-5428
|
Flashing light red lens |
1 |
(included with 0) (before SN 007434) |
|
N/S |
175-5429
|
Flashing light blue lens |
1 |
(included with 0) (before SN 007434) |
|
