| # | Part | Description |
Req | Notes | Availability |
|---|

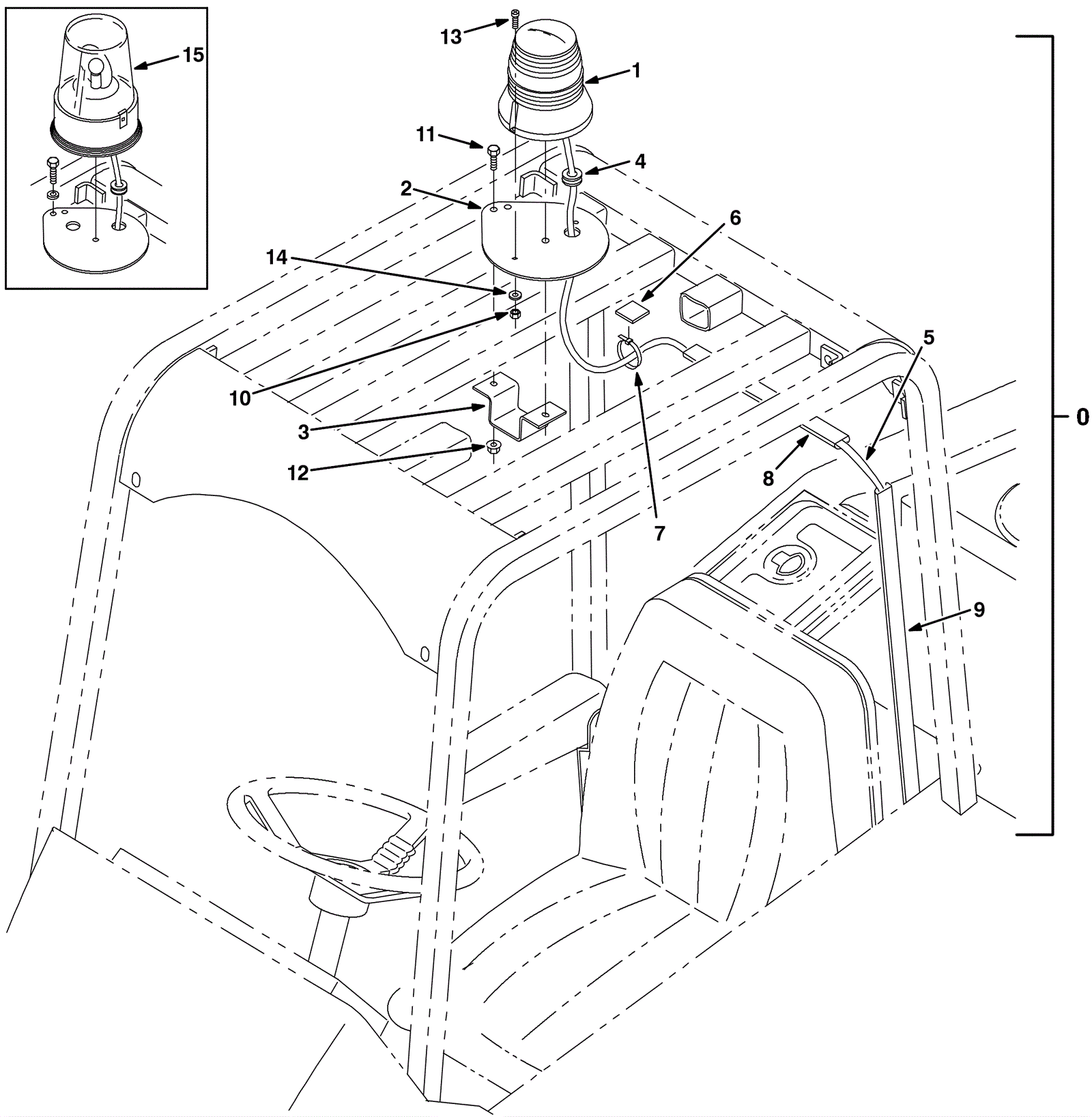

0 |
675-4425
|
LIGHT KIT, FLSH, OHG, CI [7400] (Tennant Industrial) |
1 |
(includes 1-14) |
|
1a |
375-4398
|
LED strobe light (Tennant Industrial) |
1 |
(includes 1b-1c) (after SN 007432) |
|
1b |
275-4675
|
Lens |
1 |
(after SN 007432) |
|
1c |
275-4676
|
Bulb |
1 |
(after SN 007432) |
|
2 |
175-9646
|
Light mounting plate |
1 |
|
|
3 |
175-9647
|
Overhead guard light mounting bracket |
1 |
|
|
4 |
175-9590
|
Rubber grommet |
1 |
|
|
5 |
575-6599
|
HARNESS, LIGHT, REVL, OHG [355L] (Tennant Industrial) |
1 |
|
|
6 |
175-3233
|
Cable tie mount |
1 |
|
|
7 |
175-2162
|
Nylon wire tie |
8 |
|
|
8 |
175-3261
|
PVC duct |
2 |
|
|
9 |
175-9650
|
Vinyl duct 25/64 x 3/4 x 1/4d 26l (OBSOLETE) |
1 |
|
|
10 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
11 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
12 |
475-7969
|
NUT, HEX, FLNG, .25-20 (Tennant Industrial) |
2 |
|
|
13 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
14 |
999-0412
|
Washer #8 SAE flat |
2 |
|
|
15a |
675-5979
|
LIGHT, FLSH, 12VDC, AMB, RWK (Tennant Industrial) |
1 |
(includes 15b-15c) (before SN 007433) |
|
15b |
175-5418
|
Revolving light amber lens |
1 |
(before SN 007433) |
|
15c |
275-0587
|
Lamp 12VDC 2.1A |
1 |
(before SN 007433) |
|
N/S |
475-7955
|
TERMINAL, RING, .25STUD 16-14GA, INS (Tennant Industrial) |
1 |
(included with 0) (after SN 007432) |
|
N/S |
175-5964
|
Plug |
1 |
(included with 0) (after SN 007432) |
|
N/S |
175-5422
|
Revolving light red lens |
1 |
(included with 0) (before SN 007433) |
|
N/S |
175-5423
|
Revolving light blue lens |
1 |
(included with 0) (before SN 007433) |
|
