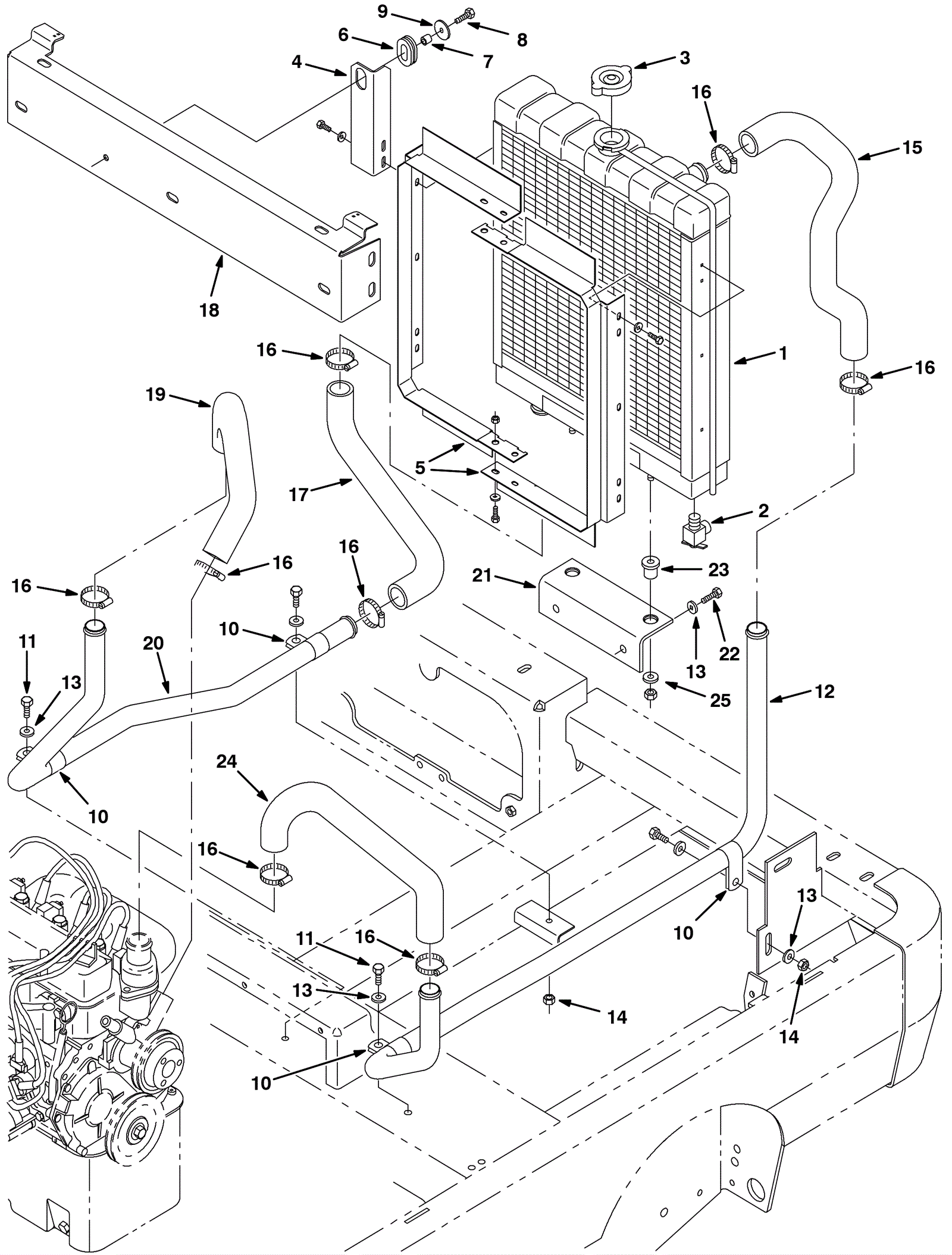

7400 Radiator Assembly - Before SN 007000

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (radiator) usually ships 3-26 days
2 175-6869 FITTING, DRAINCOCK, E90, .25NPT (Tennant Industrial) $21.88 1 usually ships 1-5 days
3 375-6058 Radiator cap $7.50 1 usually ships 5-16 days
4 375-4669 Strap $34.40 1 usually ships 5-16 days
5 375-4670 Panel $75.98 2 usually ships 5-16 days
6 175-0840 Rubber grommet $4.40 1 usually ships 1-5 days
7 575-3677 TUBE, 0.38ID 0.50OD 00.5L, STL (Tennant Industrial) $23.05 1 usually ships 5-16 days
8 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
10 175-9979 Clamp (Tennant Industrial) $7.35 4 usually ships 1-5 days
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
12 575-9727 TUBE, COOLANT, 1.3D UPPER [7400 GAS/LPG] (Tennant Industrial $383.27 1 usually ships 5-16 days
13 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
15 275-5849 HOSE, COOLANT, MOLD, 1.50ID TO 1.50ID (Tennant Industrial) $136.77 1 usually ships 1-5 days
16 997-2000 Hose clamp $2.37 8 ships same day
17 575-6959 HOSE, COOLANT, MOLD, 1.25ID TO 1.25ID (Tennant Industrial) $107.72 1 usually ships 5-16 days
18 375-4671 Bracket $110.05 1 usually ships 5-16 days
19 575-5847 HOSE, COOLANT, MOLD, 1.25ID TO 1.25ID (Tennant Industrial) $64.96 1 usually ships 5-16 days
20 675-2498 TUBE, COOLANT, 1.3D LOWER [7400 GAS/LPG] (Tennant Industrial $180.69 1 usually ships 5-16 days
21 375-4672 Bracket $42.75 1 usually ships 5-16 days
22 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
23 175-2429 Vibration isolator $6.99 2 ships same day
24 575-7065 HOSE, COOLANT, MOLD, 1.25ID TO 1.25ID (Tennant Industrial) $77.99 1 usually ships 5-16 days
25 175-2367 Steel plated washer $2.70 2 usually ships 1-5 days
