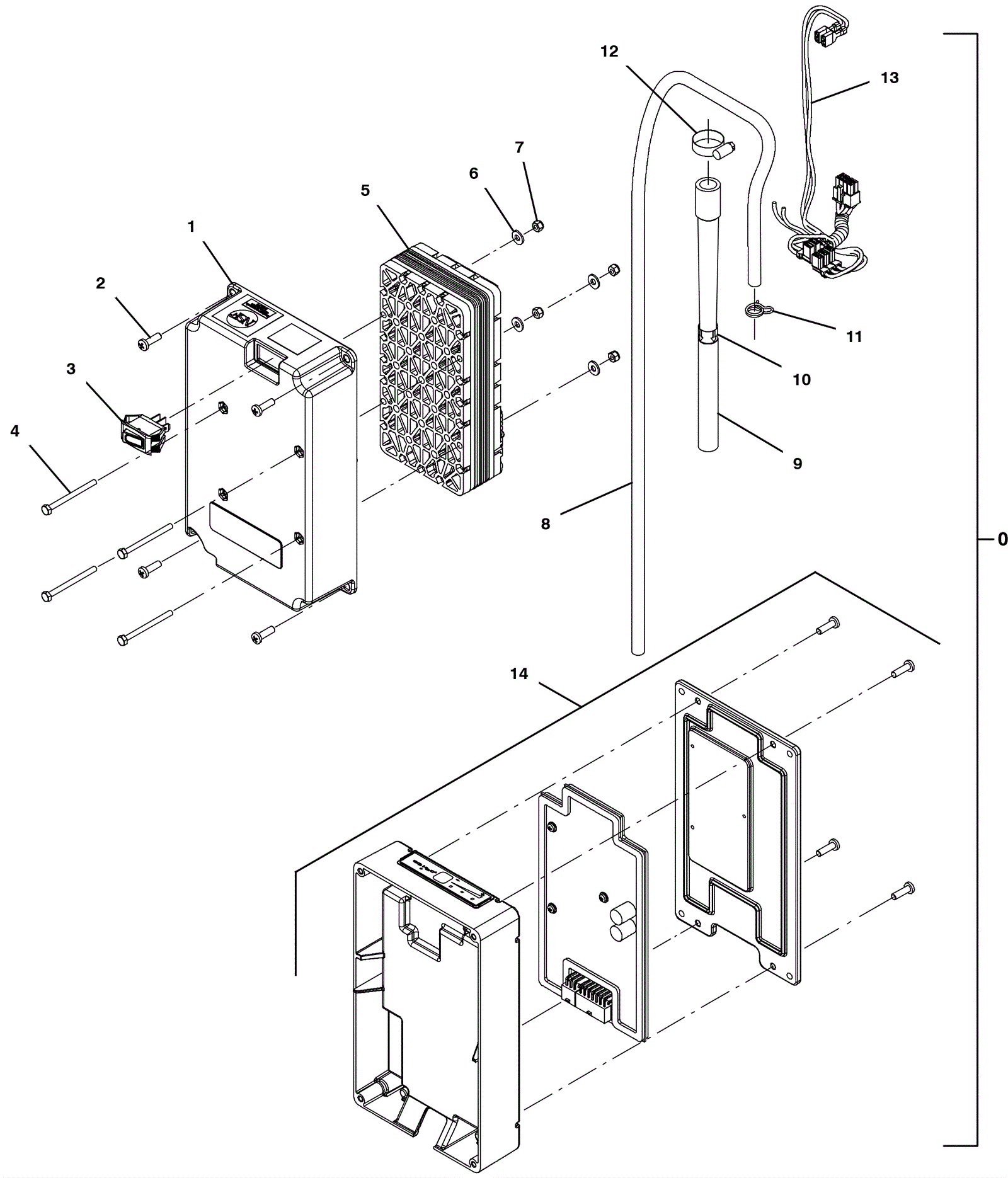

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-0142
|
ec-H2O module kit |
1 |
(after 9/2022) (includes 1a-4, 5a, 6-14) (includes ec-H2O NanoClean cartridge) |
|
1a |
375-0280
|
ec-H2O Kit (plumbing) |
1 |
(after SN 10740597) (includes 1b-4, 5a, 6-13) |
|
1b |
375-0281
|
Upper ec-H2O module housing |
1 |
(after SN 10740597) |
|
2 |
275-8168
|
Screw M5 x 16mm pan head |
4 |
(after SN 10740597) |
|
3 |
275-4773
|
Rocker switch |
1 |
(after SN 10740597) |
|
4 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
4 |
(after SN 10740597) |
|
5a |
375-9400
|
5 plate electrode |
1 |
(after SN 10998255) (before 10/2022) |
|
5b |
375-0282
|
High flow 5 plate electrode |
1 |
(between SN 10740598 and SN 10998255) |
|
6 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
(after SN 10740597) |
|
7 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
(after SN 10740597) |
|
8 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
(after SN 10740597) |
|
9 |
375-0283
|
Molded hose |
1 |
(after SN 10740597) |
|
10 |
275-5731
|
Direction decal |
1 |
(after SN 10740597) |
|
11 |
175-5304
|
Hose clamp |
1 |
(after SN 10740597) |
|
12 |
175-6081
|
Hose clamp |
1 |
(after SN 10740597) |
|
13 |
375-0284
|
B2 module harness |
1 |
(after SN 10740597) |
|
14 |
375-9401
|
Replacement controller kit |
1 |
(after SN 10998255) (before 10/2022) (includes ec-H2O NanoClean cartridge) |
|
