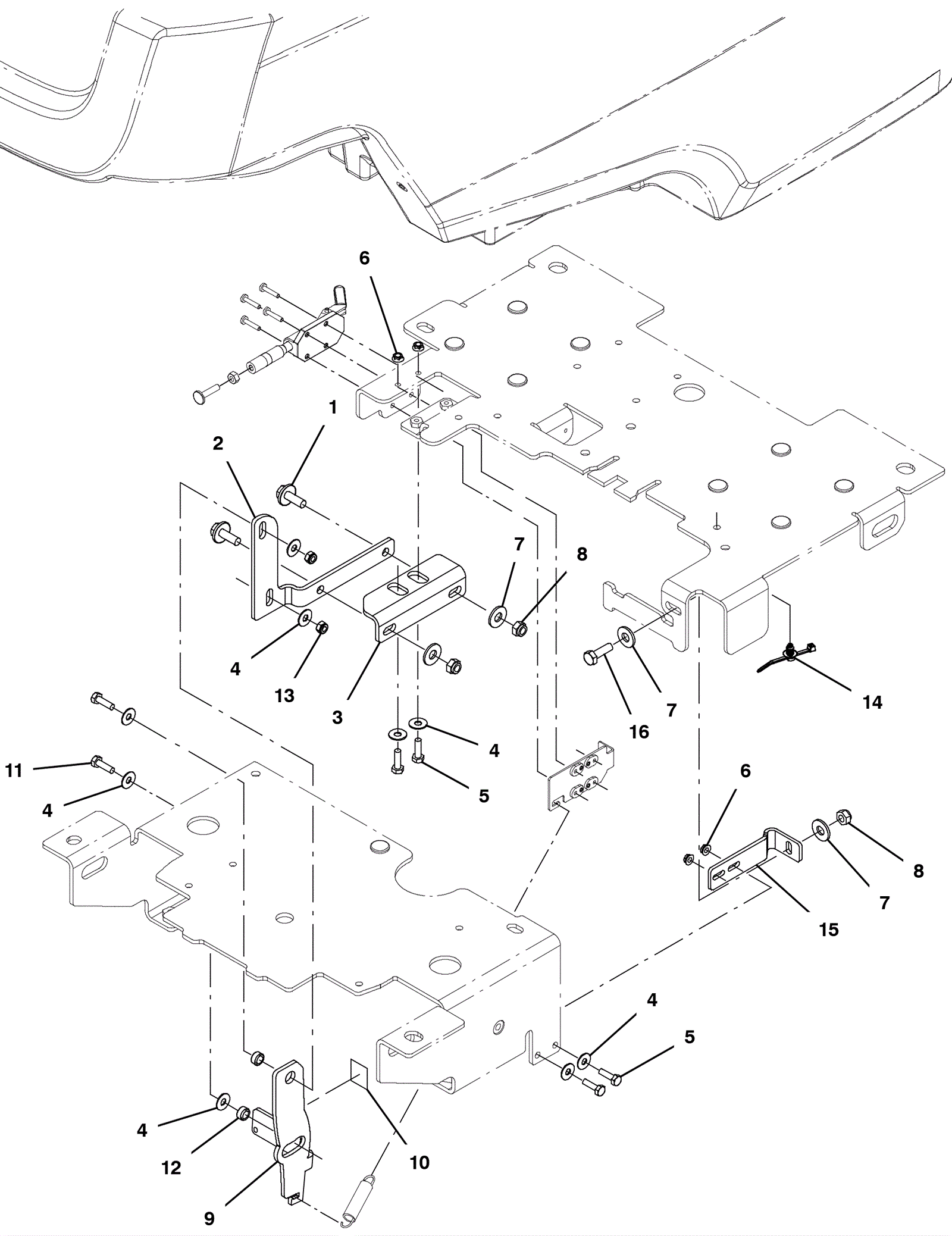

T500 Solution Tank Support Bracket Assembly - Before SN 11064202

#PartDescriptionPriceReqNotesAvailability
0 375-2554 Solution tank support kit $159.94 1 (includes 1-16) usually ships 5-16 days
1 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 2 ships same day
2 375-2555 Spanning bracket $42.35 1 usually ships 5-16 days
3 375-2556 Spanning bracket $38.83 1 usually ships 5-16 days
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
5 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
6 275-5085 Nut M6-1 x 16 hex head stainless steel $2.42 4 ships same day
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 usually ships 11-24 days
9 375-2553 Parking shoe brake $39.93 1 usually ships 5-16 days
10 375-3359 Parking brake decal $33.00 1 usually ships 5-16 days
11 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 2 ships same day
12 175-0550 Sleeve $3.74 2 (existing part - not included in upgrade kit 375-2554) ships same day
13 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
14 275-5197 Fir tree clip $1.65 1 usually ships 5-16 days
15a 375-2546 Spanning bracket $40.70 1 usually ships 5-16 days
15b 375-2557 Old frame spanning bracket $41.36 1 usually ships 5-16 days
16 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
