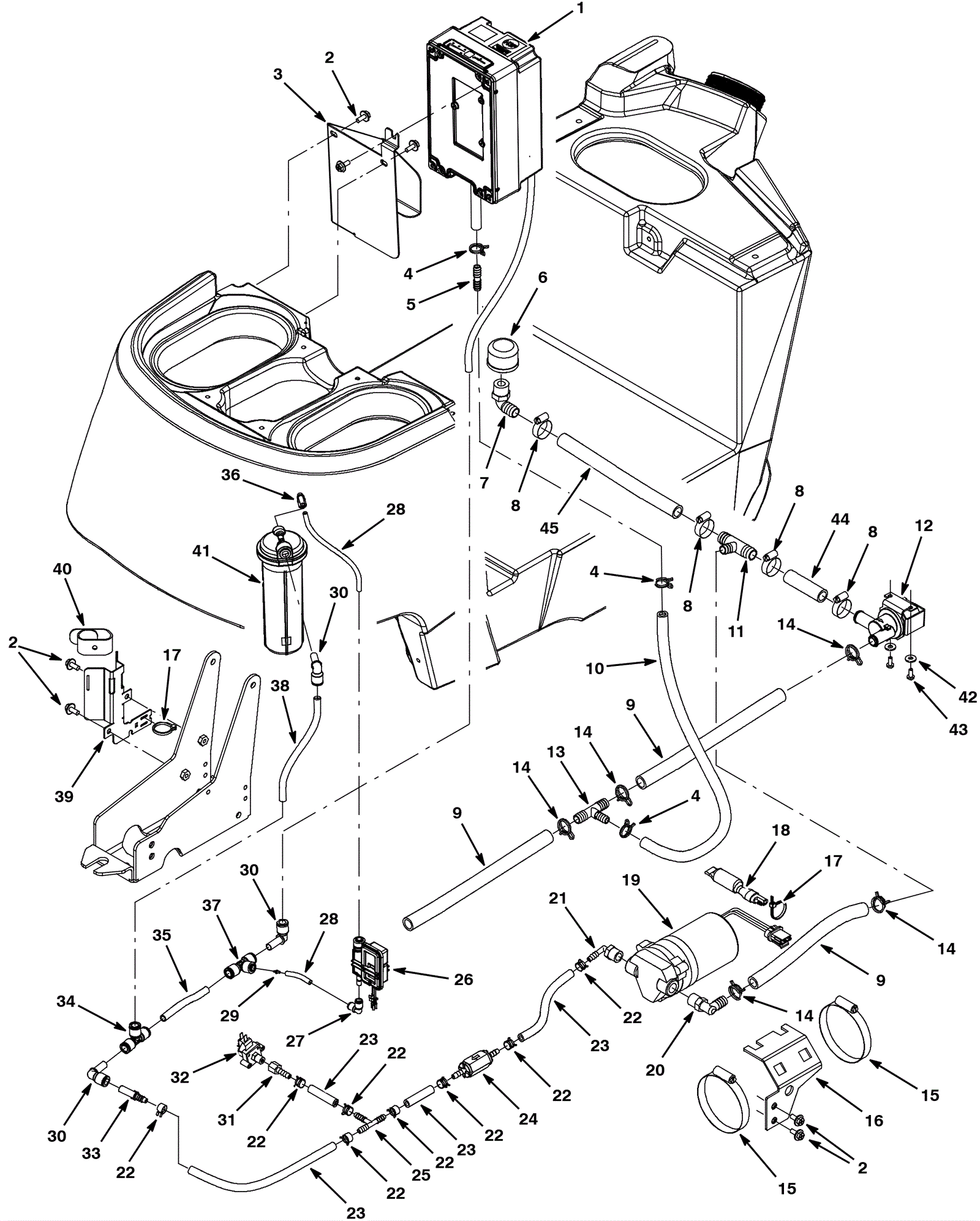

Solution Assembly - ec-H20 Model - After SN 10742212

#PartDescription ReqNotesAvailability
1 375-0142 ec-H2O module kit 1
2 999-1383 Screw M6-1 x 16mm hex head stainless steel 7
3 275-4983 Mounting bracket 1
4 175-3671 Hose clamp 3
5 275-8703 Straight plastic fitting (Tennant Industrial) 1
6 175-7832 Mesh filter screen stainless steel 1
7 175-4744 90 degree elbow fitting 1
8 175-6081 Hose clamp 4
9 275-1454 12 inch vinyl hose 1
10 275-1534 3 foot PVC hose (braided) (Tennant Industrial) 1
11 275-1455 Tee fitting 1
12a 275-1526 24V solution solenoid valve 1
12b 991-9173 24V solenoid valve (NON-OEM)
13 175-4810 Tee fitting 1
14 375-0291 Hose clamp 6
15 997-2009 Hose clamp 2
16 275-1535 Pump mounting bracket 1
17 175-7795 Cable tie 2
18 275-4752 Capacitor plug 1
19 275-4753 24V solution pump 1
20 175-3685 90 degree elbow fitting 1
21 275-2390 90 degree fitting 1
22 175-1656 Hose clamp 8
23 375-1137 Hose 1
24 375-1295 Check valve 1
25 175-7303 1/4 inch union tee 1
26 375-0146 Dispenser pump assembly 1
27 375-1297 Plastic fitting 1
28 375-1296 PVC hose (green) 1
29 375-0149 Straight orifice fitting 1
30 375-0075 90 degree elbow 3
31 175-3529 Brass fitting 1
32 275-4760 Press switch 1
33 375-1138 Plastic fitting 1
34 375-0076 Plastic tee fitting 1
35 175-9691 Hose 1/4 x 1 foot (Tennant Industrial) 1
36 375-0079 90 degree elbow 1
37 375-0148 Plastic tee fitting 1
38 375-1298 PVC hose (green) 1
39a 375-1299 Ec-H20 mounting bracket 1 (disk)
39b 375-1300 Ec-H20 mounting bracket 1 (cylindrical)
40 275-7799 Fastener 1
41 375-0144 Nanoclean cartridge 1
42 999-0998 Washer #10 flat stainless steel 2
43 999-1225 Screw M5-.8 x 12mm pan head phillips zinc 2
44 275-9404 2 foot hose (clear) 1
45 375-1414 3 inch clear vinyl tubing 1
