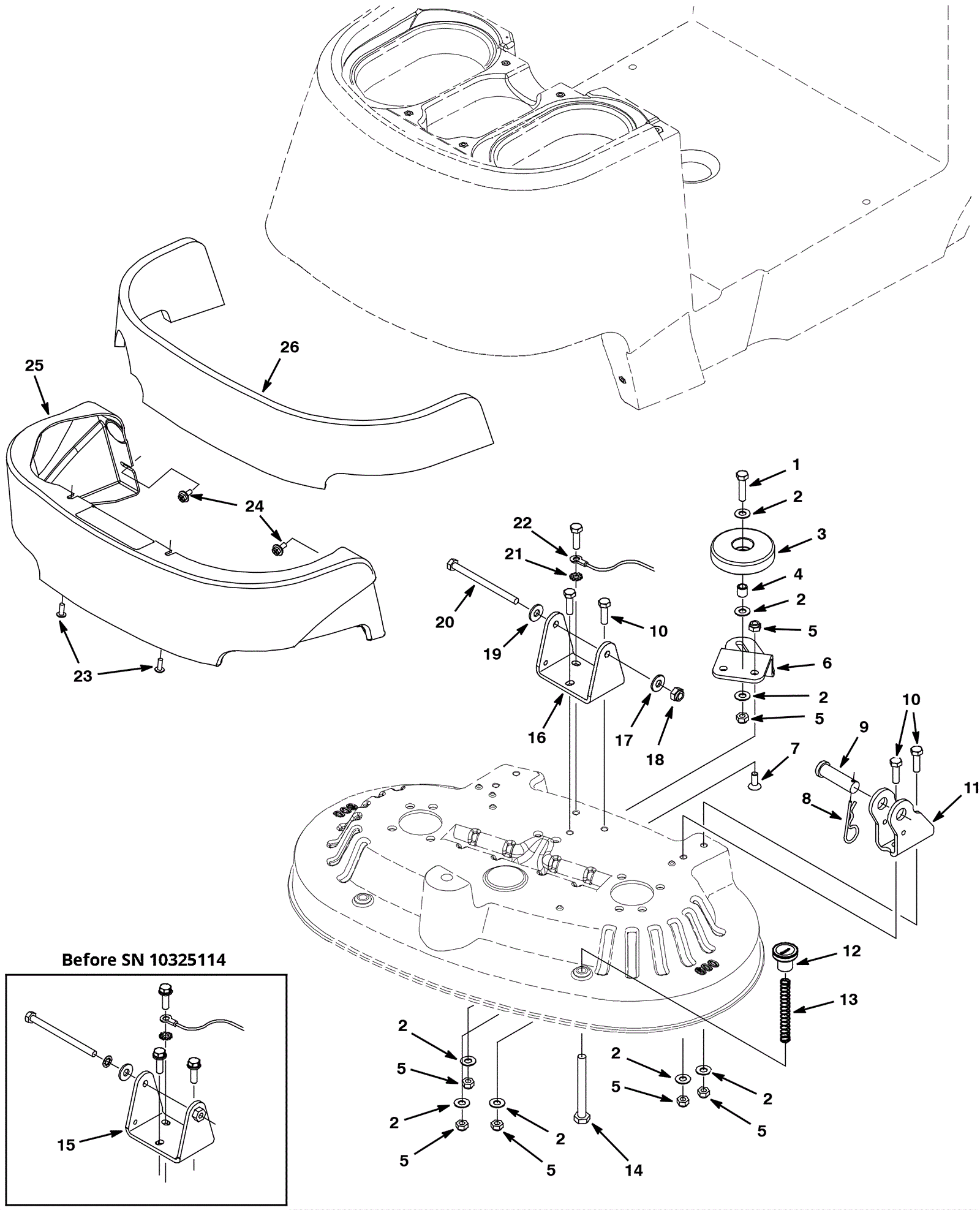

T5 Scrub Head Mounting Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
2 999-0024 Washer 5/16 flat stainless steel $1.34 10 ships same day
3 175-7919 Guide wheel $4.95 1 ships same day
4 175-2249 Sleeve $3.08 1 ships same day
5 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 10 usually ships 11-24 days
6a 275-1461 Right hand roller bracket $54.45 1 usually ships 5-16 days
6b 275-1479 Left hand roller bracket $54.45 1 usually ships 5-16 days
7 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
8 175-2106 Cotter hair pin $3.30 2 ships same day
9 175-2105 Clevis pin $6.60 2 ships same day
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 7 ships same day
11 275-1462 Bracket $71.17 2 usually ships 5-16 days
12 275-1369 Knob M10 thread knurled $11.11 2 usually ships 5-16 days
13 175-7018 Compression spring $4.95 2 ships same day
14 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 2 ships same day
15 N/A Not available Call for price 1 (bracket assembly) (replaced by 16-18) (before SN 10325114) usually ships 3-26 days
16 275-4729 Roller bracket $46.64 1 (after SN 10325113) usually ships 1-5 days
17 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 (after SN 10325113) ships same day
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 (after SN 10325113) usually ships 11-24 days
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
20 275-1474 Screw M8-1.25 x 110mm hex head (Tennant Industrial) $7.35 1 ships same day
21 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
22 275-1439 Wire 12 gauge x 250mm $11.88 1 usually ships 1-5 days
23 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
24 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
25 275-1475 Scrub head cover kit (OBSOLETE) $372.13 1 (includes 26) usually ships 5-16 days
26 275-1476 Front sound insulation $35.09 1 usually ships 5-16 days
