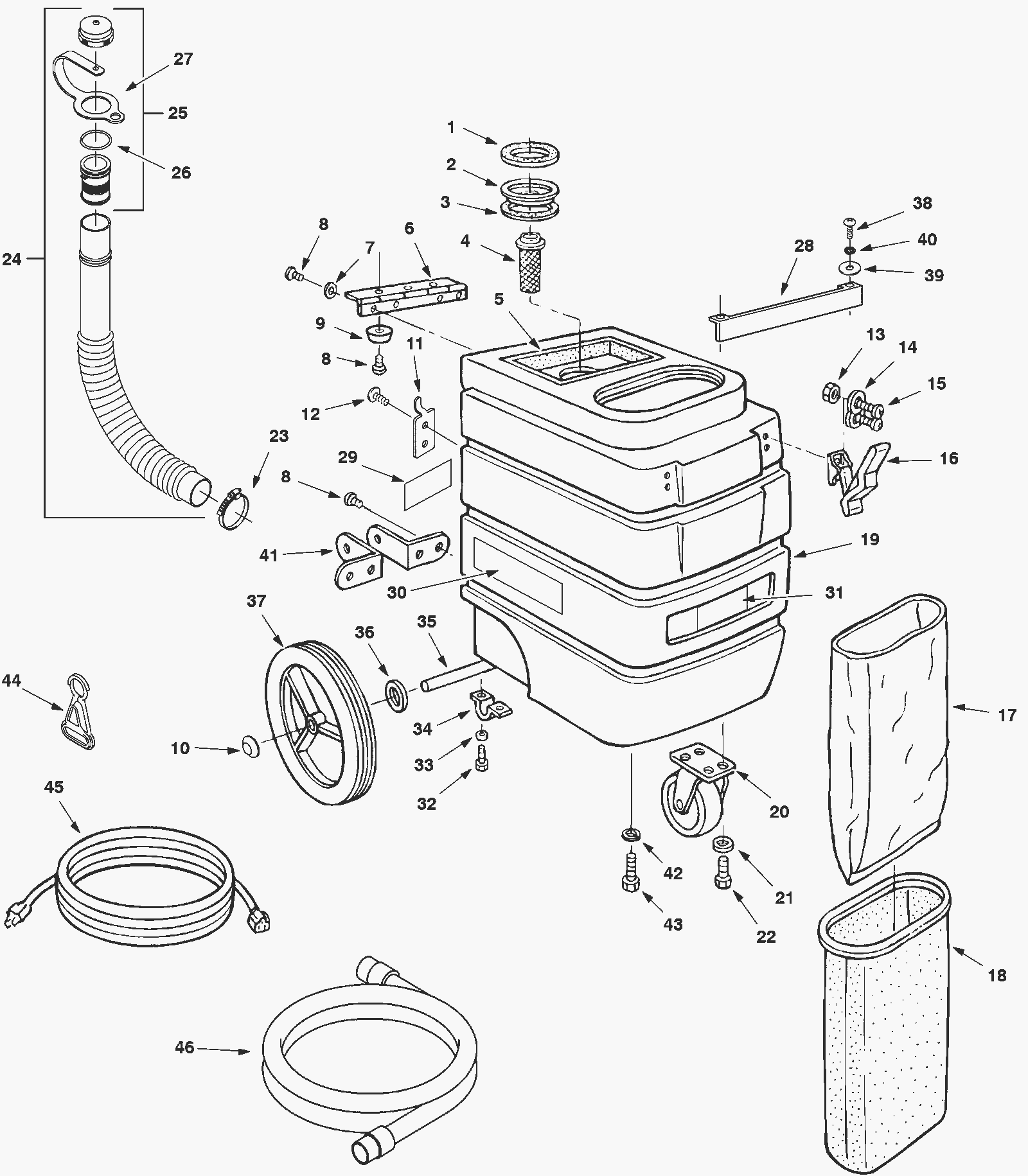

Tank Assembly

#PartDescription ReqNotesAvailability
1a 175-9013 Float gasket 1
1b 175-1546 Float gasket (OBSOLETE) 1
2a 175-1548 Float plate 1
2b 175-1549 Float plate 1
3a 175-9013 Float gasket 1
3b 175-1547 Float gasket (OBSOLETE) 1
4 675-9887 Shut-off float 1
5 175-9015 Tank foam 1
6 175-1550 Hinge 1
7 999-0016 Washer 1/4 flat plain finish 5
8 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 11
9 175-1555 Bumper 2
10 175-6097 Hub cap 2
11 175-5549 Drain hose hanger bracket 1
12 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
13 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
14 999-0393 Washer 3/16 flat aluminum 4
15 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4
16 375-7802 Latch 2
17 175-1531 Paper bag (pkg of 10) 1
18 175-1532 Cloth filter bag 1
19 275-5856 15 gallon tank (teal) 1
20 175-0888 4 inch swivel caster wheel 1
21 999-0553 Washer 5/16 medium split lock stainless steel 4
22 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
23 997-2000 Hose clamp 1
24 175-1535 Drain hose assembly 1 (includes 25-27)
25 175-4214 Drain plug assembly 1 (includes 26-27)
26 175-5804 O-ring 1
27 175-4214 Drain plug assembly 1
28 175-1556 Tank support bracket 1
29 175-9495 Warning decal 1
30a 275-5857 3500 side decal (OBSOLETE) 2
30b 275-5858 3520 side decal (OBSOLETE) 2
31 175-0147 Tennant decal 1
32 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
33 999-0632 Washer 1/4 split lock stainless steel 4
34 175-6098 Axle bracket 2
35 175-5547 Axle 1
36 999-0187 Washer 1/2 flat plain finish 2
37 175-1621 10 inch wheel (gray) 2
38 999-1214 Screw 1/4-20 x 3/4 truss head slotted stainless steel 2
39 999-1119 Washer 1/4 x 1 fender zinc plated 2
40 175-4544 Washer M6 locking 2
41 175-1551 Bracket 2
42 999-0034 Washer 3/8 split lock plain finish 2
43 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
44 175-0236 Cord belt clip 1
45 175-6091 16/3 extension cord 50 foot (yellow) 1
46 175-2635 Vacuum hose 1 1/2 x 10 foot 1
