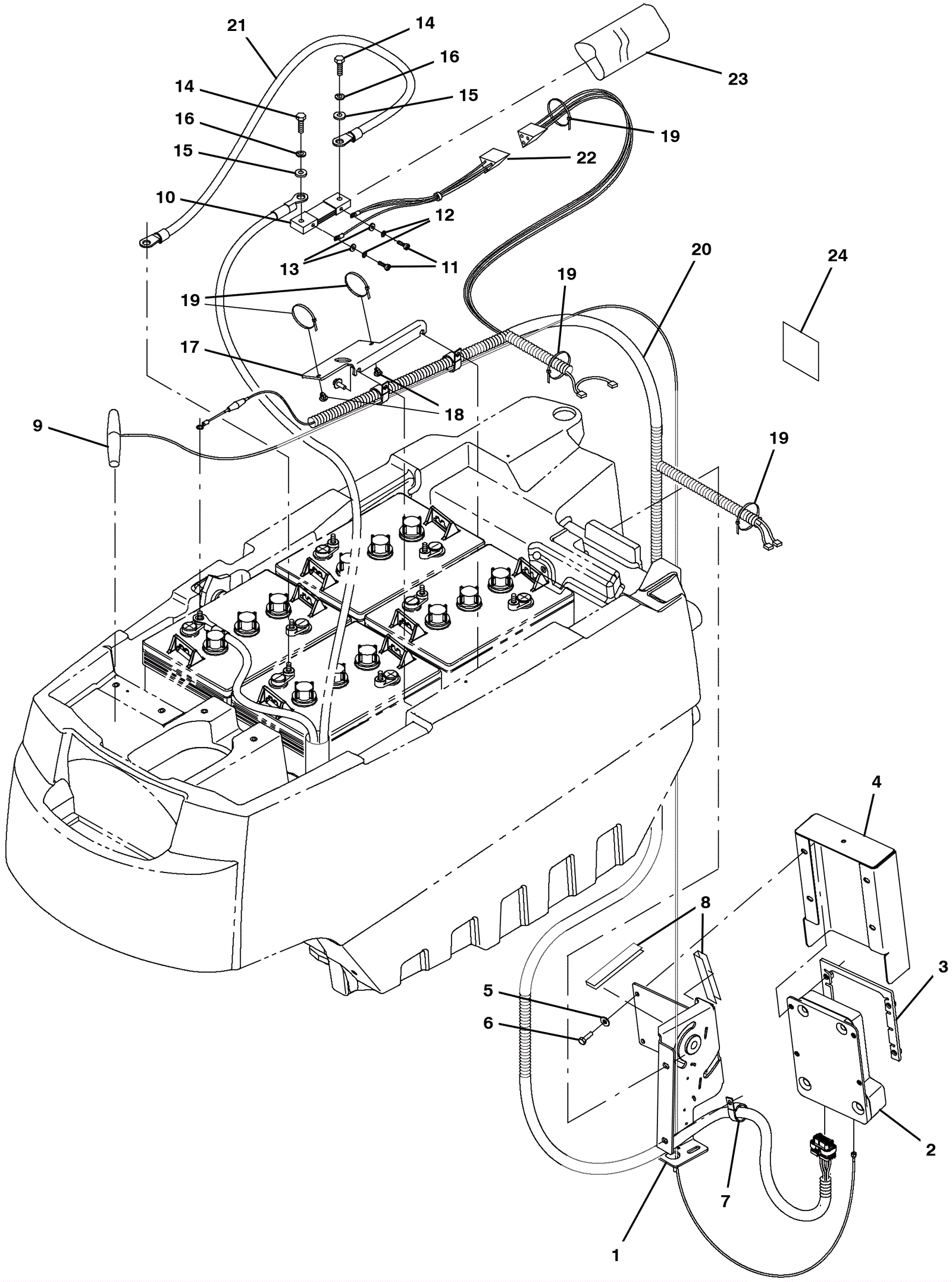

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1307
|
Lift weldment bracket |
1 |
|
|
2 |
275-2615
|
Telemetry control box assembly kit |
1 |
|
|
3 |
375-1308
|
Control box guard weldment |
1 |
|
|
4 |
375-1309
|
Guard cover |
4 |
|
|
5 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
6 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
7 |
175-4629
|
P clamp |
1 |
|
|
8 |
175-8827
|
Foam gasket |
2 |
|
|
9 |
275-7897
|
Antenna |
1 |
|
|
10 |
375-1151
|
Shunt |
1 |
|
|
11 |
175-3370
|
Screw M4-.7 x 8mm pan head stainless steel |
2 |
|
|
12 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
13 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
14 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
15 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
16 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
17 |
375-1310
|
Shunt bracket |
1 |
|
|
18 |
275-7625
|
Plastic clip |
2 |
|
|
19 |
175-7795
|
Cable tie |
10 |
|
|
20a |
375-1304
|
Telemetry wire harness |
1 |
(includes 20b) |
|
20b |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
21 |
998-0010
|
Battery jumper cable - ring type (red) |
1 |
|
|
22 |
375-1154
|
Shunt wiring harness |
1 |
|
|
23 |
375-1155
|
Heatshrink sleeve |
1 |
|
|
24 |
275-7899
|
Telemetry decal |
1 |
|
|
